TXT Fleet, Year 1997

Accelerator

1997 Electric 1_Accelerator

1997 Electric 1_Accelerator _2

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Pedal box assembly25870-G03includes items 3-32, 36-401
2Pedal box assembly, DCS model only25870-G05includes items 3-29, 32-401
3Lock nut00550-G21/4 - 281
4Lock nut00532-G45/16 - 241
5Screw00684-G6#8 - 32 x 3/4" LG 4
6Screw00982-G01#4 - 14 x 5/8" LG 2
8Self threading nut00983-G012
9Screw00984-G01#8 - 10 x 1/2" LG 4
10Setscrew00486-G2#8 - 32 x 1/8" LG 1
11Pushnut00986-G0119/64" I.D.1
12Yoke10385-G4Adjustable1
13Clevis pin10386-G35/16" x 15/16" LG 1
15Cotter pin10387-G33/32" x 3/4" LG 1
16Spring retainer17677-G11
17Spring retainer17677-G21
19Accelerator rod bushing17979-G11
20Accelerator pedal assembly25799-G01includes items 21 -241
21Accelerator pedal pad kit27844-G01includes items 22, 231
22Oval rivet15766-G13/8" x 15/32" LG 6
23Accelerator pedal pad27512-G011
24Accelerator pedal*1
26Pedal box and cover25853-G01Seal and bearing1
28Inductive throttle sensor25854-G011
29Accelerator rod25859-G011
30Micro switch25861-G011
31Wiring harness25879-G03Pedal box assembly1
32Plunger26551-G011
33Micro switch25861-G02DCS model only1
34Plunger cam26969-G011
35Wiring harness25879-G04Pedal box assembly, DCS model only1
36Pedal bracket70116-G011
37Pin70134-G011
38Teflon washer17255-G11/32" x 5/8"1
39Compression spring73045-G011
40Bushing17838-G13
42Bolt00715-G25/16 - 18 x 5/8" LG 4
43Pedal pivot cover70135-G011

Battery Charger

1997 Electric 2_Battery Charger

1997 Electric 2_Battery Charger_2

1997 Electric 2_Battery Charger_3

1997 Electric 2_Battery Charger_4

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Powerwise charger28115-G01includes items 3-671
2Powerwise + charger28115-G02includes items 3-63 and 69-711
3Chassis*1
4Screw00513-G6#8 - 18 x 1 3/4" LG 2
5Washer00559-G4#810
6Plastic expansion nut11572-G32
7Heat sink28104-G011
8Screw00138-G3#6-32 x 3/8" LG 2
9Washer00559-G3#62
10Lock washer00567-G3#62
11Nut00525-G5#6 - 322
12Diode18488-G11
13Washer00565-G7Lock 1/42
14Nut00532-G21/4 - 282
15Screw01005-G01#6 - 19 x 5/16" LG 3
16Washer00559-G3#63
17Control board support28111-G013
18Electrical clip28110-G011
19Screw00614-G4#8 - 18 x 1/2" LG 6
20Cover*1
21Handle28102-G011
22Label28136-G01Ventilation1
23Label28136-G02Cord condition1
24Capacitor bracket26979-G011
25Capacitor28109-G011
26Screw00969-G01#8 - 32 x 3/8" LG 3
27Screw00414-G51/4 - 20 x 5/8" LG 3
28Lock nut11027-G21/4 - 203
29AC cord19388-G41
30Strain relief13557-G2AC1
31Strain relief13557-G3DC1
32DC plug assembly28137-G01includes items 33-421
33Plug73051-G11Top half1
34Plug73051-G12Bottom half1
35Auxilary contact73051-G131
36DC cord28114-G011
37Male pin73051-G142
38Brass screw73051-G08#10 - 32 x 1/2" LG 2
39Magnet73051-G151
40Screw73051-G16#6 - 32 x 1/2" LG (Stainless steel)2
41Lock nut73051-G10#6 - 324
42Screw73051-G17#6 - 32 x 1" LG (Stainless steel)2
45Ammeter28105-G011
46Screw00984-G01#8 - 10 x 1/2" LG 2
47Washer00559-G4#82
48Brass washer01003-G01#104
49Shoulder washer22589-G21
50Nylon washer00771-G61
51Nut00528-G4#10 - 323
5250 AMP fuse28106-G011
53Lock washer00565-G5#104
54Screw00378-G4#10 - 24 x 1/2" LG 2
55Nut00526-G3#10 - 242
56Transformer28103-G011
57Spacer support27877-G014
58Wire tie17618-G12
60Screw00372-G3#8 - 32 x 3/8" LG 1
61Wire25977-G324"1
62Lock washer00565-G4#81
63Nut00526-G1#8 - 321
65Label*Powerwise1
66Control board28126-G01Powerwise1
67Power input board28126-G03Powerwise1
69Label*Powerwise+1
70Control board28126-G02Powerwise +1
71Power input board28126-G04Powerwise +1

Body

1997 Electric 3_Body

1997 Electric 3_Body _2

1997 Electric 3_Body _3

1997 Electric 3_Body _4

1997 Electric 3_Body _5

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Instrument panel assembly71151-G01includes items 2-51
2Ball deflector71153-G01Passenger side1
3Ball deflector71154-G01Driver side1
4Screw00614-G5#8 - 18 x 5/8" LG 6
5Instrument panel insert71158-G014 cup holder1
7Label27647-G01Safety1
8Serial number plate*1
9EC plate*1
11Cowl71051-G**1
12Rivet71055-G013/16" x 3/8" LG 7
13Screw00740-G4#10-32 x 1/2" LG 4
14Nut00921-G8#10 - 324
15Rivet14601-G135/32" x 9/16" LG 2
16E-Z-GO nameplate19817-G21
17Pushnut12064-G33/16"2
18Rivet10570-G113/16" x 3/4" LG 2
19Bolt71056-G015/16 - 18 x 5/8" LG 4
20Washer00570-G25/16"4
21Bolt00438-G65/16 - 18 x 3/4" LG (with top)2
22Washer00571-G25/16" (with top)2
23Vinyl trim71115-G012
25Splash panel assembly71143-G01includes items 26-291
26Panel*1
27Stay bracket*2
28Panel bracket*1
29Rivet*5/32" x 9/16" LG9
31Upper floorpan70047-G011
32Rivet14601-G115/32" x 9/16" LG 10
33Ratchet fastener16816-G21
35Front shield27166-G021
36Front shield brace71015-G012
37Fastener16816-G22
38Screw00114-G61/4 - 14 x 3/4" LG 4
39Washer16469-G71/4"2
41Floormat70048-G011
42Lower floorpan70451-G011
43Rivet14601-G135/32" x 9/16" LG 10
44Switch access cover70452-G011
45Rivet14601-G113/16" x 9/16" LG 6
47Rocker panel71501-G01Passenger side1
48Rocker panel71502-G01Driver side1
49Sill plate71507-G01Passenger side1
50Sill plate71507-G02Driver side1
51Screw16705-G11/4 - 20 x 1" LG (Stainless steel)4
52Spacer23726-G44
53Lock nut00891-G21/4 - 204
54Spacer23726-G61
55Rivet15058-G42
56Spacer23726-G71
59Seat frame70318-G021
60Battery rack70046-G011
61Bolt00715-G25/16 - 18 x 13/16" LG 5
62Bolt00438-G65/16 - 18 x 3/4" LG 2
63Washer00559-G85/16"2
64Lock nut11098-G65/16 - 182
65Torx screw70200-G013/8 - 162
67Rear body71301-G**Without taillights1
68Rear body71310-G**With taillights1
69Fender scuffguard75126-G01Driver side1
70Fender scuffguard75126-G02Passenger side1
71Ratchet fastener16816-G28
72Access panel71320-G011
73Screw71002-G01#8 x 5/8" LG 5
74"J" clip71364-G021
78Ratchet fastener16816-G126
79Bagwell liner71318-G011
80Rivet18436-G11/4" x 3/4" LG 2
81Rivet10570-G105/32"6
82Notched rear bumper71456-G014 caddy1
83Rear bumper71451-G011
84Bumper plug71455-G014
85Bolt71398-G011/4 - 20 x 1 1/4" LG 4
86Washer00571-G25/16"4
87Ratchet fastener16816-G42
89Hinge plate71609-G012
90Rivet10570-G113/16" x 3/4" LG 4
91Rivet10570-G121/4" x 1/2" LG 4
93Decal23676-G1FreedomAR
94Decal75178-G014 caddyAR
95Decal73162-G01DCSAR
97Splash panel70244-G022
98Bolt00715-G25/16 - 18 x 13/16" LG 4
100Fender liner, extended 71551-G05Passenger side1
101Fender liner, extended 71552-G05Driver side1
102Ratchet fastener16816-G212
103Ratchet fastener16816-G28
106Foot rest assembly70361-G01includes items 107 -1101
107Footrest70350-G011
108Floormat70362-G011
109Reflector74129-G011
110Label74132-G01Warning1
111End plug19853-G12
112Valance panel74149-G011
113Plastic rivet16816-G24
114Bolt00426-G83/8 - 16 x 1" LG 2
115Vertical frame support74126-G01Passenger side1
116Vertical frame support74126-G02Driver side1
117Bolt00427-G43/8 - 16 x 1 1/2" LG 2
118Washer00560-G13/8"10
119Carriage bolt00769-G23/8 - 16 x 1 1/4" LG 2
120Lock nut11098-G53/8 - 1610

Brakes

1997 Electric 4_Brakes

1997 Electric 4_Brakes _2

1997 Electric 4_Brakes _3

1997 Electric 4_Brakes _4

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Brake pedal assembly70263-G01includes items 2-26, Vehicles with brake lights 1
2Brake pedal*1
3Park brake pedal*1
4Brake/Park brake pedal pad kit70274-G01Includes items 5-71
5Service brake cable pad*1
6Park brake pad*1
7Rivet15766-G13/8 x 15/32" LG 9
9Service brake pedal plate*1
10Pivot pin15932-G21
11Torsion spring11737-G12
12Pushnut12064-G15/16"1
13Screw00737-G8#10 - 24 x 1" LG 4
14Rubber nut00739-G1#10 - 242
15Brake pedal standoff22362-G32
16Conical spring27137-G012
17Lock nut11098-G7#10 - 242
18Micro switch10606-G81
19Screw00645-G2#6 - 32 x 1 1/4" LG 2
20Washer00559-G3#62
21Lock washer00565-G3#62
22Nut00525-G5#6- 322
23Brass screw*2
24Lock washer00567-G3#66
25Faston tab14628-G15/16" x 5/16" LG2
26Wire tie17618-G13
30Brake pedal assembly70264-G01Includes items 31-39, Vehicles without brake lights 1
31Torsion spring11737-G12
32Pivot pin15932-G21
33Pushnut12064-G15/16"1
34Service brake pedal*1
35Park brake pedal70265-G011
36Brake/Park brake pedal pad kit70274-G01Includes items 37-391
37Service brake pedal pad*1
38Park brake pedal pad*1
39Rivet15766-G13/8" x 15/32" LG 9
41Shoulder bolt70096-G013/8 - 16 x 3" LG 1
42Flanged bushing11079-G12
43Torsion spring70138-G011
44Washer00643-G13/8"1
45Nut11098-G53/8 - 161
47Compensator assembly70272-G04includes items 48 - 561
48Linkage rod25882-G041
49Nut00532-G45/16 - 242
50Yoke*1
51Compression spring23463-G11
52Tube23061-G21
53Bushing17979-G11
54Washer15121-G13/8"2
55Spherical nut00963-G015/16 - 241
56Lock nut11098-G95/16 - 241
58Equalizer and brake cable assembly70273-G03includes items 59 - 621
59Equalizer bracket28082-G011
60Brake compensator bumper28083-G012
61Brake cable*Passenger side1
62Brake cable*Driver side1
64Retaining ring12305-G14
65Wire tie12416-G22
66Clevis pin10386-G35/16" x 15/16" LG 3
67Cotter pin10387-G33/32" x 3/4" LG 5
70Kick-off link70097-G011
71Flanged bearing17838-G12
72Teflon washer20835-G12
73Washer00559-G85/16"2
74Cotter pin10387-G33/32" x 3/4" LG 2
75Kick off cam pivot70096-G011
76Flanged bearing10097-G62
77Kick-off cam25103-G11
78Setscrew with patch lock71215-G011/4 - 20 x 1/2" LG 2
79Spacer14134-G41
81Adjustable bumper70113-G011
82Lock nut11027-G15/16 - 181
84Catch bracket70080-G011
85Bolt00414-G61/4 - 20 x 3/4" LG 2
86Lock nut11027-G21/4 - 202
88Driver side brake assembly27942-G01includes items 90 - 971
89Passenger side brake assembly27942-G02includes items 90-971
90Brake shoe kit27945-G01includes item 912
91Brake shoe*2
92Brake spring kit27944-G01includes items 93-972
93Upper spring*1
94Lower spring*1
95Pin*2
96Cup and spring*2
97Adjuster spring*1
98Bolt17803-G25/16 - 24 x 1" LG 8
99Lock nut15126-G15/16 - 248
100Inner brake drum washer21809-G12
101Brake drum assembly21807-G1includes items 102 - 1032
102Brake drum*1
103Lug bolt19862-G14
104Spindle cap adapter24939-G22
105Outer brake drum washer21830-G12
106Slotted nut00518-G83/4 - 162
107Cotter pin10387-G12
109Spindle cap12091-G22
111Brake cable bracket72036-G01Passenger side1
112Brake cable bracket72036-G02Driver side1

Direction Selector

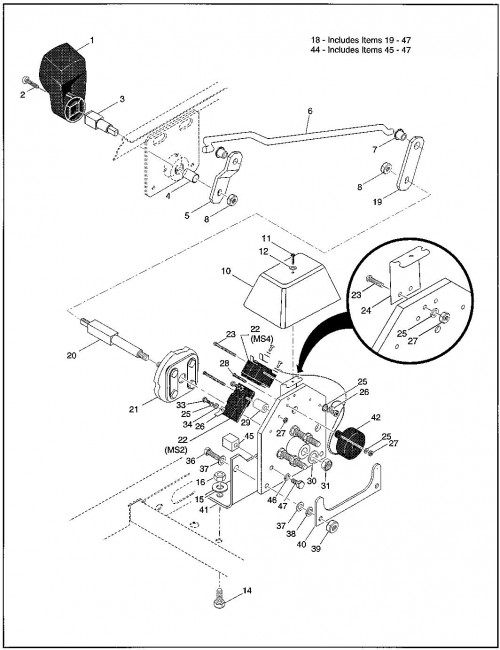

1997 Electric 5_Direction Selector

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Direction selector handle71905-G011
2Screw00740-G4#10 - 32 x 1/2" LG (Stainless steel)1
3Direction selector shaft70233-G011
4Bearing25664-G21
5Offset shift linkage arm70334-G011
6Linkage rod70313-G011
7Bushing22754-G32
8Lock nut14390-G13/8 - 242
10Direction selector cover73049-G011
11Screw00114-G61/4 - 14 x 3/4" LG 1
12Fender washer16469-G7Stainless steel1
14Bolt00438-G65/16 - 18 x 3/4" LG 2
15Washer00571-G25/16"2
16Lock nut11098-G65/16 - 182
18Direction selector assembly73036-G01includes items 19 - 471
19Shift linkage arm70232-G011
20Direction selector shaft73027-G011
21Cam12835-G11
22Micro switch10606-G2MS2 and MS42
23Screw00139-G8#6 - 32 x 2" LG 4
24Cover bracket73048-G011
25Lock washer00565-G3#68
26Faston tab14628-G15/16" x 5/16"4
27Nut00525-G5#6 - 328
28Screw00138-G6#6 - 32 x 3/4" LG 3
29Spacer12806-G14
30Washer00560-G13/8"1
31Lock nut14390-G13/8 - 242
33Screw*4
34Lock washer00567-G3#64
36Bolt00414-G81/4 - 20 x 1" LG 2
37Washer00559-G71/4"4
38Lock washer00565-G71/4"2
39Nut00532-G11/4 - 202
40Support bracket15461-G11
41Direction selector mounting bracket73031-G011
42Reverse warning buzzer73037-G011
44Contact board assembly14651-G1includes items 45 - 471
45Stop24940-G12
46Lock washer00565-G71/4"2
47Bolt00414-G61/4 - 20 x 3/4" LG 2

Electronic Speed Control

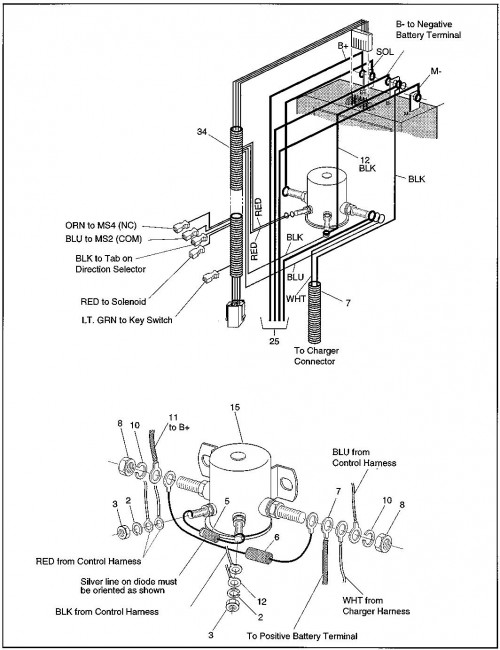

1997 Electric 7_Electronic Speed Control

1997 Electric 7_Electronic Speed Control _2

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Electronic speed control assembly73056-G04includes items 2 - 311
2Lock washer*#102
3Nut*10 - 322
5Diode30353-G13 AMP1
6Resistor21764-G11
7Wire harness73103-G02Control1
8Nut*5/16 - 242
10Lock washer*5/16"2
11Wire25972-G02SOL- B+1
12Wire25978-G10SOL- B-1
13Nut11027-G21/4 - 202
15Solenoid27855-G0136 volt1
16Heatsink73026-G011
17Electronic speed controller25864-G021
18Thermal mounting pad73190-G011
19Bolt71102-G011/4 - 20 x 3/4" LG 2
20Cover73028-G011
21Wire tie31539-G11
22Mount73053-G011
24Bolt71102-G011/4 - 20 x 3/4" LG 3
25Wire harness73039-G02Power1
27Bolt00270-G55/16 - 18 x 5/8" LG 4
29Nut11027-G15/16 - 184
31Solenoid bracket25866-G011
33Bolt71102-G011/4 - 20 x 3/4" LG 4
34Wire harness73040-G01Control1

Electronic Speed Control – HD

1997 Electric 9_Electronic Speed Control - HD

1997 Electric 9_Electronic Speed Control - HD _2

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Electronic speed control assembly73055-G02for use on freedom vehicles only, includes items 2-281
2Lock washer*#102
3Washer*5/16"2
5Diode30353-G11
6Resistor21764-G11
7Wire harness28325-G01Charger connector1
8Nut*5/16 - 242
9Nut*#10 - 322
10Washer00559-G71/4"2
11Wire25978-G88From sol1
12Wire25972-G02SOL- B+1
13Wire25978-G10From sol1
14Nut11027-G21/4 - 206
16Solenoid20468-G11
18Electronic speed controller73060-G011
19Lock nut11027-G15/16 - 184
21Controller mount74014-G011
24Screw00414-G51/4 - 20 x 5/8" LG 4
26Wire harness73095-G02Power1
28Bolt00270-G55/16 - 18 x 5/8" LG 4
30Cover23723-G21
31Washer16469-G19/32"1
32Wing nut14419-G11/4 - 201
34Screw00715-G21/4 - 20 x 5/8" LG 4
35Nut11027-G21/4 - 204

Electrical System

1997 Electric 10_Electrical System

1997 Electric 10_Electrical System _2

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Nut00702-G25/16 - 1812
2Battery interconnect wire25972-G3210 1/2" LG 1
3Battery interconnect wire25972-G406" LG4
4Lockwasher00565-G85/15"4
5Lock washer, silicon bronze00993-G015/16"4
6Nut, bronze28418-G015/16 - 184
7Nut00532-G35/16 - 184
8Charger receptacle wire harness assembly73051-G011
9Charger receptacle wire harness assembly73149-G01For use on dcs model only1
10Receptacle cover73051-G031
11Receptacle bottom73051-G041
12Female radsok73051-G052
13Insulator sleeve73051-G061
14Reed switch73051-G071
15Screw73051-G0810 - 32 x 1/2" LG 2
16Screw73051-G096-32 x 1 3/4" LG 3
17Lock nut73051-G103
18Rivet14601-G105/32" x 13/32" LG 4
19Wire tie17618-G13
20Wire25972-G32BL- TO B-1
23Harness73145-G01Key switch, DCS model only1
24Harness73041-G01Key switch, fleet1
25Lock washer00568-G63/4"1
26Ignition key17063-G1SetAR
27Face nut17137-G11
28Wire tie17618-G11
29Ignition switch kitXXXXX-XXincludes all mounting hardware, see section k - guages, horn and lighting for p/n1
30Drive rivet33623-G023/16" x 3/8" LG 2
32Wire tie17618-G11
35Motor wire25972-G6043" LG 1
36Motor wire25972-G3740 1/2" LG 1
37Motor wire25972-G5954 1/2" LG1
38Motor wire25972-G3845" LG1
40Battery rack70046-G011
41BatteryXXXXX-G**6 volt6
42Hold down bolt70121-G012
43Battery retainer70045-G011
44Lock nut11027-G15/16 - 182
46Cable clamp27327-G012
47Rivet10570-G115/16" (stainless steel)1

Electric Motor

1997 Electric 11_Electric Motor

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Motor, complete73124-G01DCS model, includes items 3-121
2Motor, complete73124-G02Includes items 3-11 and 141
3Armature*1
4Brush spring73120-G034
5Brush plate and box73120-G041
6Brush replacement kit73120-G05includes hardware1
7Cover commutator end73120-G081
8Cover plate & screw73120-G091
9Cap73120-G101
10Snap ring73120-G061
11Bearing73120-G071
12Field coil kit73120-G02includes hardware1
13Field coil kit73120-G11includes hardware1

Front Suspension

1997 Electric 12_Front Suspension

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Front axle70001-G011
2Shock absorber70324-G012
3Shock absorber washer10435-G18
4Rubber shock absorber bushing10194-G18
5Nut00532-G63/8 - 244
7Leaf spring70049-G012
8Bolt00463-G47/16 - 14 x 1 1/2" LG 6
9Spring plate70163-G024
10Lock nut00734-G17/16 - 1412
11Bolt00463-G67/16 - 14 x 1 3/4" LG 6
13Spindle pin70327-G011/2 - 13 x 5 1/2" LG 2
14Washer00571-G51/2"4
15Thrust washer16982-G157/64" I.D.2
16Spindle pin tube70328-G012
17Lock nut14390-G61/2 - 132
18Cotter pin10387-G23/32" x 1" LG 2
20Spindle assembly70220-G01Driver side, includes items 21 - 29
21Spindle*1
22Bearing16623-G12
23Grease fitting10389-G31
24Grease seal25146-G11
25Wheel hub assembly19932-G1includes items 26, 271
26Lug bolt19862-G11/2 - 20 x 1 7/32" LG 4
27Bearing and race assembly50892-G1Complete1
28Slotted nut12093-G11-141
29Cotter pin00798-G85/32" x 1 3/4" LG 1
30Spindle assembly70221-G01Passenger side, includes items 22-29 and 311
31Spindle*1
33Spindle cap12091-G022
34Lug nut14723-G11/2 - 208

Gauges Horn and Lighting

1997 Electric 13_Gauges Horn and Lighting

1997 Electric 13_Gauges Horn and Lighting _2

1997 Electric 13_Gauges Horn and Lighting _3

1997 Electric 13_Gauges Horn and Lighting _4

1997 Electric 13_Gauges Horn and Lighting _5

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Fuse block22674-G11
2Rivet71010-G015/32 x 3/8" LG 2
3Fuse18392-G115 AMP3
5Horn switch button and nut17318-G21
6Horn switch plate19233-G11
7Rivet14601-G7Stainless steel, 9/16"2
8Horn switch17318-G11
9Wire tie17618-G12
10Horn switch boot27068-G011
12Horn32860-G1With mounting hardware1
13Washer00559-G85/16"1
16Rivet10570-G113/16" x 3/4" LG 2
17Hour meter21573-G11
18Hour meter bracket74019-G011
19Wire harness75117-G02Hour meter1
21State of charge meter33636-G011
22Ignition key17063-G1SetAR
23Face nut17137-G11
24Decal71145-G01Console insert1
25Decal71123-G01Console plate, state of charge meter w/o lights 1
26Decal71129-G01Console plate, state of charge meter w/ lights 1
27Plate73030-G01Standard console insert mount1
28Plate73030-G02Console insert, state of charge meter1
29Lock washer00568-G63/4"1
30Ignition switch17421-G1includes all hardware1
31Ignition switch33639-G01With lights1
34Turn signal17867-G1With mounting hardware1
35Flasher21640-G11
36Vinyl tape*AR
37Steering column cover20965-G3Vehicles with turn signals1
38Wire harness73043-G01Accessory1
41Taillight assembly22260-G2Complete1
42Taillight bumb21759-G1ReplacementAR
43Bezel74371-G01Driver side1
44Bezel74371-G02Passenger side1
45Rivet14601-G113/16" x 5/8" LG2
46Wire harness24605-G1Brake light1
48Headlight bulb74004-G01ReplacementAR
49Marker light bulb74005-G01ReplacementAR
50Turn light bulb74006-G01ReplacementAR
52Headlight and turn signal74001-G011
53Headlight and turn signal bracket74002-G01Passenger side1
54Headlight and turn signal bar bracket74002-G02Driver side1
55Screw00414-G61/4 - 20 x 3/4" LG 2
56Lock nut11027-G21/4 - 202
57Screw00114-G61/4 - 14 x 3/4" LG 8
59Wire25978-G7418 GA, red1

Rear Axle

1997 Electric 14_Rear Axle

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Rear axle assembly73069-G01includes items 2-81
2Axle shaft20377-G12Passenger side1
3Axle shaft20377-G11Driver side1
4Differential cover25228-G11
5Fill/check plug25226-G11
6Washer25227-G11
7Screw15558-G15/16 - 18 x 3/4" LG 10
8Vent73050-G011
11Bumper spline24261-G11
12Bolt00797-G21/4 - 20 x 1 1/4" LG 3
13Lock washer00565-G71/4"3
14Washer00559-G71/4"3
15Moly lube28095-G012 OZAR

Rear Suspension

1997 Electric 15_Rear Suspension

Sl. NoPart descriptionPart numberNotesQuantityPurchase
1Shock absorber70324-G012
2Shock absorber washer10435-G18
3Rubber shock absorber bushing10194-G18
4Nut00532-G63/8 - 244
7Leaf spring kit70505-G012
8Leaf spring kit70506-G01Use on 4 caddy only2
9"U" bolt 72029-G013/8 - 164
10"U" bolt 74124-G013/8 - 16 (use on 4 caddy only)4
11Washer00560-G13/8"
12Lock nut11098-G53/8 - 168
14Spacer70289-G024
15Rubber bushing70291-G01Leaf spring12
16Shackle plate70290-G014
17Bolt00429-G3/8 - 16 x 3 1/2" LG 4
18Lock nut11098-G53/8 - 164
20Shoulder bolt14158-G17/16 - 14 x 3 1/4" LG 2
21Lock nut12262-G13/8 - 162

Seating and Bag Holder

1997 Electric 16_Seating and Bag Holder

1997 Electric 16_Seating and Bag Holder_2

1997 Electric 16_Seating and Bag Holder_3

1997 Electric 16_Seating and Bag Holder_4

Sl. NoPart descriptionPart numberNotesQuantityPurchase
1Seat bottom assembly71611-G**includes items 2 - 91
2Tee nut*8
3Bumper17074-G12
4Flat staple*110
6Vinyl trim71012-G01Seat bottom1
7Vinyl seat bottom cover71602-G**1
8Foam padding*Seat bottom1
9Seat bottom*Wood1
13Hip restraint71701-G01Passenger side1
14Hip restraint71702-G01Driver side1
15Bolt00414-G81/4 - 20 x 1" LG 8
16Lock washer00565-G71/4"8
17Washer00559-G71/4"8
19Seat hinge71610-G012
20Screw00720-G08#12 - 14 x 1" LG 4
22Seat back assembly71751-G**includes items 23 - 291
23Flat staple*95
24Plastic seat back cover71752-G011
25Seat back*Wood1
26Screw71002-G01#8 x 1" LG 4
27Tee nut*4
28Foam padding*Seat back1
29Vinyl seat back cover71753-G**1
32Seat support bracket71811-G022
33Bolt00414-G81/4 - 20 x 1" LG 4
34Lock washer00565-G71/4"4
35Bolt71802-G013/8 - 16 x 2 1/4" LG 4
36Bag holder bracket71851-G011
37Bag retainer clamp71856-G012
38Bag retainer strap71853-G011
39Ratchet fastener16816-G12
40Carriage bolt71821-G011/4 - 20 x 1 1/2" LG 2
41Lock nut11027-G21/4 - 202
44Seat assembly74131-G**includes items 45 - 641
45Seat bottom assembly74139-G**includes items 46 - 581
46Vinyl cover71602-G**Seat bottom1
47Foam padding*Seat bottom1
48Seat bottom*Wood1
49Tee nut*16
50Seat trim71012-G011
51Flat staple*110
52Flat staple*48
53Seat trim74140-G011
54Hip restraint71702-G01Driver side1
55Hip restraint71701-G01Passenger side1
56Bolt00414-G81/4 - 20 x 1" LG 8
57Lock washer00565-G71/4"8
58Washer00559-G71/4"8
60Seat back assembly71751-G**includes items 23 - 291
61Seat support bracket74117-G012
62Bolt00414-G81/4 - 20 x 1" LG 12
63Lock washer00565-G2#512
64Washer00559-G71/4"12
66Nylon bushing17838-G14
67Quick release pin74134-G012
69Spacer70364-G012
70Seat back support74111-G012
71Bolt00414-G81/4 - 20 x 1" LG 4
72Lock washer00565-G71/4"4
73Washer00559-G71/4"4
74Bolt01006-G023/8 - 16 x 1 1/2" LG 4
75Washer00560-G13/8"4
76Rubber bumper70113-G014
77Lock nut11027-G15/16 - 186

Steering

1997 Electric 17_Steering

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Steering box assembly70314-G02Complete, includes items 2 - 341
2Steering housing75364-G01includes items 3-61
3Sleeve bearing*1
4Sleeve bearing*1
5Flanged bearing*1
6Grease fitting10389-G31
8Bolt00426-G63/8 - 16 x 3/4" LG 2
990 grease fitting18456-G11
10Rack guide cover70177-G011
11Gasket70225-G011
12Compression spring70178-G011
13Rack guide70179-G011
14Clamp11391-G11
15Rack cover70041-G011
16Gear clamp11391-G11
17Bellows70183-G011
18Gear clamp11391-G51
20Steering gear kit70299-G01includes items 21 - 281
21Gear pinion70297-G011
22Ball bearing15112-G11
23External retaining ring70190-G011
24Steering rack70298-G011
25Rack ball end70192-G01With nut1
26Nut00544-G87/16 - 201
2790 grease fitting18456-G12
28Retainer70466-G011
30Idler70184-G011
31Thrust washer70216-G011 1/2" I.D.1
32Thrust washer70195-G017/8"1
33Lock nut00734-G67/8 - 91
34Cotter pin00798-G85/32" x 1 3/4" LG 1
36Steering shaft/column kit70360-G01includes items 37 - 491
37Steering shaft14322-G31
38Steering column70333-G011
39Coupling70226-G011
40Lock nut00550-G11/4 - 202
41Bolt70227-G011/4 - 20 x 7/8" LG 2
42Screw01022-G01#6 - 20 x 5/16" LG 1
43Steering housing gasket70223-G011
44Bolt00876-G23/8 - 16 x 1 1/4" LG 3
45Lock washer00878-G13/8"3
46Retainer70466-G011
47Bushing/seal kit17161-G1includes items 42, 431
48Steering column bushing*1
49Shaft seal*1
52Bolt00470-G47/16 - 20 x 2 1/2" LG 1
53Lock nut00734-G37/16 - 201
54Bolt00462-G77/16 - 14 x 7/8" LG 2
55Lock washer00566-G27/16"2
57Steering wheel18325-G1includes item 581
58Hub cover*1
59Lock nut14390-G25/8 - 181
60Clipboard27102-G011
61Screw00999-G01#8 - 18 x 7/8" LG 2
63Tie rod assembly70074-G01includes items 64 - 682
64Nut18434-G29/16 - 182
65Cotter pin10387-G23/32" x 1" LG 2
66Slotted nut50209-G17/ 16 - 202
67Rubber boot50641-G12
68Grease fitting10389-G32
70Slotted nut50209-G17/16 - 201
71Cotter pin10387-G23/32" x 1" LG 3

Wheels and Tires

1997 Electric 18_Wheels and Tires

Sl. No.Part descriptionPart numberNotesQuantityPurchase
118 x 8.5-8 carlisle tire and wheel assembly27772-G01links, includes items 2, 11, 12AR
218 x 8.5-8 carlisle tire27772-G05LinksAR
318 x 8.5 - 8 carlisle tire and wheel assembly27772-G02Turf glide, includes items 4, 11, 12AR
418 x 8.5- 8 carlisle tire27772-G06Turf glideAR
718 x 8.5-8 carlisle and wheel assembly27772-G03Turf saver, includes items 8, 11, 12AR
818 x 8.5 - 8 carlisle tire27772-G07Turf saverAR
918 x 8.5-8 carlisle tire and wheel assembly27772-G04Fairway, includes items 10, 11, 12AR
1018 x 8.5 - 8 carlisle tire27772-G08FairwayAR
11Wheel rim15169-G1Standard 4 lugAR
12Valve stem11657-G1AR

Special Tools

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Battery maintenance kit25587-G01
2Seal installation tool18739-G1Real axle shaft seal
3Battery set discharger28251-G0136 volt, 75 AMP
4Current indicator16489-G1
5Digital multimeter27481-G01
6Crimping tool27765-G01
7Slide hammer15947-G1Axle/hub removal
8Slide hammer18753-G1Axle removal only
9.6 OZ brush on paint - hunter green28002-G04
10.6 OZ brush on paint - champagne beige28002-G03
1112 OZ spray - hunter green28140-G09
1212 OZ spray - champagne beige28140-G15

Accessories

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Sun top kit75040-G01See kit instruction sheet 75055
2Sun top kit75123-G014 caddy only, see kit instruction sheet 75158
3Windshield kit, 4 caddy only75133-G01See kit instruction sheet 75161
4Windshield kit, Tint, 4 caddy only75133-G02See kit instruction sheet 75161
5Windshield kit, 2 bend 75041-G03See kit instruction sheet 75043
6Windshield kit, 2 bend, tinted75041-G04See kit instruction sheet 75043
7Windshield kit, split75077-G01
8Windshield kit, split, tinted75077-G02
9Windshield kit, split, 4 caddy only75077-G03
10Windshield kit, split, tinted75077-G04
11Sand rake14735-G1
12Tow bar kit75310-G01Permanent use, See kit instruction sheet 75311
13Weather enclosure75078-G013 sided
14Weather enclosure75079-G014 sided
15Rear view mirror19528-G2Requires sun top, See kit instruction sheet 75162
16Message holder kit75094-G01Requires suntop
17Hour meter75113-G02
18Cooler jug/bracket kit75170-G01
19Bag cover / rain curtain kit75191-G01
20Seat refurbishment spray28166-G01White
21Ashtray kit75109-G02See kit instruction sheet 75110
22Turn signal kit75107-G024 caddy only
23Sand bottle75009-G01See kit instruction sheet 75029
248" chrome hubcap 14913-G*See kit instruction sheet 28244
256" chrome hubcap 16042-G*See kit instruction sheet 28244
26Gold spoke hubcap19241-G*See kit instruction sheet 28244
27Silver spoke hubcap19241-G*See kit instruction sheet 28244
284 caddy kit74150-G01See kit instruction sheet 74155
29Center basket75003-G02See kit instruction sheet 75025
30Side basket75007-G02See kit instruction sheet 75026
31Scuff guards75127-G02
32Sun top without bag rack75135-G01See kit instruction sheet 75137
33Two bag attachment75183-G01See kit instruction sheet 75184
34Convertible carrier kit75179-G*See kit insruction sheet 75283
354 caddy to convertible carrier kit75278-G*See kit instruction sheet 75284
364 bag attachment75335-G01See kit instruction sheet 75336
