Freedom LE, Year 2003

Accelerator

2003 Electric_1_Accelerator

2003 Electric_1_Accelerator_2

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Pedal box assembly73333-G01includes items 3-19, 21, 23, 26-431
2Pedal box assembly73333-G05Pds model only, includes items 3-17, 20, 21, 24-431
3Pedal box and cover25853-G01Seal and bearing1
4Inductive throttle sensor25854-G011
5Self threading nut00983-G013/16"2
7Plunger sleeve25857-G011
8Plunger28443-G011
9Plunger cam28444-G011
11Accelerator rod73332-G011
12Nut00532-G45/16 - 241
13Clevis yoke10385-G4Adjustable1
14Spring retainer17677-G23/8"1
15Compression spring73046-G011
16Accelerator rod bushing17979-G11
17Spring retainer17677-G11/2"1
19Micro switch25861-G011
20Micro switch25861-G02PDS model only1
21Screw00985-G01#4 - 14 x 5/8" LG2
23Wiring harness25879-G03Pedal box assembly1
24Wiring haress25879-G05Pedal box assembly, PDS model only1
26Screw00684-G6#8 - 32 x 3/4" LG (Stainless steel)4
28Accelerator pedal bracket70116-G021
29Screw01051-G01#8 - 16 x 1/2" LG4
31Accelerator pedal assembly25799-G03includes items 32 - 351
32Accelerator pedal*1
33Accelerator pedal pad kit27844-G01includes items 34, 351
34Accelerator pedal pad27512-G011
35Oval rivet15766-G13/16" x 7/16" LG6
37Nylon bushing17838-G13
38Pedal pivot pin74432-G011
39Pushnut12064-G69/32" I.D.1
41Clevis pin10386-G35/16" x 13/16" LG1
42Teflon washer17255-G15/16"1
43Cotter pin10387-G33/32" x 3/4" LG1
45Bolt00715-G25/16 - 18 x 4/5" LG4
46Pedal pivot cover70135-G011

Battery Charger – Portable 36 Volt

2003 Electric_2_Battery Charger - Portable 36 Volt

2003 Electric_2_Battery Charger - Portable 36 Volt_2

2003 Electric_2_Battery Charger - Portable 36 Volt_3

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Powerwise charger28115-G0110' cord, includes items 3 - 631
2Powerwise + charger28115-G02Portable, 10' cord, includes items 3-13, 18-63, 70-761
3Chasis*1
4Screw00513-G6#8 - 18 x 1 3/4" LG2
5Washer00559-G4#82
6Expansion nut11572-G32
7Heat sink28104-G011
8Screw00372-G4#8 - 32 x 1/2" LG4
9Washer00559-G4#84
10Lock washer00565-G4#84
11Nut00526-G1#8 - 324
12Diode28548-G011
13Electrical clip28110-G011
15Label*Powerwise1
16Control / Power input board28667-G011
18Cover*1
19Handle28102-G011
20Screw00614-G4#8 - 18 x 1/2" LG6
21Label28136-G01Ventilation1
22Label28136-G02Cord condition1
24Capacitor bracket26979-G011
25Capacitor28109-G011
26Screw00969-G01#8 - 32 x 3/8" LG3
27Bolt00414-G51/4 - 20 x 5/8" LG3
28Lock nut11027-G21/4 - 203
29AC cord19388-G41
30Strain relief13557-G2AC1
31Strain relief13557-G3DC1
33DC cord and handle assembly73345-G01includes items 34 - 431
34Plug73051-G11Top half1
35Plug73051-G12Bottom half1
36Auxiliary contact73051-G271
37Male pin73051-G142
38Screw73051-G08#10 - 32 x 1/2" LG (Brass) 2
39Magnet73051-G151
40Screw73051-G16#6 - 32 x 1/2" LG (stainless steel)2
41Lock nut73051-G10#6 - 324
42Screw73051-G17#6 - 32 x 1" LG (Stainless steel)2
43DC cord73344-G0110' LG1
45Ammeter28105-G011
46Screw01051-G01#8 - 16 x 1/2" LG2
47Washer00559-G4#82
48Washer01003-G01#10 (Brass)4
49Shoulder washer22589-G2#101
50Nylon washer00771-G63/8"1
51Nut00528-G4#10 - 32 (Brass)3
5250 AMP fuse28106-G011
53Lock washer00565-G5#104
54Screw00378-G4#10 - 24 x 1/2" LG2
55Nut00526-G3#10 - 242
56Transformer28103-G011
57Spacer support27877-G014
58Wire tie17618-G12
60Screw00372-G3#8 - 32 x 3/8" LG1
6116 GA wire25977-G32Green 4"1
62Lock washer00565-G4#81
63Nut00526-G1#8 - 321
65Powerwise charger28115-G07Portable, 18' cord, includes items 3-31, 45-63, 66, 671
66DC cord and handle assembly73345-G03includes items 34-42, 671
67DC cord73344-G0318" LG1
69Powerwise + charger28115-G08Portable, 18' cord, includes items 3-13, 18-31, 45-63, 66, 67, 70-761
70Label*Powerwise +1
71Control board28667-G021
72Power input board28667-G031
74Screw01995-G01#6 - 19 x 5/16" LG3
75Washer00559-G3#63
76Support spacer28111-G013

Battery Charger – On Board 36 Volt

2003 Electric_3_Battery Charger - On Board 36 Volt

2003 Electric_3_Battery Charger - On Board 36 Volt_2

2003 Electric_3_Battery Charger - On Board 36 Volt_3

2003 Electric_3_Battery Charger - On Board 36 Volt_4

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Powerwise charger28115-G11On board, includes items 2 - 741
2Label*Powerwise1
3Chassis*1
4Screw00513-G6#8 - 18 x 1 3/4" LG2
5Washer00559-G4#82
6Expansion nut11572-G32
7Heat sink28104-G011
8Screw00372-G4#8 - 32 x 1/2" LG4
9Washer00559-G4#86
10Lock washer00565-G4#84
11Nut00526-G1#8 - 324
12Diode28548-G011
13Electrical clip28110-G011
15Control / power input board28667-G011
16Spacer support27877-G014
18Cover*1
19Handle28102-G011
20Screw00614-G4#8 - 18 x 1/2" LG4
21Label28136-G01Ventilation1
22Label28136-G02Cord condition1
24Capacitor bracket26979-G011
25Capacitor28109-G011
26Screw00969-G01#8 - 32 x 3/8" LG3
27Bolt00414-G51/4 - 20 x 5/8" LG3
28Lock nut11027-G21/4 - 203
29AC cord19388-G51
30Strain relief13557-G2AC1
31Strain relief13557-G3DC1
33DC cord assembly73344-G06Includes items 34 - 381
34DC cord28108-G011
35Ring terminal11343-G33/16"2
36Ring terminal11343-G15/16"2
37Female terminal17064-G22
38Heat shrink tubing22476-G1A/R
40Isolation mount22009-G24
41Washer01110-G011/4" (Stainless steel)4
42Lock washer00664-G71/4" (Stainless steel)4
43Nut00532-G11/4 - 204
45Ammeter28105-G011
46Screw01051-G01#8 - 16 x 1/2" LG2
47Washer00559-G4#82
48Washer01003-G01#10 (Brass)4
49Shoulder washer22589-G2#101
50Nylon washer00771-G63/8"1
51Nut00528-G4#10 - 32 (Brass)3
5250 AMP fuse28106-G011
53Screw00378-G4#10 - 24 x 1/2" LG2
54Lock washer00565-G5#104
55Nut00526-G3#10 - 242
56Transformer28103-G011
58Screw00372-G3#8 - 32 x 3/8" LG1
5916 GA wire25977-G32Green 4"1
60Lock washer00565-G4#81
61Nut00526-G1#8 - 321
63Relay21971-G41
64Screw00138-G4#6 - 32 x 1/2" LG2
65Lock Nut14390-G9#6 - 322
6716 GA wire25977-G38Black 4"1
6816 GA wire25977-G37White 5"1
6918 GA wire25978-G161Blue 6"1
7018 GA wire25978-G162Yellow 6"1
7118 GA wire25978-G163Black 7"1
72Adapter tab17902-G11
73Adapter terminal28305-G011/4" x 3/16"1
74Adapter terminal27285-G011/4" (1 Female, 3 male)1
76Shield71968-G011
77Screw00106-G6#12 - 24 x 3/4" LG2
79Lock nut11027-G15/16- 182
81Cord reel73368-G011
82Bolt00438-G65/16 - 18 x 3/4" LG2
83Lock nut11027-G15/16 - 182
85Cover plate73173-G011
86Rivet14601-G101/8" x 7/16" LG (Aluminum)4

Battery Charger – Export 36 Volt

2003 Electric_4_Battery Charger - Export 36 Volt

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Battery charger, lester, 36 volt, portable with powerwise connector28516-G01CE approved (Optional)
2Battery charger, lester, 36 volt, on-board28516-G03CE approved (Optional)

Body – Front

2003 Electric_5_Body Front

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Instrument panel assembly71151-G01includes items 2 - 51
2Ball deflector71153-G01Passenger side1
3Ball deflector71154-G01Driver side1
4Screw00614-G5#8 - 18 x 5/8" LG6
5Instrument panel insert71158-G014 cup holder1
8Vinyl trim71115-G012
9Rivet71055-G013/16" x 1" LG (Aluminum)10
12Splash panel71413-G011
13Rivet16816-G21/4" x 3/4" LG5
16Label27647-G01Safety1
17Label35345-G01Safety - EC1
18Label74443-G01Anti-rollback1
22Bolt01038-G011/4 - 20 x 11/16" LG4
23Washer16469-G11/4"2
24Rivet01057-G011/4" x 1" LG2
25Front shield27166-G041
26Front shield brace70725-G012
29Cowl71051-G**1
30Rivet71055-G013/16" x 1" LG (Aluminum)9
31Rivet10570-G113/16" x 3/4" LG (Stainless steel)2
32Bolt71056-G015/16 - 18 x 5/8" LG4
33Washer00570-G25/164
34Bolt00438-G65/16 - 18 x 3/4" LG (With top)2
35Washer01110-G035/16" (Stainless steel), with top 2
37E-Z-GO nameplate71037-G02Gold1
38Nut, Self-Threading71597-G015MM stud x 10MM hex2
40Serial number plate*Early production1
41EC plate*Early production1
42Rivet01041-G011/8" x 13/16" LG 4
45Instrument panel woodgrain applique kit74239-G011

Body – Mid Section

2003 Electric_6_Body - Mid Section

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Upper floorpan70662-G011
2Lower floorpan70451-G011
3Access cover70452-G011
4Rivet14601-G113/16" x 9/16" LG (Aluminum)16
5Floormat70995-G011
6Floormat with horn holes70995-G021
9Seat frame70441-G011
10Bolt00715-G25/16 - 18 x 13/16" LG 2
12Battery rack70046-G011
13Bolt00715-G25/16 - 18 x 13/16" LG 2
14Bolt00438-G65/16 - 18 x 3/4" LG2
15Washer00559-G85/16"2
16Lock nut01109-G015/16 - 18 (Stainless steel)2
17Screw70200-G013/8 - 16 x 3/4" LG 2
19Bracket70444-G011
20Bolt28272-G011/4 - 20 x 5/8" LG2
21Washer01110-G011/4" (Stainless steel)2
22Lock nut11027-G21/4 - 202
24Splash panel70244-G022
25Bolt00715-G25/16 - 18 x 13/16" LG 8
28Fender liner71812-G01Passenger side1
29Fender liner71812-G02Driver side1
30Rivet16816-G21/4" x 3/4" LG 8

Body – Rear

2003 Electric_7_Body Rear

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Rear body71912-G0**Without taillights, includes items 3, 41
2Rear body71334-G0**With taillights, includes items 3, 41
3Bagwell liner71318-G011
4Ratchet fastener16816-G11/4" x 9/16" LG26
5Rivet10570-G105/32" x 9/16" LG (Stainless steel)6
6Rivet10570-G121/4" x 9/16" LG (Aluminum)4
7Rivet18436-G11/4" x 3/4" LG2
11Fender scuffguard75126-G01Driver side1
12Fender scuffguard75126-G02Passenger side1
13Rivet16816-G21/4" x 3/4" LG8
17Access panel71320-G011
18J' clip71364-G021
19Screw01107-G01#8 x 5/8" LG (Stainless steel)5
23Seat hinge plate71609-G012
24Rivet10570-G113/16" x 3/4" LG (Stainless steel)4
28Rear bumper71578-G011
29Washer00571-G25/16"4
30Bolt71102-G011/4 - 20 x 3/4" LG4
31Bumper plug71514-G014
32Rivet14601-G173/16" x 9/16" LG (Aluminum)4
36Rear bumper71456-G01Shuttle 2+21
37Bolt71398-G011/4 - 20 x 1 1/4" LG2
38Bumper plug71455-G014
39Bolt71102-G011/4 - 20 x 3/4" LG2
40J' type nut retainer71554-G012
41Bumper stay71457-G014
45Rocker panel71501-G01Passenger side1
46Rocker panel71502-G01Driver side1
47Rivet15058-G63/16" x 15/16" LG (Aluminum)4
51Sill plate71507-G01Passenger side1
52Sill plate71507-G02Driver side1
53Screw16705-G11/4 - 20 x 1" LG (Stainless steel)4
54Spacer23726-G45/16"4
55Lock nut00654-G21/4 - 20 (Stainless steel)4
59Label75960-G01Freedom2
60label75962-G01Freedom SE2
61Label75964-G01Freedom LE2
62Label35434-G01Shuttle2
63Label35430-G19TXT 2+22
64Label73330-G01Precision drive systemAR
68Label*Serial number1
72Hole plug71316-G01Dash mounted direction selector switch only1

Body Footrest

2003 Electric_8_Body Footrest

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Footrest assembly70361-G01includes items 2 - 51
2Footrest70350-G011
3Floor mat70362-G011
4Reflector74129-G011
5Label74132-G01Warning1
6End cap19853-G11"2
8Vertical frame support74126-G01Passenger side1
9Vertical frame support74126-G02Driver side1
10Bolt00427-G43/8 - 16 x 1 1/2" LG2
11Washer00560-G13/8"10
12Carriage bolt00769-G23/8 - 16 x 1 1/4" LG2
13Lock nut11098-G53/8 - 1610
14Bolt00426-G83/8 - 16 x 1" LG2
16Valance panel74149-G011
17Rivet16816-G21/4" x 3/4" LG4
19Support tube75268-G011
20Self threading screw00106-G6#12 - 24 x 3/4" LG2
21End cap19859-G13/4"2
22Hole plug20271-G21/2"2
26Two bag attachment kit75183-G01includes items 27 - 301
27Two bag attachment75188-G011
28Knob22238-G23/8 - 16 x 1 1/2" LG 1
29Teflon washer17255-G15/16"1
30Support bracket75187-G011

Body Accessories

2003 Electric_9_Body Accessories

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Sand bottle divot repair kit28661-G01includes items 2 - 41
2Bolt71102-G011/4 - 20 x 3/4" LG1
3Sand bottle holder28660-G011
4Sand bottle28659-G011
7Basket divot repair kit23300-G01includes scoop1
10Side basket kit75007-G02includes items 11 -131
11Side basket75460-G011
12Bolt71102-G011/4 - 20 x 3/4" LG 3
13Flat washer00793-G21/4" (Stainless steel)3
16Center basket kit75003-G02includes items 17 - 201
17Center basket75461-G011
18Bolt71102-G011/4 - 20 x 3/4" LG2
19Flat washer00793-G21/4" (Stainless steel)2
20Screw01105-G01#10 x 5/8" LG (Stainless steel)2

Body Accessories

2003 Electric_10_Body Accessories continued (a)

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Message holder75509-G01One piece1
2Massage holder75496-G011
5Cooler jug and bracket kit75495-G011
6Box cooler and bracket kit75344-G011
9Rake holder25885-G011
10Square head bolt00989-G061/4 -20 x 3/4" LG2
11Lock nut11027-G21/4 - 202
12Rake14735-G11

Body Accessories

2003 Electric_11_Body Accessories continued (b)

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Four bag attachment kit75335-G01includes items 2 - 181
2Top assembly*1
3Bottom assembly*1
4Clevis pin17651-G25/6 x 1 1/8" LG1
5Push nut28129-G015/16"1
6Clevis pin17651-G25/16 x 1 1/8" LG 1
7Clevis pin17651-G35/16 x 1/2" LG2
8Washer00559-G85/16"3
9Push nut28129-G015/16"3
10Clevis pin*3/8 x 1 1/4" LG2
11Washer00560-G13/8"2
12Push nut*3/8"2
13Rubber bumper13728-G12
14Screw00150-G6#10 - 24 x 3/4" LG2
15Washer00559-G5#102
16Lock washer00565-G5#102
17Nut00526-G3#10 - 242
18Label*Warning1
23Ash tray kit75109-G02includes items 24 - 271
24Ash tray27731-G011
25Gasket27736-G011
26Bracket75108-G021
27Screw00100-G4#10 - 16 x 1/2" LG4

Brakes

2003 Electric_12_Brakes

2003 Electric_12_Brakes_2

2003 Electric_12_Brakes_3

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Brake pedal assembly70612-G01Without brake lights, includes items 2 - 101
2Torsion spring70681-G012
3Pivot pin70682-G011
4Pushnut01071-G015/16"2
5Brake pedal*1
6Park brake pedal70611-G011
7Brake/Park brake pedal pad kit70274-G01Includes items 8 - 101
8Service brake pad*1
9Park brake pedal pad*1
10Oval rivet15766-G13/16" x 7/16" LG9
12Shoulder bolt70582-G013/8 - 16 x 4" LG (Stainless steel)1
13Flanged bushing70581-G012
14Torsion spring70676-G011
15Washer00643-G13/8"1
16Lock Nut11098-G53/8 - 161
18Compensator assembly70272-G04Includes items 19, 201
19Spherical nut00963-G015/16 - 241
20Lock nut11098-G95/16 - 241
22Equalizer and brake cable assembly70969-G03Includes items 23 - 261
23Equalizer bracket28082-G011
24Brake compensator bumper28083-G012
25Brake cable*Driver side1
26Brake cable*Passenger side1
28Retaining ring01111-G014/5" (Stainless steel)4
30Clevis pin10386-G35/16" x 13/16" LG1
31Cotter pin10387-G33/32" x 3/4" LG3
32Clevis pin14443-G25/16" x 5/8" LG 2
34Kick-off link70601-G011
35Nylon bushing17838-G12
36Teflon washer20835-G13/8"2
37Washer00559-G85/16"2
38Cotter pin10387-G33/32" x 3/4" LG2
39Kick-off cam pivot70098-G011
40Flanged bearing10097-G62
41Kick-off cam70587-G011
42Setscrew71215-G011/4 - 20 x 1/2" LG2
43Spacer14134-G41
45Adjust table bumper70113-G011
46Lock nut11027-G15/16 - 181
48Catch bracket70080-G011
49Bolt00414-G61/4 - 20 x 3/4" LG2
50Lock nut00654-G21/4 - 20 (Stainless steel)2
53Brake pedal assembly70690-G01With brake lights, includes items 54 - 791
54Brake pedal*1
55Park brake pedal70611-G011
56Brake/Park brake pedal pad kit70274-G01Includes items 57 - 591
57Service brake pad*1
58Park brake pad*1
59Oval rivet15766-G13/16" x 7/16" LG9
61Brake pedal plate70258-G021
62Pivot pin70682-G011
63Torsion spring70681-G012
64Pushnut12064-G15/16"1
65Screw00737-G8#10 - 24 x 7/8" LG 4
66Rubber nut00739-G1#10 - 242
67Brake pedal standoff22362-G32
68Conical spring27137-G012
69Lock nut11098-G7#10 - 242
70Micro switch10606-G81
71Bolt00957-G1#6 - 32 x 1 1/4" LG 2
72Washer00559-G5#102
73Washer00559-G3#64
74Lock wsaher00565-G3#62
75Nut00525-G5#6 - 322
76Screw and lock washer13514-G1#6 - 32 x 1/4" (Brass)2
77Push on male terminal14628-G12
78Wire harness24605-G1Brake light1
79Wire tie17618-G13
82Brake assembly70998-G01Driver side, includes items 84-92, 94, 951
83Brake assembly70998-G02Passenger side, includes items 84-91, 93-951
84Brake shoe kit70794-G01Includes item 852
85Brake shoe*2
86Brake spring kit27944-G01Includes items 87 - 912
87Upper spring*1
88Lower spring*1
89Pin*2
90Cup and spring*2
91Adjuster spring*1
92Brake adjuster kit72582-G01Driver side, includes items 94, 951
93Brake adjuster kit72582-G02Passenger side, includes items 94, 951
94Adjuster*1
95Teflon washer*2
96Bolt17083-G25/16 - 24 x 1" LG8
97Lock nut15126-G15/16 - 248
98Washer15485-G113/16"2
100Brake drum assembly19186-G01Includes items 101 - 1022
101Brake drum*1
102Lug bolt19862-G11/2 - 20 x 1 3/16" LG4
105Washer15487-G11 3/8" O.D. x 21/32"2
106Castellated nut15483-G15/8 - 182
107Cotter pin10387-G11/8" x 1 1/2" LG 2
108Spindle cap74175-G012
110Brake cable bracket72036-G01Passenger side1
111Brake cable bracket72036-G02Driver side1

Direction selector

2003 Electric_13_Direction selector

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Direction selector handle71205-G011
2Screw00740-G4#10 - 32 x 1/2" LG (Stainless steel)1
3Direction selector shaft70233-G011
4Bushing25664-G21
5Offset shift linkage arm70334-G011
6Linkage rod70313-G011
7Shift linkage arm70232-G031
8Bushing22754-G32
9Lock nut14390-G13/8 - 242
11Direction selector cover73049-G011
12Screw00114-G61/4 - 14 x 3/4" LG1
13Washer16469-G71/4"1
15Bolt00438-G65/16 - 18 x 3/4" LG 2
16Washer01110-G035/16" (Stainless steel)2
17Lock nut01109-G015/16 - 18 (Stainless steel)2
19Direction selector assembly70578-G01Includes items 20 - 501
20Direction selector shaft73027-G011
21Cam12835-G11
22Micro switch10606-G22
23Screw00645-G7#6 - 32 x 2" LG4
24Cover bracket73048-G011
25Lock washer00565-G3#66
26Push on male terminal14628-G13
27Nut00525-G5#6 - 326
28Screw00645-G5#6 - 32 x 5/8" LG 2
29Spacer12806-G14
30Washer00560-G13/8"1
31Lock nut14390-G13/8 - 241
3218 GA wire25978-G37Red 4"1
33Screw13514-G14
34Lock washer00567-G3#64
3518 GA wire25978-G343Red 6"1
36Bolt00661-G81/4 - 20 X 1" LG (Stainless steel)2
37Washer01110-G011/4" (Stainless steel)4
38Lock washer00664-G71/4" (Stainless steel)2
39Nut00532-G11/4 - 202
40Support bracket15461-G11
41Direction selector mounting bracket73031-G011
42Reverse warning buzzer73290-G02Continuous tone1
44Contact board assembly14651-G1Includes items 45 - 501
45Stop24940-G12
46Lock washer00664-G71/4" (Stainless steel)2
47Bolt00414-G61/4 - 20 x 3/4" LG 2
48Contact stud18888-G15/16 - 184
49Lock washer00565-G85/16"4
50Nut00544-G35/16 - 184

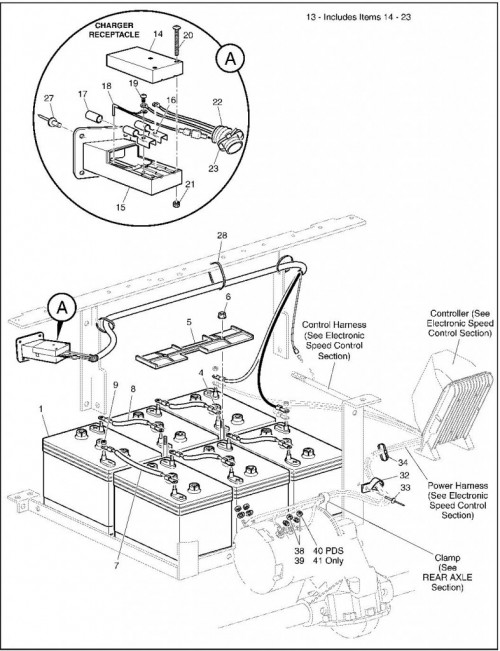

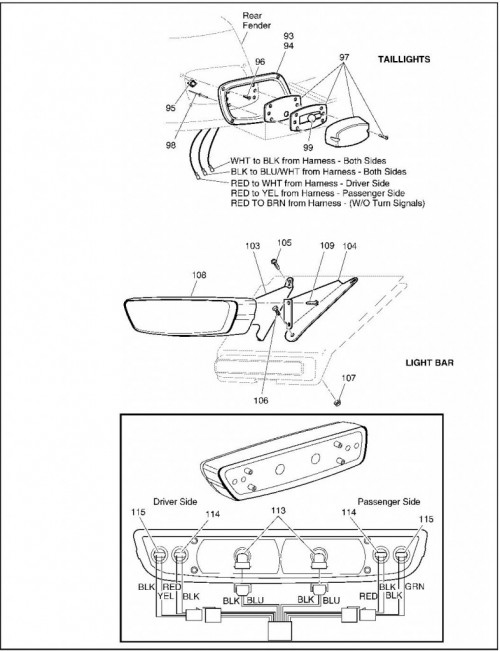

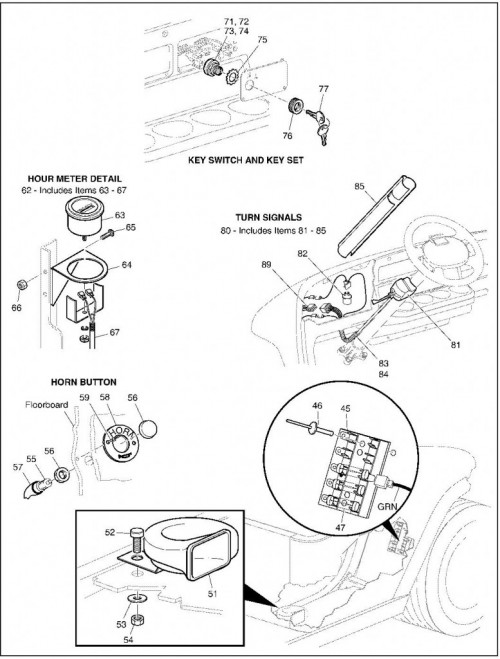

Electrical System – Common

2003 Electric_14_Electrical System - Common

2003 Electric_14_Electrical System - Common_2

2003 Electric_14_Electrical System - Common_3

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
16 volt batteryXXXXX-GXX6
4Hold down bolt01101-G01Stainless steel2
5Battery retainer70045-G011
6Lock nut11027-G15/16 - 182
76 GA wire25972-G32Battery interconnect, black, 10 1/2"1
86 GA wire25972-G40Battery interconnect, 6"4
9Nut00702-G25/16 - 1812
13Charger receptacle assembly73063-G01Includes items 14 - 231
14Receptacle cover*1
15Receptacle bottom*1
16Female connector73051-G052
17Insulator sleeve73051-G061
18Reed switch73051-G281
19Screw73051-G08#10 - 32 x 1/2" LG (Brass)2
20Screw73051-G09#6 - 32 x 1 3/4" LG (Stainless steel)3
21Lock nut73051-G10#6 - 323
22Wire harness*Charger1
23Wire tie17618-G12
27Rivet71055-G013/16" x 1" LG (Aluminum)4
28Wire tie17618-G13
32Cable clamp27327-G021
33Rivet10570-G113/16" x 3/4" LG (stainless steel)1
34Wire tie17618-G18
38Lock washer00993-G015/16" (Silicon bronze)AR
39Nut28418-G015/16 - 18 (Brass)AR
40Lock washer00993-G021/4" (Silicon bronze)2
41Nut28418-G021/4 - 20 (Brass)2
45Fuse block22674-G11
46Rivet01041-G011/8" x 13/16" LG2
4715 AMP fuse18392-G1AR
51Horn32860-G11
52Bolt00414-G51/4 - 20 x 5/8" LG1
53Washer01110-G011/4" (Stainless steel)1
54Lock nut00654-G21/4 - 20 (Stainless steel)1
55Horn switch17318-G11
56Horn switch cap and nut17318-G21
57Horn switch boot27068-G011
58Horn switch label19233-G11
59Rivet71055-G013/16" x 1" LG (Aluminum)2
62Hour meter kit75113-G02Includes items 63 - 671
63Hour meter21573-G11
64Hour meter bracket74019-G021
65Screw00379-G4#10 - 24 x 1/2" LG 2
66Lock nut11098-G7#10 - 242
67Wire harness75117-G02Hour meter1
71Key switch kit17421-G1W/o lights - standard - with hardware1
72Key switch17955-G1Without lights - non standard1
73Key switch18027-G1Without lights - individually keyed1
74Key switch33639-G**With lights1
75Lock washer00568-G63/4"1
76Face nut17137-G13/4 - 201
77Key17063-G1Set1
80Turn signal kit75107-G02Includes items 81 - 851
81Turn signl17867-G1With mounting hardware1
82Turn signal flasher21640-G11
83Flex loom32307-G33/8" x 8" LG 1
84Wire tie17618-G12
85Steering cloumn cover20965-G31
89Wire harness73043-G01Accessory1
93Bezel74371-G01Driver side1
94Bezel74371-G02Passenger side1
95J' clip71364-G028
96Countersunk screw71425-G01#88
97Brake / taillight lamp22288-G21
98Rivet14601-G113/16" x 9/16" LG (Aluminum)4
99Taillight bulb21759-G1AR
103Headlight mount bracket74236-G01Passenger side1
104Headlight mount bracket74236-G02Driver side1
105Bolt01038-G011/4 - 20 x 11/16" LG2
106Bolt00414-G61/4 - 20 x 3/4" LG 2
107Lock nut11027-G21/4 - 202
108Headlight and turn signal light74001-G011
109Screw00114-G61/4 - 14 x 3/4" LG 4
113Head light bulb74004-G01AR
114Marker light bulb74005-G01AR
115Turn signal bulb74006-G01AR

Electrical System – Series

2003 Electric_16_Electrical System - Series

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Plate73030-G01Key switch only1
2Label71145-G01Key switch only1
5Plate73030-G02Key switch, state of charge meter1
6Label71123-G02Key switch w/o lights, state of charge meter1
7Label71129-G02Key switch w lights, state of charge meter1
9Drive rivet33623-G023/16" x 3/8" LG 2
12Wire harness73041-G01Key switch1
15State of charge meter33636-G011
16Wire harness74018-G01State of charge meter1
1718 GA wire25978-G74Red 6"1
21Lock washer00565-G85/16"4
22Nut00532-G35/16 - 184

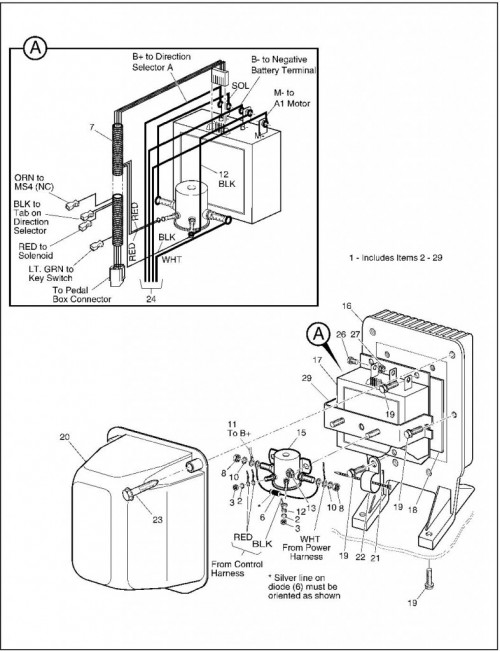

Electronic Speed Control – Series

2003 Electric_17_Electronic Speed Control - Series

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Electronic speed control assembly73056-G04Includes items 2 - 311
2Lock washer*#102
3Nut*10 - 322
5Diode30353-G13 AMP1
6Resistor21764-G11
7Wire harness73103-G02Control1
8Nut*5/16 - 242
10Lock washer*5/16"2
114 GA wire25972-G02Sol - B+1
1218 GA wire25978-G10SOL - B-1
13Lock nut11027-G21/4 - 202
15Solenoid27855-G0136 Volt1
16Heatsink73083-G011
17Electronic speed controller25864-G051
18Thermal mounting pad73190-G011
19Bolt71102-G011/4 - 20 x 3/4" LG 9
20Cover73028-G011
21Wire tie31539-G11
22Double tube clamp73053-G011
23Bolt71102-G031/4 - 20 x 1 3/16" LG 3
24Wire harness73039-G02Power1
26Bolt00270-G55/16 - 18 x 5/8" LG 3
27Lock nut11027-G15/16 - 183
29Solenoid bracket25866-G011

Electronic Speed Control – HD

2003 Electric_19_Electronic Speed Control - HD

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Electronic speed control assembly73055-G02Includes items 2 - 231
2Electronic speed controller73060-G011
3Controller mount74014-G011
4Bolt00414-G51/4 - 20 x 5/8" LG 4
5Washer01110-G011/4" (Stainless steel)2
6Lock nut11027-G21/4 - 206
8Solenoid28562-G011
10Resistor21764-G11
11Lock washer*#102
12Nut*#10 - 322
13Washer*5/16"2
14Nut*5/16 - 242
16Wire harness73095-G02Control1
17Wire harness28325-G01Power1
1818 GA wire25978-G88Red 9"1
196 GA wire25972-G02Blk 6", sol - B+1
2018 GA wire25978-G10Blk 6", sol - B-1
22Bolt00438-G65/16 - 18 x 3/4" LG 4
23Lock nut11027-G15/16 - 184
25Cover23723-G21
26Washer16469-G11/4"1
27Wing nut14419-G11/4 - 201
29Bolt00414-G51/4 - 20 x 5/8" LG 4
30Lock nut11027-G21/4 - 204

Front Suspension Steering

2003 Electric_20_Front Suspension Steering

2003 Electric_20_Front Suspension Steering_2

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Front axle70963-G011
3Spindle and hub assembly70942-G014 Lug, passenger side, includes items 4 - 101
4Spindle assembly70942-G02Passenger side1
5Grease seal25146-G11
6Roller bearing and race assembly50892-G12
7Wheel hub assembly with races70895-G014 Lug, Includes item 81
8Lug bolt19862-G11/2 - 20 x 1 3/16" LG 4
9Castellated nut12093-G11 - 141
10Cotter pin00798-G85/32" x 1 3/4" LG1
11Spindle cap12091-G22
14Spindle and hub assembly70673-G014 Lug, Driver side, includes items 5-10, 151
15Spindle assembly70673-G02Driver side1
18Spindle and hub assembly70943-G015 Lug , passenger side, includes items 19 - 251
19Spindle assembly70942-G02Passenger side1
20Grease seal12092-G11
21Roller bearing and race assembly50892-G12
22Wheel hub assembly with races70772-G015 Lug, Includes item 231
23Lug bolt30143-G11/2 - 20 x 1 7/32" LG 5
24Castellated nut12093-G11 - 141
25Cotter pin00798-G85/32" x 1 3/4" LG 1
29Spindle and hub assembly70797-G015 Lug, Driver side, includes items 20 - 25, 301
30Spindle assembly70673-G02Driver side1
33Bolt00407-G61/2 - 13 x 6" LG 2
34Washer00560-G31/2"4
35King pin tube70745-G012
36Thrust washer70754-G011" (Stainless steel)2
37Lock nut14390-G61/2 - 132
40Shock absorber70928-G012
41Shock absorber boot70509-G012
42Wire tie31539-G14
43Shock absorber washer10435-G18
44Rubber bushing10194-G18
45Nut00532-G63/8 - 244
48Leaf spring70990-G02See part number on spring2
49Leaf spring70989-G02Heavy duty, see part number on spring 2
50Spring plate70163-G024
51Bolt00463-G47/16 - 14 X 1 1/2" LG4
52Lock nut00734-G17/16 - 1411
53Bolt00463-G67/16 - 14 x 1 3/4" LG 7
56Rack and pinion unit70964-G01complete, includes item 57 - 681
57Rack extension70694-G011
58Jam nut*1/2 - 201
59Rack boot70961-G011
60Wire tie12416-G21
61Clamp11391-G81 13/16 - 2 3/8"1
63Pinion seal70638-G011
64Rack ball joint70695-G01includes items 65 - 681
65Rubber boot50641-G11
66Castellated nut50209-G27/16 - 201
67Cotter pin10387-G23/32" x 1" LG 1
68Grease fitting10389-G3Straight1
70Bolt00464-G67/16 - 14 x 2 3/4" LG 2
71Bolt01068-G017/16 - 14 x 3 1/2" LG 1
72Spacer70667-G022
73Spacer70667-G03Short1
74Nut00532-G77/16 - 141
75Flat washer00560-G27/16"4
76Lock nut00734-G17/16 - 143
79Steering shaft70607-G011
81Steering column kit70758-G03includes items 82 -841
82Steering column70610-G011
83Steering column bushing28569-G011
84Screw01022-G01#6 - 20 x 5/16" LG 1
86Steering column kit70758-G04Horn, includes items 87 - 891
87Steering column70610-G021
88Steering column bushing28569-G011
89Screw01022-G01#6 - 20 x 5/16" LG 1
92Bolt01006-G013/8 - 16 x 1 1/4" LG 4
93Lock washer00879-G13/8"4
96Cover70997-G011
97Rivet71055-G013/16" x 1" LG (Aluminum)1
100Intermediate shaft70580-G01includes items 101, 1021
101Bolt01055-G01M8 x 1.25 - 052
102Lock washer00565-G85/16"2
105Retaining ring70751-G01Internal1
106Retaining ring70888-G01External1
107Ball bearing15112-G11
108Wave washer70887-G011
109Steering wheel71146-G011
110Steering wheel cover71147-G011
111Label71047-G01E-Z-GO1
112Labe74405-G01Cushman1
113Steering wheel71948-G011
114Clipboard71950-G011
115Hub cover71949-G011
116Lock nut14390-G25/8 - 181
119Tie rod assembly70876-G02includes items 120 - 1241
120Threaded rod70897-G0224" LG 1
121Tie rod end70902-G01Left hand threads1
122Jam nut01069-G01M12 x 1.25 - 05 (Left hand threads)1
123Tie rod end70902-G02Right hand threads1
124Jam nut01069-G02M12 x 1.25 - 05 (Right hand threads)1
125Lock nut00734-G17/16 - 142

Motor

2003 Electric_21_Motor

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Motor73124-G02Series, fleet speed, includes items 3-121
2Motor73124-G03Series, high speed, includes items 3-11, 141
3Armature73120-G011
4Brush spring73120-G034
5Brush plate and box73120-G151
6Brush replacement kit73120-G25includes hardware1
7Bearing73120-G071
8Snap ring73120-G061
9Cover plate and screw73120-G091
10Commutator end housing73120-G081
11Cap73120-G161
12Frame and field coil73120-G29G02 motor, includes hardware1
14Frame and field coil73120-G30G03 motor, includes hardware 1
16Motor73124-G08Separately excited, pds, includes items 17-291
17Armature73120-G181
18Brush spring73120-G034
19Brush plate and box73120-G151
20Brush replacement kit73120-G25Includes hardware1
21Bearing73120-G071
22Snap ring73120-G061
23Cover plate and screw73120-G091
24Frame and field coil73120-G31includes hardware1
25Commutator end housing73120-G191
26Magnet73328-G011
27Screw01037-G02#10 - 32 x 1/2" LG 1
28Retaining ring73277-G012
29Speed sensor73327-G011
30Spline bumper24261-G11

Rear axle

2003 Electric_22_Rear axle

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Rear axle assembly73500-G01includes items 2 - 71
2Axle shaft20377-G12Passenger side1
3Axle shaft20377-G11Driver side1
4Differential cover*1
5Fill plug with 'O' ring28610-G011
6Bolt15558-G15/16 - 18 x 3/4" LG 10
7Vent73050-G011
9Scuff guard72763-G011
11Spline bumperXXXXX-XXXSee electric motor1
12Bolt00797-G21/4 - 20 x 1 1/4" LG 3
13Lock washer00664-G71/4" (Stainless steel)3
14Washer flat01110-G011/4" (Stainless steel)3
15Moly lube28095-G012 OZAR

Rear suspension

2003 Electric_23_Rear suspension

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Shock absorber70324-G012
2Shock absorber washer10435-G18
3Rubber bushing10194-G18
4Nut00532-G63/8 - 244
6Leaf spring70474-G012 Leaf2
7Leaf spring74207-G014 Leaf2
8U' bolt72618-G013/8 - 16 x 2" x 2 1/2" LG 4
9Washer00560-G13/8"8
10Lock nut11098-G53/8 - 168
12Spacer70289-G024
13Flanged bushing70291-G01Leaf spring12
14Shackle plate70290-G014
15Bolt00665-G93/8 - 16 x 3 1/2" LG (Stainless steel)4
16Lock nut11098-G53/8 - 164
18Shoulder bolt14158-G13/8 - 16 x 3 1/4" LG 2
19Lock nut12262-G13/8 - 162

Seating and Bag Holder – Golf Car

2003 Electric_24_Seating and Bag Holder - Golf Car

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Seat bottom assembly71611-G**Includes items 2-41
2Vinyl seat bottom cover71602-G**1
3Vinyl trim71012-G01Seat bottom1
4Rubber pad17074-G12
6Hip restraint71701-G01Passenger side1
7Hip restraint71702-G01Driver side1
8Bolt71204-G011/4 - 20 x 7/8" LG 8
10Seat hinge71610-G012
11Screw00720-G08#12 - 14 x 1" LG (Stainless steel)4
13Seat back assembly71751-G**Includes items 14 - 161
14Vinyl seat back cover71753-G**1
15Plastic seat back cover71752-G011
16Screw01107-G01#8 x 5/8" LG (Stainless steel)4
19Seat support bracket71811-G022
20Bolt00661-G81/4 - 20 x 1" LG (Stainless steel)4
21Lock washer00664-G71/4" (Stainless steel)4
22Bolt71802-G013/8 - 16 X 2 3/4" LG4
24Bag holder bracket71851-G011
25Bag retainer clamp71856-G012
26Bag retainer strap71853-G011
27Ratchet fastener16816-G11/4" x 9/16" LG 2
28Carriage bolt01102-G011/4 - 20 x 1 1/2" LG (Stainless steel)2
29Lock nut11027-G21/4 - 202

Seating Convertible Carrier

2003 Electric_26_Seating Convertible Carrier

2003 Electric_26_Seating Convertible Carrier_2

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Seat bottom assembly71611-G**includes items 2-41
2Vinyl seat bottom cover71602-G**1
3Vinyl trim71012-G01Seat bottom1
4Rubber pad17074-G12
7Hip restraint71701-G01Passenger side1
8Hip restraint71702-G01Driver side1
9Bolt00661-G81/4 - 20 x 1" LG (Stainless steel)8
12Seat hinge71610-G012
13Screw00720-G08#12 - 14 x 1" LG (stainless steel)4
16Seat back assembly71751-G**Includes items 17 - 191
17Vinyl seat back cover71753-G**1
18Plastic seat back cover71752-G011
19Screw01107-G01#8 - 5/8" LG (Stainless steel)4
22Spacer70364-G012
23Seat back support74111-G012
24Bolt01006-G023/8 - 16 x 1 1/2" LG 4
25Washer00560-G13/8"4
26Adjustable bumper70113-G012
27Lock nut11027-G15/16 - 182
29Bolt00661-G81/4 - 20 x 1" LG (Stainless steel)4
30Lock washer00664-G71/4" (Stainless steel)4
33Seat back assembly71751-G**Includes items 17 - 191
34Seat back support75258-G011
35Bolt00661-G81/4 - 20 x 1" LG (Stainless steel)4
36Lock washer00664-G71/4" (Stainless steel)4
37Screw16705-G61/4 - 20 x 1 3/4" LG (Stainless steel)2
38Acorn nut00520-G11/4 - 20 (Stainless steel)2
39End plug19859-G13/4"2
41Bed75229-G011
42Seat bottom assembly71063-G**Includes item 431
43Seat bottom75197-G**includes item 441
44Vinyl seat bottom cover75252-G**1
45Screw00762-G45/16 - 18 x 1 1/2" LG (Stainless steel)2
46Teflon washer17255-G015/16"4
47Lock Nut00654-G35/16 - 18 (Stainless steel)2
48End cap19859-G13/4"4
51Bed front71060-G01includes mat1
52Bolt00661-G61/4 - 20 x 3/4" LG (Stainless steel)4
53Washer00559-G85/16"4
54Support frame75193-G011
55Bolt00438-G85/16 - 18 x 1" LG2
56Washer00559-G85/16"2
57Lock nut11027-G15/16 - 182
58Bolt00440-G45/16 - 18 x 2 1/2" LG 2
59Nylon bushing17838-G14
60Washer00559-G85/16"2
61Lock nut00654-G35/16 - 18 (Stainless steel)2
62Handrail75196-G012
63Screw00762-G25/16 - 18 x 1 1/4" LG (Stainless steel)2
64Lock washer00664-G85/16" (Stainless steel)2
65Accorn nut00520-G35/16 - 18 (Stainless steel)2
66End cap75261-G021"4
69Side basket75460-G01Black2
70Self threading screw00106-G6#12 - 24 x 3/4" LG 4

Tow bar – Permanent

2003 Electric_27_Tow bar - Permanent

2003 Electric_27_Tow bar - Permanent_2

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Mounting plate75318-G011
2Stop mount plate75319-G011
3Screw16705-G11/4 - 20 x 1" LG (Stainless steel)3
4Lock nut00654-G21/4 - 20 (Stainless steel)3
5Female stop75338-G021
8Tow bar assembly75304-G01Towing vehicle, includes items 9-291
9Tow bar75299-G011
10Upper pivot75302-G011
11Lower pivot75291-G011
12Bolt00410-G81/2 - 20 x 3" LG 1
13Washer00675-G31/2" (Stainless steel)1
14Spring washer75339-G011
15Washer00571-G51/2"1
16Lock nut11098-G81/2 - 201
17Latch stop75362-G011
18Washer75340-G013/8"2
19Pivot pin75360-G011
20Spring pin13571-G71
21Latch75303-G011
22Compression spring20852-G21
23Cup washer25661-G021
24Shoulder bolt13005-G45/16 - 18 x 2" LG 1
25Label75370-G01Warning1
26Male stop75338-G031
27Bolt12547-G46MM X 1 X 30MM LG1
28Lock washer00565-G85/16"1
29Acorn nut00520-G35/16 - 18 (Stainless steel)1
31Tow bar hitch assembly75308-G01Towed vehicle, includes items 32 - 481
32Hitch75305-G011
33Pivot bolt75292-G011
34Thrust washer75309-G012
35Washer75342-G013/4"1
36Castellated nut00518-G83/4 -161
37Cotter pin10387-G11/8" x 1 1/2" LG2
38Bearing75307-G011
39Lock washer00566-G63/4"1
40Nut00533-G83/4 - 161
42Tie rod assembly70905-G01includes items 43 - 471
43Threaded rod70903-G011
44Tie rod end70902-G01Left hand threads1
45Jam nut01069-G01M12 x 1.25-05 (Left hand threads)1
46Tie rod end70902-G02Right hand threads1
47Jam nut01069-G02M12 x 1.25-05 (Right hand threads)1
48Lock Nut00734-G17/16 - 142

Tow Bar – Casual

2003 Electric_28_Tow Bar - Casual

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Casual tow bar75033-G01Includes items 2 - 151
2Tow bar*1
3Tie rod75034-G01includes nut and cotter pin1
4Coupling75060-G011
5Lock pin*1
6Compression spring75065-G011
7Washer00922-G23/8"1
8Cotter pin10387-G23/32" x 1' LG1
9Safety pin75068-G011
10Wire rope14869-G51
11Ferrule16783-G13
12Ferrule75067-G011
13Hex head plug75035-G021
14Wire rope14869-G31
15Label75091-G01Warning1

Weather Protection – Golf Car

2003 Electric_29_Weather Protection - Golf Car

2003 Electric_29_Weather Protection - Golf Car_2

2003 Electric_29_Weather Protection - Golf Car_3

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Sun top kit75040-G**Golf car, includes items 2-191
2Sun top27069-G**1
3Front strut75045-G051
4Bolt01035-G015/16 - 18 x 2 1/4" LG4
5Lock washer00905-G85/16"4
6Spacer75048-G011/2"2
7Washer00570-G25/16"6
8Rear strut75046-G022
10Bolt00685-G75/16 - 18 x 1 3/4" LG (Stainless steel)4
11Washer01110-G035/16" (Stainless steel)8
12Teflon washer17255-G15/16"4
13Lock nut01109-G015/16 - 18 (Stainless steel)4
14Screw00753-G51/4 - 20 x 2' LG (Stainless steel)2
15Screw00753-G61/4 - 20 x 2 1/4" LG (Stainless steel)2
16Washer01110-G011/4" (Stainless steel)8
17Spacer75051-G014
18Lock nut00654-G21/4 - 20 (Stainless steel)4
19End cap19853-G11"2
21Rear view mirror kit19528-G2includes items 22 - 241
22Rear view mirror19496-G11
23Support bracket19502-G31
24Screw19527-G1#8 - 32 x 5/8" LG (Stainless steel)1
26Windshield kit75524-G01Golf car, includes items 27 - 331
27Windshield*1
28SashEGWHC1226" LG 2
29ScrewEGWHS121/4 - 20 x 1 3/4" LG (Stainles steel)2
30WasherEGWHW121/4" (Stainless steel)4
31Rubber grommetEGWHG132
32Lock nutEGWHN121/4 - 20 (Stainless steel)2
33LabelEGWHL14Safety1
35Fold down windshield kit75525-G01Golf car, includes items 36 - 441
36Windshield*1
37SashEGWHC1012" LG 2
38ScrewEGWHS121/4 - 20 x 1 3/4" LG (Stainless steel)2
39WasherEGWHW121/4" (Stainless steel)4
40Rubber grommetEGWHG132
41Lock nutEGWHN121/4 - 20 (Stainless steel)2
42Top grip137-0103/4" x 2"2
43Top grip fastener136-0082
44LabelEGWHL14Safety1
46Weather enclosure75078-G013 sided, recommended for vehicles with windwhields1
47Weather enclosure75079-G014 sided, recommended for vehicles without windshields 1
49Bag cover and rain curtain kit75191-G011

Wheels and Tires

2003 Electric_31_Wheels and Tires

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Tire and wheel assembly27772-G09Links 1 18 x 8.5 - 84
2Links 1 carlisle tire27772-G1018 x 8.5 - 81
3Wheel rim15169-G14 lug1
4Valve stem11657-G11
6Wheel and tire assembly27772-G03Turf saver 18 x 8.5 - 8, includes items 7 - 94
7Carlisle tire27772-G07Turf saver 18 x 8.5 - 81
8Wheel rim15169-G14 lug1
9Valve stem11657-G11
11Wheel and tire assembly27775-G01USA trail 6-ply 18.5 x 8.5 -8, includes items 12- 144
12Carlisle tire27775-G02USA trail, 6 ply 18 x 8.5 - 81
13Wheel rim15169-G14 lug1
14Valve stem11657-G11
16Wheel and tire assembly27772-G02Turf glide 18 x 8.5 - 8, includes items 17 - 194
17Carlisle tire27772-G06Turf glide 18 x 8.5 - 81
18Wheel rim15169-G14 lug1
19Valve stem11657-G11
21Wheel and tire assembly27772-G04Fairway 18 x 8.5 - 8, includes items 22 - 244
22Carlisle tire27772-G08Fairway 18 x 8.5 - 81
23Wheel rim15169-G14 lug1
24Valve stem11657-G11
26Lug nut14723-G11/2 - 2016
286" chrome hubcap 16042-G014
296" chrome hubcap 16042-G02Set of four1
308" chrome hubcap 14913-G014
318" chrome hubcap 14913-G02Set of four1
32Gold spoke hubcap19241-G024
33Gold spoke hubcap19241-G04Set of four1
34Silver spoke hubcap19241-G014
35Silver spoke hubcap19241-G03Set of four1
38Alloy wheel and tire assembly28780-G01Pro tour 18 x 8.00 - 10, includes items 39 - 424
39Kenda tire74825-G01Pro tour, 18 x 8.00 - 10 1
40Alloy wheel74828-G011
41Alloy wheel cap28781-G011
42Valve stem74826-G01Chrome1
44Alloy wheel lug nut28782-G0116

Specialty Products

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
1Battery Maintenance Kit25587-G01
2Seal Installation Tool18739-G1Rear Axle Shaft Seal
3Battery Set Discharger28251-G0136 Volt, 75 Amp
4Current Indicator16489-G2
5Digital Multi-Meter27481-G01
6Crimping Tool27765-G01
7Slide Hammer15947-G1Axle/Hub Removal
8Slide Hammer18753-G1Axle Removal Only
9Pen 3 Ounce - Hunter Green28432-G0289 Ml
10Pen 3 Ounce - Champagne Beige28432-G0189 Ml
11Pen 3 Ounce - White28432-G0589 Ml
12Pen 3 Ounce - Industrial Yellow28432-G0389 Ml
13Pen 3 Ounce - Orange28432-G0489 Ml
14Pen 3 Ounce - Steel Blue Pearl28432-G**89 Ml
15Pen 3 Ounce - Camouflage Paint75831-G01Three Pens89 Ml
16Aerosol 12 Ounce - Hunter Green28140-G09360 Ml
17Aerosol 12 Ounce - Champagne Beige28140-G15360 Ml
18Aerosol 12 Ounce - White28140-G03360 Ml
19Aerosol 12 Ounce - Industrial Yellow28140-G14360 Ml
20Aerosol 12 Ounce - Orange28140-G13360 Ml
21Aerosol 12 Ounce - Steel Blue Pearl28140-G**360 Ml
22Formula 40 Vinyl-Coat® - White28166-G01
23Plexus® Cleaner, 7 Ounce28433-G01For Windshields210 Ml
24Plexus® Cleaner, 13 Ounce28433-G02For Windshields380 Ml
25Battery Protector75500-G0114 Ounce Spray410 Ml
26White Lithium Grease75502-G0114 Ounce Spray410 Ml
27Penetrant/Lubricant75503-G0115 Ounce Spray440 Ml
28Multi-Purpose Cleaner & Degreaser75504-G0114 Ounce Spray410 Ml
29Multi-Purpose Hand Cleaner75505-G0132 Ounce Liquid950 Ml
30Battery Cleaner75506-G0132 Ounce With Trigger Sprayer950 Ml
31Bio-Degradeable Cleaner75507-G0132 Ounce With Trigger Sprayer950 Ml
32Multi-Purpose Value Pack75508-G01
33Battery Protector4 Ounce Spray120 Ml
34Penetrant/Lubricant4 Ounce Spray120 Ml
35White Lithium Grease4 Ounce Spray120 Ml
36Carburetor & Choke Cleaner4 Ounce Spray120 Ml

Options Accessories

Sl.No.Part DescriptionPart NumberNotesQuantityPurchase
12 Bag Attachment75183-G01Body -Footrest
24 Bag Attachment75335-G01Body - Accessories Continued
3Alloy Wheel And Tire Assembly28780-G01Wheels And Tires
4Alloy Wheel Cap28781-G01Wheels And Tires
5Alloy Wheel Lug Nut28782-G01Wheels And Tires
68" Chrome Hubcap14913-G*Wheels And Tires
76" Chrome Hubcap16042-G*Wheels And Tires
8Gold Spoke Hubcap19241-G*Wheels And Tires
9Silver Spoke Hubcap19241-G*Wheels And Tires
10Ashtray Kit75109-G02Body - Accessories Continued
11Bag Cover / Rain Curtain Kit75191-G01Weather Protection - Golf Car
12Convertible Carrier Kit75179-G*Body, Seating - Convertible Carrier
13Center Basket75003-G02Body - Accessories
14Cooler Jug And Bracket Kit75495-G01Body - Accessories Continued
15Cooler Box And Bracket Kit75344-G01Body - Accessories Continued
16Divot Repair Kit23300-G01Body - Accessories
17Hour Meter75113-G02Electrical System - Common
18Message Holder Kit75509-G01(Requires Sun Top) Body
19Message Holder Kit75496-G01(Requires Sun Top) Body
20Rear View Mirror19528-G2(Requires Sun Top) Weather Protection - Golf Car
21Sand Bottle28661-G01Body - Accessories
22Sand Rake14735-G1Body - Accessories Continued
23Sand Rake Holder75006-G01Body - Accessories Continued
24Shuttle 2+2 Kit74150-G**Body, Seating - Shuttle 2+2
25Side Basket75007-G**Body - Accessories
26Sun Top Kit75040-G**Weather Protection - Golf Car
27Sun Top Kit75123-G01Weather Protection - Shuttle 2+2
28Tow Bar Kit75033-G01Tow Bar - Casual
29Tow Bar Kit75310-G01Tow Bar - Permanent
30Turn Signal Kit75107-G02Electrical System - Common
31Weather Enclosure75078-G01(3 Sided) Weather Protection - Golf Car
32Weather Enclosure75492-G01(3 Sided) Weather Protection - Shuttle 2+2
33Weather Enclosure75079-G01(4 Sided) Weather Protection, Golf Car
34Windshield Kit75524-G01Weather Protection, Golf Car
35Windshield Kit75524-G02Weather Protection, Shuttle 2+2
36Windshield Kit75525-G01Weather Protection, Fold Down, Golf Car
37Windshield Kit75525-G02Weather Protection, Fold Down, Shuttle 2+2
