Commander 2200, Year 2001-2005

Accelerator – All Cables

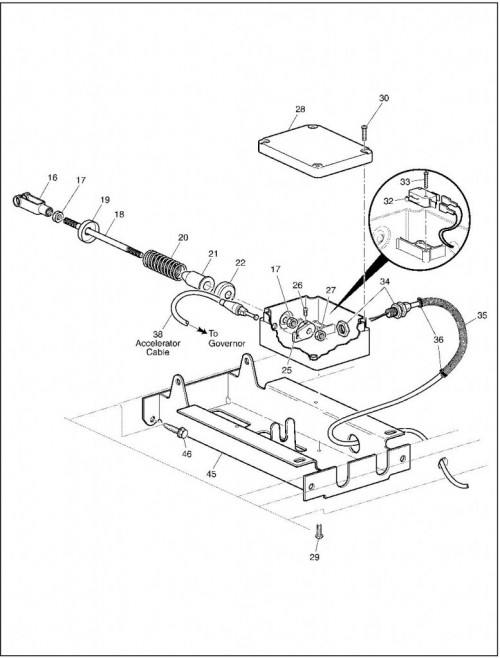

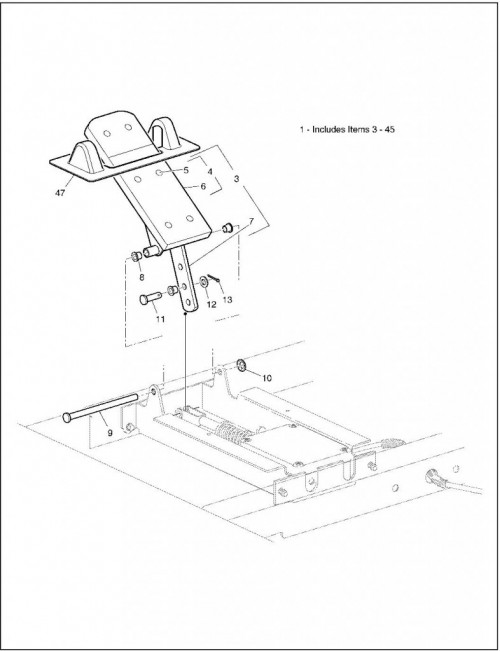

2001 Gas 1_Accelerator - All Cables

2001 Gas 1_Accelerator - All Cables_2

2001 Gas 1_Accelerator - All Cables_3

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Pedal box assembly72717-G02includes items 3 - 451
3Accelerator pedal assembly25799-G01includes items 4 - 71
4Accelerator pedal pad kit27844-G01includes items 5-61
5Oval rivet15766-G13/16" x 3/8" LG 6
6Accelerator pedal pad27512-G011
7Accelerator pedal*1
8Nylon bushing17838-G13
9Pedal pivot pin74432-G011
10Push nut12064-G69/32"1
11Clevis pin10386-G35/16" x 1" LG 1
12Teflon washer17255-G15/16"1
13Cotter pin10387-G33/32" x 3/4" LG1
16Clevis yoke10385-G4Adjustable1
17Lock nut00532-G45/16 - 242
18Accelerator rod72072-G011
19Spring retainer17677-G21
20Compression spring73046-G011
21Accelerator rod bushing17979-G11
22Spring retainer17677-G11
25Micro switch cam72716-G011
26Setscrew00487-G31/4 - 20 x 3/8" LG 1
27Lock nut00550-G45/16 - 241
28Pedal box and cover25853-G031
29Screw01051-G01#8 - 16 x 1/2" LG 4
30Screw00684-G6#8 - 32 x 3/4" LG 4
32Micro switch25861-G011
33Screw01050-G01#4 - 20 x 5/8" LG 2
34Wire harness72201-G04Pedal box1
35Loom flex17313-G1BulkAR
36Wire tie17618-G12
38Accelerator cable72713-G021
40Accelerator cable bushing72706-G011
41Compression spring72707-G011
42Cup washer25727-G021
43Lock nut00734-G5#10 - 321
45Accelerator pedal bracket70116-G011
46Bolt00715-G25/16 - 18 x 13/16" LG 4
47Pedal pivot cover70135-G011
49Accelerator cable mounting bracket72701-G011
50Lock nut26830-G01M8 x 1.25 MM2
51Throttle cable mounting bracket72703-G011
52Lock nut26830-G01M8 x 1.25 MM2
55Governor arm72708-G011
56Lock nut26830-G01M8 x 1.25 MM1
58Clamp11845-G31
59Lock nut26830-G01M8 x 1.25 MM1
61Accelerator cable bracket72055-G011
62Wire tie17618-G11
64Governor cover/decal assembly74457-G01includes items 65, 661
65Governor cover72705-G011
66Decal24880-G01Warning - governor1
67Bonded washer00915-G11/4"2
68Rivet14601-G113/16" x 9/16" LG2
70Throttle cable72714-G011
71Wire tie17618-G11

Accelerator – Cable and Linkages

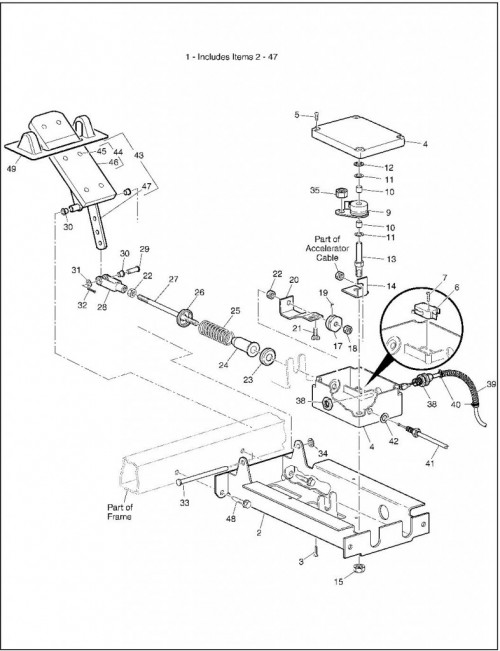

2001 Gas 2_Accelerator - Cable and Linkages

2001 Gas 2_Accelerator - Cable and Linkages_2

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Pedal box assembly72062-G03includes items 2 - 471
2Accelerator pedal bracket70116-G011
3Screw01051-G01#8 - 16 x 1/2" LG 4
4Pedal box and cover25853-G021
5Screw00684-G6#8 - 32 x 3/4" LG 4
6Micro switch25861-G011
7Screw01050-G01#4 - 20 x 5/8" LG 2
9Control arm72066-G011
10Bearing23860-G12
11Nylon washer24621-G15/16"2
12Push nut12064-G15/16"1
13Pivot rod25768-G011
14Pivot basket72199-G011
15Lock nut14390-G13/8 - 241
17Micro switch cam72198-G031
18Lock nut00550-G45/16 - 241
19Setscrew00487-G31/4 - 20 x 3/8" LG 1
20Control arm link72074-G011
21Shoulder bolt72225-G01#10 - 24 x 11/16" LG 1
22Lock nut00532-G45/16 - 242
23Spring retainer17677-G11
24Accelerator rod bushing17979-G11
25Compression spring73046-G011
26Spring retainer17677-G21
27Accelerator rod72072-G011
28Clevis yoke10385-G4Adjustable1
29Clevis pin10386-G35/16" x 1" LG 1
30Nylon bushing17838-G13
31Teflon washer17255-G15/16"1
32Cotter pin10387-G33/32" x 3/4" LG 1
33Pedal pivot pin74432-G011
34Push nut12064-G69/32"1
35Lock nut14390-G10#10 - 241
36Wheel bearing grease12730-G1Not illustratedA/R
38Wire harness72201-G02Pedal box1
39Loom flex17313-G1BulkAR
40Wire tie17618-G12
41Accelerator cable72065-G021
42Washer00559-G85/16"1
43Accelerator pedal assembly25799-G01includes items 44 - 471
44Accelerator pedal pad kit27844-G01includes items 45 - 461
45Oval rivet15766-G13/16" x 3/8" LG 6
46Accelerator pedal pad27512-G011
47Accelerator pedal*
48Bolt00715-G25/16 - 18 x 13/16" LG 4
49Pedal pivot cover70135-G011
51Choke cable72401-G02With nuts1
52Lock washer00568-G49/16"1
53Nut00545-G49/16 - 181
55Retainer72155-G011
56Choke cable adapter72154-G011
58Jam nut00544-G45/16 - 242
59Carburetor linkage rod25737-G01includes items 60 - 621
60Adjusting rod23722-G1Short1
61Ball joint socket24465-G12
62Nut00526-G4#10 - 322
64Carburetor linkage bellcrank25760-G01includes items 65 - 721
65Carburetor pivot25759-G011
66Bearing23860-G12
67Nylon washer24621-G15/16"2
68Pivot rod25768-G011
69Push nut12064-G15/16"1
70Ball joint ball24479-G12
71Lock washer00565-G5#102
72Nut00526-G4#10 - 322
73Pivot bracket72197-G011
74Lock nut14390-G13/8 - 241
75Bolt00414-G81/4 - 20 x 1" LG 2
76Lock nut14390-G41/4 - 202
78Throttle linkage rod assembly72254-G01Includes items 79 - 811
79Adjusting rod72609-G01Long1
80Ball joint socket24465-G12
81Nut00526-G4#10 - 322
83Governor pivot bracket assembly25702-G01includes items 84 - 941
84Bellcrank bracket25655-G011
85Lock nut14390-G13/8 - 241
86Governor pivot assembly25763-G01includes items 87 - 941
87Governor pivot25762-G011
88Bearing23860-G12
89Nylon washer24621-G15/16"2
90Pivot rod25768-G011
91Push nut12064-G15/16"1
92Ball joint ball24479-G12
93Lock washer00565-G5#102
94Nut00526-G4#10 - 322
96Bolt00276-G65/16 - 24 x 3/4" LG 2
97Lock washer00565-G85/16"2
99Governor linkage rod25737-G03includes items 100 - 1021
100Adjusting rod23722-G11
101Ball joint socket24465-G12
102Nut00526-G4#10 - 322
104Governor bellcrank assembly25690-G01includes items 105 - 1171
105Governor bellcrank25765-G011
106Ball joint ball24479-G11
107Lock nut00734-G5#10 - 321
108Lock nut14390-G41/4 - 201
109Governor bracket assembly22751-G2includes items 110 - 1171
110Governor bracket22752-G11
111Governor rod25274-G11
112Bushing22754-G11
113Cup washer25661-G012
114Compression spring23578-G11
115Bushing22754-G21
116Governor adjuster23859-G11
117Nut00526-G4#10 - 321
118Setscrew00491-G41/4 - 20 x 1/2" LG 2
119Spring25738-G011
120Safety seal25286-G13/8"1
121Push nut12064-G33/16"1
123Accelerator cable bracket25653-G011
124Lock washer26826-G018 MM2
125Nut26827-G01M8 X 1.25 MM2
127Accelerator cable bracket72055-G011
128Wire tie17618-G17

Air Filter

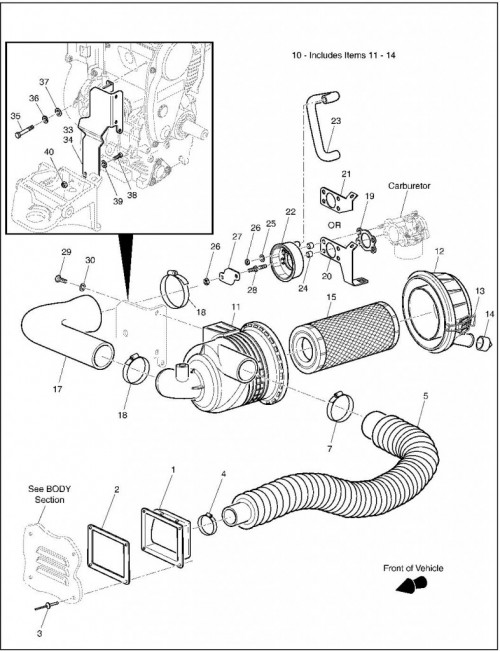

2001 Gas 3_Air Filter

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Inlet adapter72416-G011
2Gasket72415-G011
3Rivet71055-G013/16" x 3/8" LG 4
4Clamp11391-G21
5Hose72637-G02Convoluted1
7Hose clamp11391-G11
10Air cleaner canister assembly72607-G01includes items 11 - 141
11Air cleaner canister72598-G011
12Air cleaner cover72599-G011
13Air cleaner latch72604-G012
14Air cleaner dus collector28462-G011
15Air cleaner element28463-G011
17Hose72592-G01Air filter to carburetor1
18Hose clamp11391-G62
19Carburetor gasket26727-G012
20Choke / throttle bracket72739-G011
21Choke bracket26728-G011
22Carburetor adapter72591-G011
23PCV hose72151-G011
24Carburetor mounting spacer23726-G114
25Washer51400-G11/4"2
26Nut13632-G1M6 x 14
27Carburetor baffle72605-G011
28Stud72514-G012
29Bolt12583-G3M8 x 1.25 x 16 MM2
30Lock washer00565-G85/16"2
33Air filter bracket72596-G01Linkage actuated carburetor1
34Air filter bracket75878-G01Cable actuated carburetor1
35Bolt12547-G3M6 X 1MM X 20MM LG1
36Lock washer00905-G71/4"1
37Washer00559-G71/4"1
38Bolt00415-G21/4 - 20 x 1 1/4" LG 2
39Washer00605-G071/4"2
40Lock nut14390-G41/4 - 202

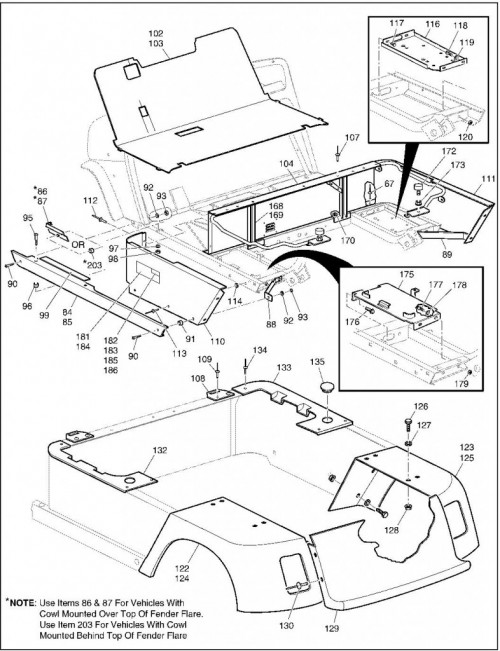

Body

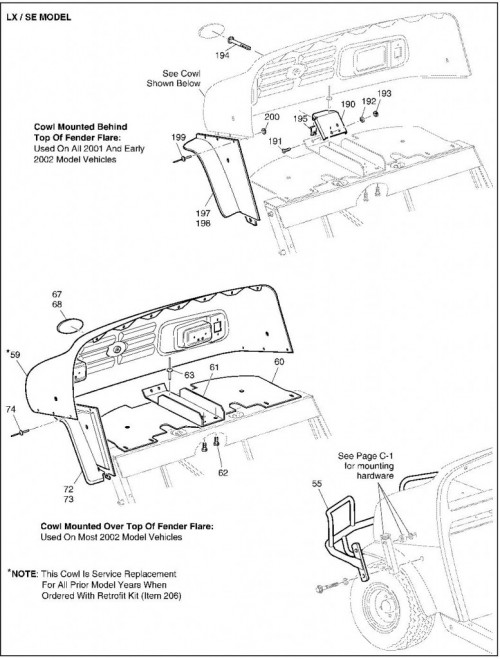

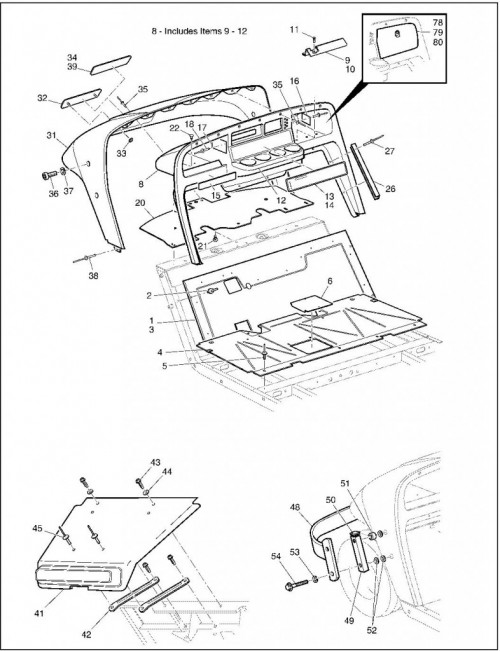

2001 Gas 4_Body

2001 Gas 4_Body_2

2001 Gas 4_Body_3

2001 Gas 4_Body_4

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Upper floorpan70662-G01Axle mounted steering1
2Rivet14601-G113/16" x 9/16" LG9
3Upper floorpan71510-G01Frame mounted steering1
4Lower floorpan70451-G011
5Rivet14601-G113/16" x 9/16" LG 7
6Access cover70452-G011
8Instrument panel assembly71151-G01includes items 9 - 121
9Deflector71153-G01Passenger side1
10Deflector71154-G01Driver side1
11Screw00614-G5#8 - 18 x 5/8" LG 6
12Instrument panel insert71158-G01Four cup1
13Label71177-G01Safety, text1
14Label74409-G01Safety, pictograph 1
15Label74443-G01Anti-rollback1
16Serial number plate*1
17Capacity plate*1
18Rivet01041-G015/32" x 7/8" LG 4
20Splash panel71413-G011
21Ratchet fastener16816-G21/4" x 3/4" LG 1
22Ratchet fastener16816-G21/4" x 3/4" LG 4
26Vinyl trim71115-G012
27Rivet71055-G013/16" x 1" LG 10
31cowl71051-G**1
32Nameplate71037-G02E-Z-GO1
33Pushnut12064-G33/16"2
34Nameplate74403-G01Cushman1
35Rivet71055-G013/16" x 1" LG 9
36Bolt71056-G015/16 - 18 x 5/8" LG 4
37Washer00570-G25/16"4
38Rivet14601-G135/32" x 9/16" LG 2
39Nameplate26947-G01Jacobsen1
41Front shield27166-G021
42Front shield brace70725-G012
43Screw01038-G011/4 - 20 x 1/2" LG 4
44Washer16469-G11/4"2
45Rivet, KTR01057-G011/4" x 1" LG 2
48Front bumper74040-G011
49Spacer tube74037-G012
50End cap19859-G13/4"2
51Spacer75048-G011/2"2
52Washer00570-G25/16"6
53Lock washer00905-G85/16"4
54Bolt01035-G025/16 - 18 x 2 1/2" LG 4
55Bumper74265-G01LX / SE1
59Cowl71468-G**LX / SE1
60Splash panel71413-G011
61Cowl support bracket71101-G011
62Self tapping screw71102-G021/4 - 20 x 1/2" LG 3
63Rivet71055-G023/16" x 1 1/8" LG 1
67Nameplate71289-G01E-Z-GO, oval 1
68Nameplate74401-G01Cushman, oval 1
72Fender flare71338-G01Driver side1
73Fender flare71338-G02Passenger side1
74Rivet71055-G013/16" x 1" LG 6
78Glove box doors75459-G01Both sides1
79Glove box doors75459-G02Driver side1
80Glove box doors75459-G03Passenger side1
84Rocker panel71439-G01Driver side1
85Rocker panel71439-G02Passenger side1
86Fender spacer71424-G01Driver side1
87Fender spacer71424-G02Passenger side1
88Brace71440-G01Driver side1
89Brace71440-G02Passenger side1
90Screw00789-G2#10 - 24 x 1 1/4" LG 4
91Spacer23726-G21/4"2
92Washer00660-G5#104
93Lock nut11098-G7#10 - 244
95Screw16705-G11/4 - 20 x 1" LG 4
96Spacer23726-G21/4"4
97Washer00559-G71/4"4
98Lock nut14390-G41/4 - 204
99Sill plate tread71764-G012
102Floormat70048-G**Frame mounted steering1
103Floormat70663-G**Axle mounted steering1
104Seat support panel71976-G**W/driver side louvers1
107Rivet10570-G105/32" x 9/16" LG 8
108Seat hinge plate71609-G012
109Rivet10570-G113/16" x 3/4" LG 4
110Side panel71674-G01Driver side1
111Side panel71674-G02Passenger side1
112Rivet10570-G105/32" x 9/16" LG 4
113Rivet10570-G121/4" x 1/2" LG 4
114Washer16469-G71/4"4
116Splash panel70244-G021
117Bolt00715-G25/16 - 18 x 13/16" LG 2
118Bolt00438-G85/16 - 18 x 1" LG 2
119Washer00559-G85/16"2
120Lock nut11098-G65/16 - 182
122Fender74297-G01Driver side1
123Fender74297-G02Passenger side1
124Fender with taillight74297-G03Driver side1
125Fender with taillight74297-G04Passenger side1
126Bolt00414-G71/4 - 20 x 7/8" LG 12
127Washer00559-G71/4"12
128Lock nut11027-G21/4 - 2012
129Rear panel71587-G011
130Rivet71055-G013/16" x 1" LG 4
132Seat filler panel71588-G01Driver side1
133Seat filler panel71588-G02Passenger side1
134Rivet10570-G105/32" x 9/16" LG 6
135Hole plug20271-G32"2

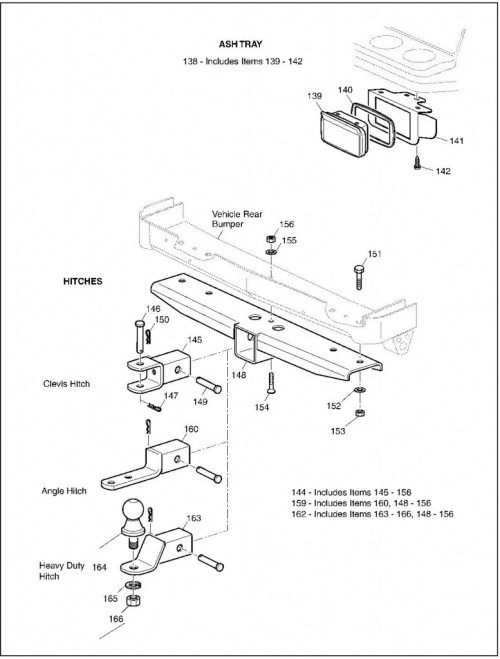

138Ash tray kit75109-G02includes items 139 - 1421
139Ash tray27731-G011
140Gasket27736-G011
141Bracket75108-G011
142Screw00100-G4#10 - 16 x 1/2" LG 4
144Clevis hitch kit74270-G07includes items 145 - 1561
145Clevis hitch74338-G011
146Clevis pin14443-G71/2" x 2 1/2" LG 1
147Cotter pin19314-G12 1/2" LG 1
148Hitch receiver74348-G011
149Clevis pin21317-G015/8" x 3" LG 1
150Cotter pin21683-G115/32" x 2 11/16" LG 1
151Bolt00463-G47/16 - 14 x 1 1/2" LG 4
152Washer00922-G37/16"4
153Lock nut00734-G17/16 - 144
154Screw00198-G85/16 - 18 x 1" LG 1
155Washer00569-G25/16"1
156Lock nut11098-G65/16 - 181
159Angle hitch kit74270-G05includes items 160 and 148 - 1561
160Angle hitch74339-G011
162Heavy duty hitch kit74270-G03includes items 163-166 and 148-1561
163Heavy duty hitch74351-G011
164Hitch ball31757-G11 7/8"1
165Lock washer00566-G63/4"1
166Nut00702-G113/4 - 161
168Seat frame70384-G02for dual cable direction selector1
169Seat frame70384-G03for single cable direction selector1
170Screw70200-G013/8 - 16 x 1/4" LG 4
172Adjustable bumper70113-G012
173Lock nut11027-G15/16 - 182
175Battery tray70245-G011
176Bolt00715-G25/16 - 18 x 13/16" LG 2
177Bolt00438-G85/16 - 18 x 1" LG 2
178Washer00571-G25/16"2
179Lock nut11098-G65/16 - 182
181Decal35062-G01Workhorse2
182Decal35430-G0212002
183Decal35430-G011200 LX2
184Decal74407-G01Commander2
185Decal74416-G0222002
186Decal74416-G012200 SE2
190Cowl support brace71463-G011
191Screw00740-G4#10 - 32 x 1/2" LG 2
192Washer00559-G5#102
193Lock nut00921-G8#10 - 322
194Screw16705-G91/4 - 20 x 1 1/4" LG 1
195Retainer nut14776-G1J' type, 1/4 - 201
197Fender flare75815-G01Driver side1
198Fender flare75815-G02passenger side1
199Rivet71045-G015/32" x 3/4" LG 6
200Washer00559-G4#86
203Spacer23726-G21/4"2
206Cowl retrofit service kit73464-G01includes items 72 -74, 86 and 871

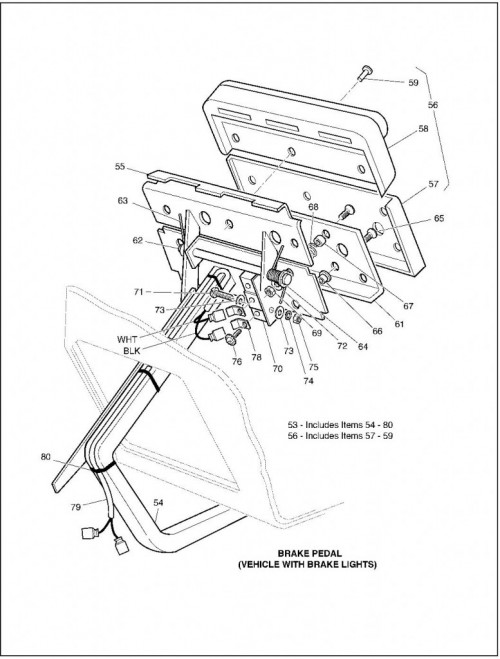

Brakes

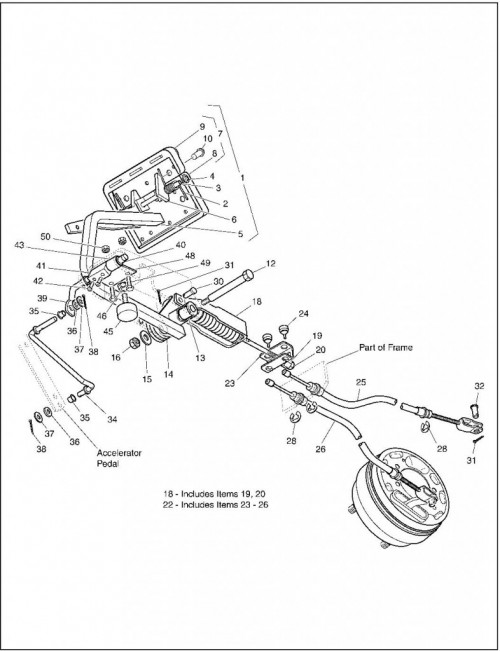

2001 Gas 5_Brakes

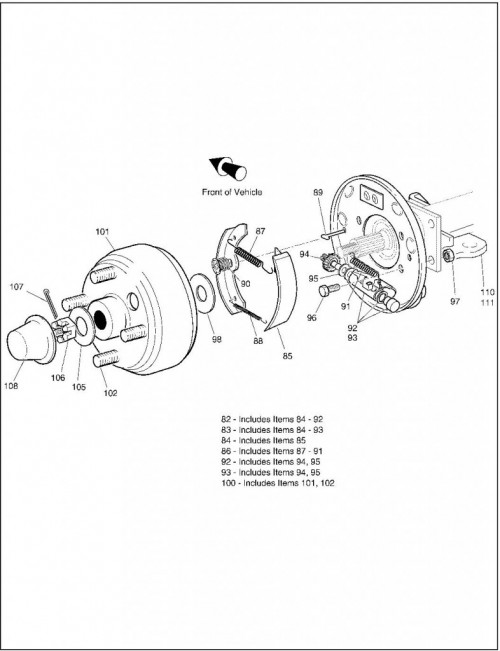

2001 Gas 5_Brakes_2

2001 Gas 5_Brakes_3

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Brake pedal assembly70612-G01without brake lights, includes items 2-101
2Torsion spring70681-G012
3Pivot pin70682-G011
4Pushnut01071-G015/16"1
5Brake pedal*1
6Park brake pedal70611-G011
7Brake/park brake pedal pad kit70274-G01includes items 8-101
8Service brake pad*1
9Park brake pedal pad*1
10Oval rivet15766-G13/16" x 3/8" LG 9
12Shoulder bolt70582-G013/8 - 16 x 4" LG 1
13Flanged bushing70581-G012
14Torsion spring70676-G011
15Washer00643-G13/8"1
16Lock nut11098-G53/8 - 161
18Compensator assembly70272-G04includes items 19, 201
19Spherical nut00963-G015/16 - 241
20Lock nut11098-G95/16 - 241
22Equalizer and brake cable assembly70969-G05includes items 23 - 261
23Equalizer bracket28082-G011
24Brake compensator bumper28083-G012
25Brake cable*Driver side1
26Brake cable*Passenger side1
28Retaining ring12305-G14
30Clevis pin10386-G35/16" x 1" LG 3
31Cotter pin10387-G33/32" x 3/4" LG 3
32Clevis pin14443-G25/16" x 3/4" LG 2
34Kick-opp link70601-G011
35Nylon bushing17838-G12
36Teflon washer20835-G13/8"2
37Washer00559-G85/16"2
38Cotter pin10387-G33/32" x 3/4" LG 2
39Kick-off cam pivot70098-G011
40Flanged bearing10097-G62
41Kick-off cam70587-G011
42Setscrew71215-G011/4 - 20 x 1/2" LG 2
43Spacer14134-G41
45Adjustable bumper70113-G011
46Lock nut11027-G15/16 - 181
48Catch bracket70080-G011
49Bolt00414-G61/4 - 20 x 3/4" LG 2
50Lock nut00891-G21/4 - 202
53Brake pedal assembly70690-G01With brake lights, includes items 54 - 801
54Brake pedal*1
55Park brake pedal70611-G011
56Brake / park brake pedal pad kit70274-G01includes items 57 - 591
57Service brake pad*1
58Park brake pad*1
59Oval rivet15766-G13/16" x 3/8" LG 9
61Brake pedal plate70258-G021
62Pivot pin70682-G011
63Torsion spring70681-G012
64Pushnut01071-G015/16"1
65Screw00737-G8#10 - 24x 1" LG 4
66Rubber nut00739-G1#10 - 242
67Brake pedal standoff22362-G32
68Conical spring27137-G012
69Lock nut11098-G7#10 - 242
70Micro switch10606-G81
71Screw00957-G1#6 - 32 x 1 1/4" LG 2
72Washer00559-G5#102
73Washer00559-G3#64
74Lock washer00565-G3#62
75Nut00525-G5#6 - 322
76Screw and lock washer13514-G1#62
78Faston tab14628-G12
79Wire harness24605-G1Brake light1
80Wire tie17618-G13
82Brake assembly70793-G01Driver side, includes items 84 - 921
83Brake assembly70793-G02Passenger side, includes items 84-91, 931
84Brake shoe kit70794-G01Includes item 852
85Brake shoe*2
86Brake spring kit27944-G01Includes items 87 - 912
87Upper spring*1
88Lower spring*1
89Pin*2
90Cup and spring*2
91Adjuster spring*1
92Brake adjuster kit72582-G01Driver side, includes items 94, 951
93Brake adjuster kit72582-G02Passenger side, incl. items 94, 951
94Adjuster*1
95Teflon washer*2
96Bolt17083-G25/16 - 24 x 1" LG 8
97Lock nut15126-G15/16 - 248
98Inner brake drum washer21809-G11 5/16" OD X 1" ID X 1/32"2
100Brake drum assembly21807-G1includes items 101 - 1022
101Brake drum*1
102Lug bolt19862-G11/2 - 204
105Outer brake drum washer21830-G12
106Slotted nut00518-G83/4 - 162
107Cotter pin10387-G11/8" x 1 1/2" LG 2
108Spindle cap74175-G012
110Brake cable bracket72036-G02passenger side1
111Brake cable bracket72237-G02Driver side1

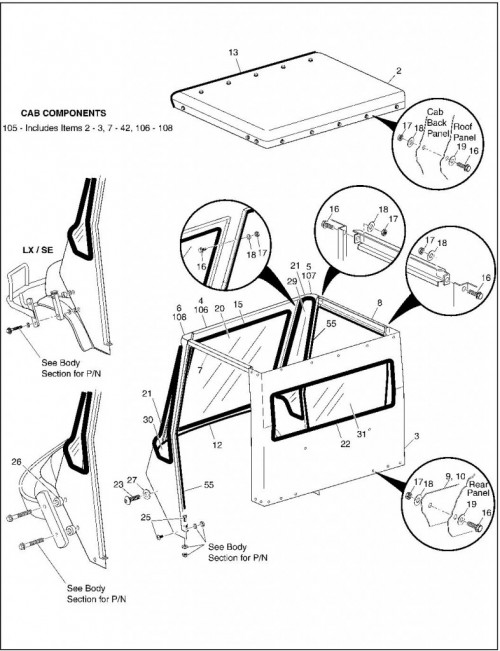

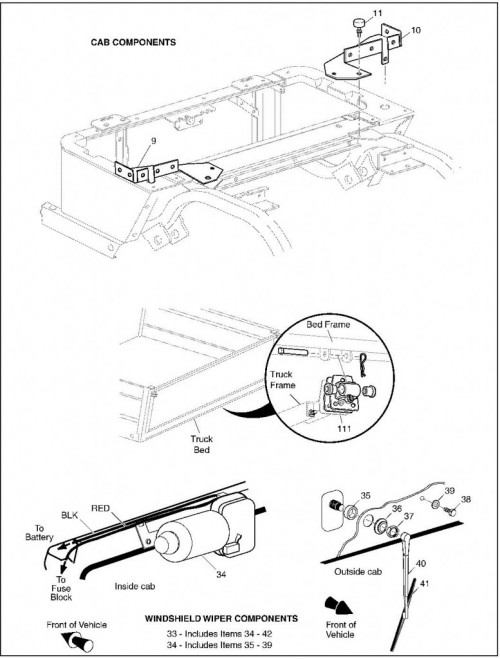

Cab (Early Production)

2001 Gas 6_Cab (Early Production)

2001 Gas 6_Cab (Early Production)_2

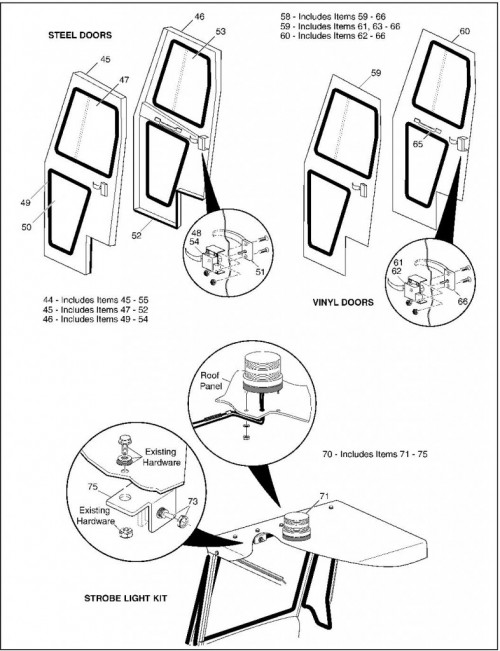

2001 Gas 6_Cab (Early Production)_3

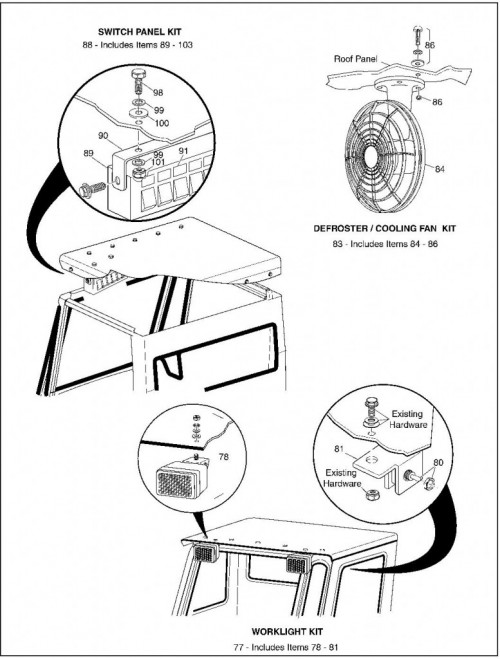

2001 Gas 6_Cab (Early Production)_4

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Steel cab*Without doors1
2Roof panel74228-G0*A1
3Rear panel74228-G0*B1
4Windshield panel74228-G0*C1
5Front corner panel74228-G0*DPassenger side1
6Front corner panel74228-G0*EDriver side1
7Receiver74228-G0*FDriver side1
8Receiver74228-G0*GPassenger side1
9Lower mounting bracket74228-G0*HDriver side1
10Lower mounting bracket74228-G0*IPassenger side1
11Adjustable bumper70113-G012
12Front panel cowl seal gasket1P004A85" LG 1
13Roof trim1P004D50"1
15Front windshield mounting gasket6E03.1
16Bolt6E03A3/8 - 16 x 7/8" LG 44
17Lock nut6E03B3/8 - 1644
18Washer6E03C3/8"44
19Nylon washer6E03D3/8"26
20Front panel window6E03E1
21Front corner panel mounting gasket6E03H2
22Rear panel window mounting gasket6E03J1
23Allen button head bolt6E03S4
25Bolt6E03U1/4 - 20 x 1 1/2" LG 4
26Nylon spacer6E03V1/4"4
27Washer6E03W5/16"4
29Front corner panel window6E05APassenger side1
30Front corner panel window6E05BDriver side1
31Rear panel window6E05C1
33Windshield wiper kit74244-G01includes items 34 - 421
34Wiper motor9PWM85includes items 35 - 391
35Spacer*1
36Shaft cover*Seal1
37Nut*1
38Bolt*1
39Washer*1
40Wiper arm9PWA1
41Windshield wiper blade9PWB1
42Electrical hardware kit9E003.not illustrated1
44Steel door kit74301-G0*includes items 45 - 551
45Steel door74301-G0*ADriver side, includes items 47 - 521
46Steel door74301-G0*BPassenger side, includes items 49 - 541
47Sliding door window assembly6E05DDriver side1
48Inside door latch9DHSLLDriver side1
49Lower door window mounting gasket6E03P1
50Lower door window6E05F1
51Outside door handle9DHOS1Key locking2
52Lower door seal gasket1P004B43" LG 1
53Sliding door window assembly6E05EPassenger side1
54Inside door latch9DHSLRPassenger side1
55Door seal gasket1P004C123" LG2
56Replacement door hinge kit9P001ANot illustratedAR
58Vinyl door kit74242-G01includes items 59 - 661
59Vinyl door9DVK-LDriver side, includes items 61, 63-661
60Vinyl door9DVK-RPassenger side, includes items 62 - 661
61Inside door latch9DHSLLDriver side1
62Inside door latch9DHSLRPassenger side1
63Door check9DCKNot illustrated1
64Door striker9DSTK1Not illustrated1
65Door grab handle9DGH11
66Outside door handle9DHOS1Key locking1
67Replacement door hinge9PSSHLDriver side, not illustrated1
68Replacement door hinge9PSSHRPassenger side, not illustrated1
70Strobe light kit74245-G01includes items 71 - 751
71Strobe lens9PSLRL1
72Electrical hardware kit9E001.Not illustrated1
73Toggle switch9E002.1
74Replacement bulb9PSLRBNot illustrated1
75Bracket9PB0011
77Work light kit74247-G01Includes items 78 - 811
78Work light9LW1Aincludes hardware2
79Electrical hardware kit9E001.Not illustrated1
80Toggle switch9E002.1
81Bracket9PB0011
83Defroster / cooling fan kit74248-G01includes items 84 - 861
84Fan9PDF1
85Electrical hardware kit9E001.Not illustrated1
86Hardware kit9PFHK1
88Switch panel kit74250-G01includes items 89 - 1031
89Switch panel9PSF1-0011
90Mounting bracket and hardware9PSF1-0021
91Adhesive labels9PSF1-0031
923 AMP fuse9PSF1-004Not illustrated2
935 AMP fuse9PSF1-005Not illustrated3
947.5 AMP fuse9PSF1-006Not illustrated1
95Flex loom9PSF1-0075/8" x 10 FT LG (Not illustrated)1
964 way base tie9PSF1-008Not illustrated6
97Wire tie9PSF1-009Not illustrated14
98Bolt9PSF1-0101/4 - 20 x 7/8" LG 2
99Washer9PSF1-0111/4"4
100Nylon washer9PSF1-0121/4"2
101Lock nut9PSF1-0131/4 - 202
10210 GA wire9PSF1-014Red 8", not illustrated1
10310 GA wire9PSF1-015Black 8", not illustrated1
105Steel cab*Without doors, LX/SE1
106Windshield panel74227-G0*C1
107Front corner panel74227-G0*DPassenger side1
108Front corner panel74227-G0*EDriver side1
111Bed spacer6E03T2

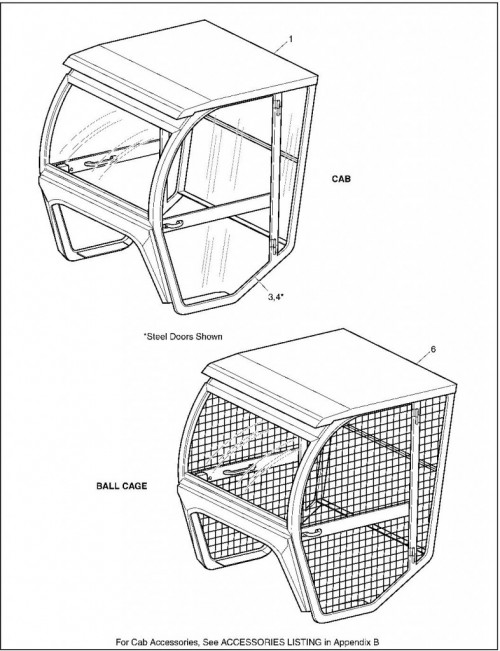

Cab (Late Production)

2001 Gas 7_Cab (Late Production)

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Steel cab75854-G**Without doors, replacement parts and accessories may be obtained from curtis cab, inc.1
3Vinyl door kit75855-G011
4steel door kit75856-G**1
6Ball cage75853-G011

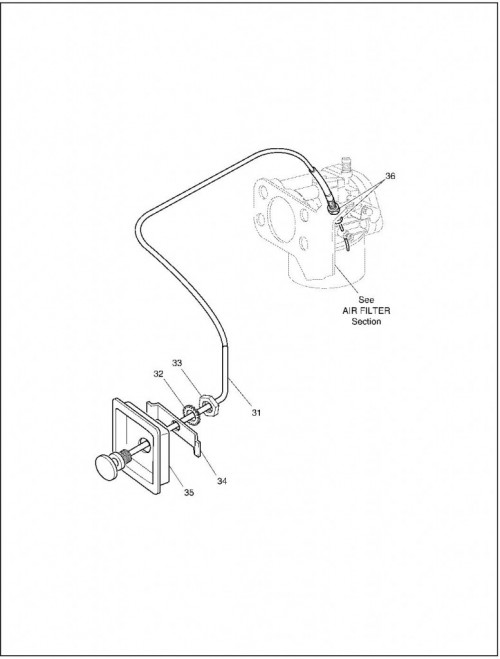

Carburetor and Choke

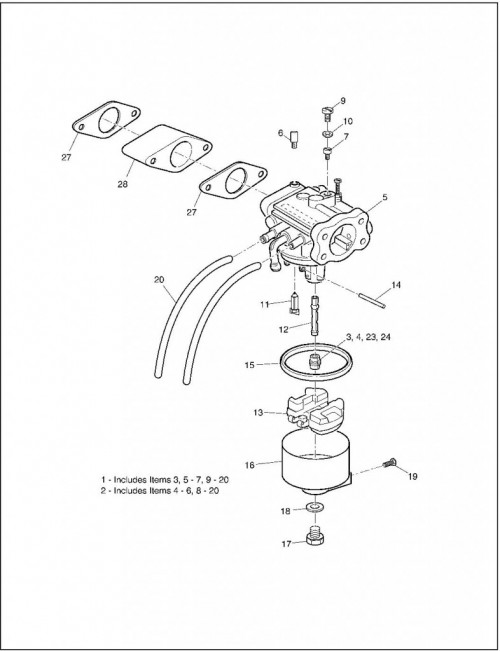

2001 Gas 8_Carburetor and Choke

2001 Gas 8_Carburetor and Choke_2

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Carburetor assembly72558-G01For fuji engine p/n EH35CPG5032, includes items 3,5-7, 9-201
2Carburetor assembly72558-G05For fuji engine p/n EH35CPG5033, includes items 4-7, 8-201
3Main jet26646-G09#921
4Main jet26646-G07#901
5Carburetor body*1
6Pilot screw*1
7Pilot jet26649-G05#461
9Plug26841-G011
10Gasket72306-G011
11Needle valve72578-G011
12Main nozzle*1
13Float26648-G011
14Float pin26840-G011
15Float bowl gasket26843-G011
16Float chamber26844-G011
17Bowl screw26839-G011
18Bowl gasket26838-G011
19Drain screw*1
20Vent tube26650-G012
23Main jet26646-G01#88 (For elevations of 3000 FT - 6000 FT)1
24Main jet26646-G08#86 (For elevations of 6000 FT - 10000 FT)1
27Carburetor mount gasket26726-G012
28Carburetor insulator72311-G011
31Choke cable72401-G02With nuts1
32Lock washer00568-G49/16"1
33Nut00545-G49/16 - 181
34Retainer72155-G011
35Choke cable adapter72154-G011
36Jam nut00544-G45/16 - 242

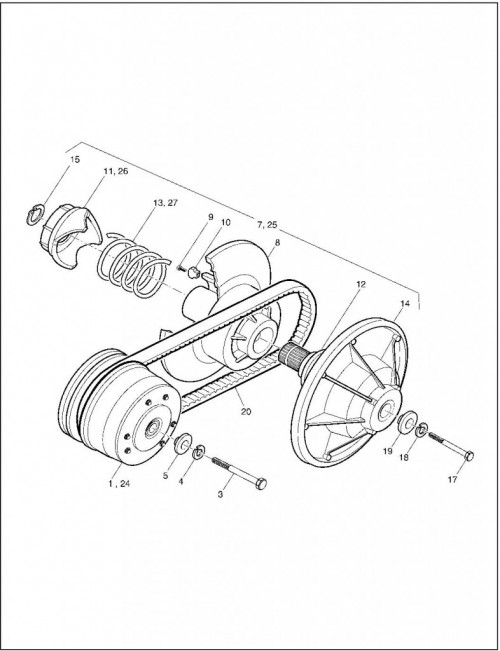

Clutch

2001 Gas 9_Clutch

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Drive clutch26952-G011
3Bolt00473-G97/16 - 20 x 6 1/2" LG 1
4Lock washer00566-G27/16"1
5Pilot washer25757-G11
7Driven clutch assembly26301-G02Includes items 8 - 151
8Movable sheave*includes items 9 - 101
9Screw00979-G01#10 - 24 x 7/8" LG 3
10Ramp button26479-G013
11Cam*1
12Spacer24600-G11
13Compression spring26304-G011
14Sheave and post*1
15Heavy duty retaining ring27270-G011
17Bolt00441-G85/16 - 18 x 4" LG 1
18Lock washer00565-G85/16"4
19Retaining washer25756-G11
20Drive belt72328-G01Severe duty1
24Drive clutch26952-G01High altitude1
25Driven clutch25632-G03High altitude, includes items 8,12,14,15,26,271
26Cam*1
27Compression spring25612-G11

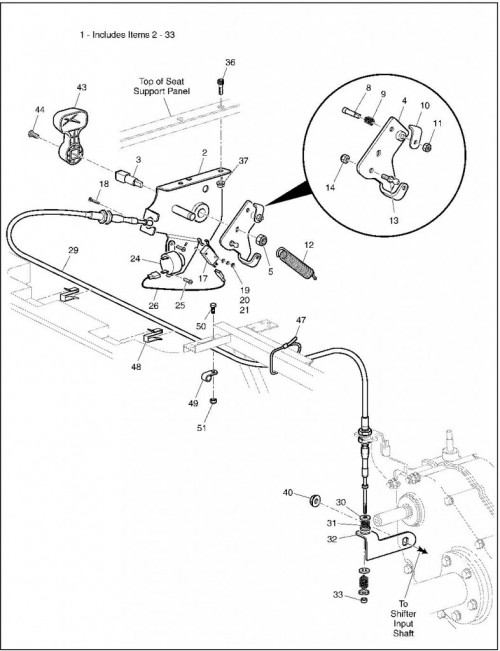

Direction Selector – Single Cable

2001 Gas 10_Direction Selector - Single Cable

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Direction selector assembly72721-G03includes items 2-331
2Direction selector bracket74456-G011
3Direction selector shaft70233-G011
4Direction selector cam72738-G011
5Lock nut14390-G13/8 - 241
8Neutral lock pin72724-G011
9Compression spring72733-G013/8" x 5/8" LG 1
10Neutral lock latch72729-G011
11Lock nut00734-G21/4 - 281
12Extension spring28574-G011
13Ball stud72732-G011
14Lock nut00734-G5#10 - 321
17Micro switch72736-G011
18Screw01062-G01#4 - 40 x 1" LG 2
19Washer00559-G1#42
20Lock washer00565-G1#42
21Nut00526-G2#4 - 402
24Reverse warning buzzer73290-G031
25Screw01063-G01#6 - 32 x 3/8" LG 2
2618 GA wire25978-G345Red 7"1
29Shifter cable72734-G031
30Cup washer25727-G014
31Compression spring72735-G0119/32" x 1" LG 2
32Shifter arm74455-G011
33Lock nut00734-G5#10 - 321
36Screw70227-G011/4 - 20 x 7/8" LG 2
37Lock nut11027-G21/4 - 202
40Lock nut26830-G01M8 x 1.25 MM1
43Direction selector handle71205-G011
44Screw00740-G4#10 - 32 x 1/2" LG (stainless steel)1
47Wire tie31539-G11
48Cable clip01072-G012
49Clip11845-G53/8"1
50Bolt00414-G61/4 - 20 x 3/4" LG 1
51Lock nut14390-G41/4 - 201

Direction Selector – Dual Cable

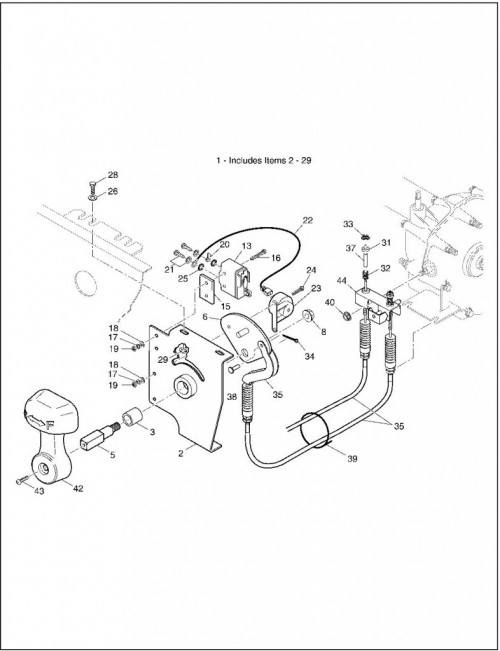

2001 Gas 11_Direction Selector - Dual Cable

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Direction selector assembly70594-G02includes items 2 - 291
2Direction selector bracket25684-G011
3Bushing25664-G11
5Direction selector shaft27537-G011
6Direction selector cam25745-G011
8Lock nut14390-G13/8 - 241
13Micro switch10606-G11
15Spacer27151-G011
16Screw00645-G2#6 - 32 x 1 1/4" LG 2
17Lock washer00565-G3#64
18Washer00559-G3#64
19Nut00525-G5#6 - 324
20Faston tab14628-G11
21Screw and washer assembly*2
2218 GA wire25978-G234Red 6"1
23Reverse warning buzzer73290-G031
24Screw00138-G5#6 - 32 x 5/8" LG 2
25Lock washer00567-G3#62
26Washer00559-G71/42
28Bolt00414-G61/4 - 20 x 3/4" LG 2
29Lock nut11027-G21/4 - 202
31Cup washer25727-G014
32Spring27764-G012
33Lock nut11098-G7#10 - 242
34Cotter pin10387-G81/16" x 3/4" LG 2
35Shifter control cable72341-G012
37Spacer23726-G52
38Clevis pin23176-G15/16" x 1/2" LG 2
39Wire tie17618-G11
40Lock nut26830-G01M8 x 1.25 MM1
42Direction selector handle71205-G011
43Screw00740-G4#10 - 32 x 1/2" LG (Stainless steel)1
44Shifter control pivot72619-G011

Electrical System

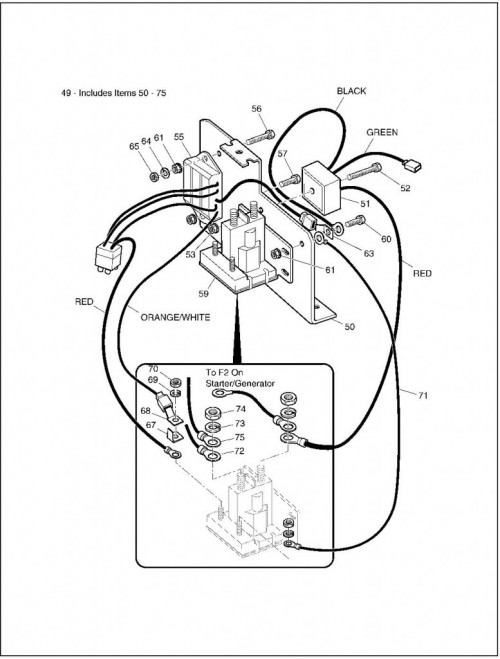

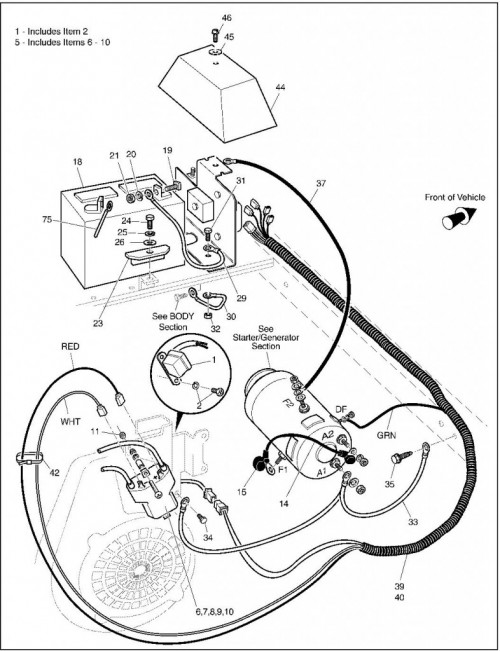

2001 Gas 12_Electrical System

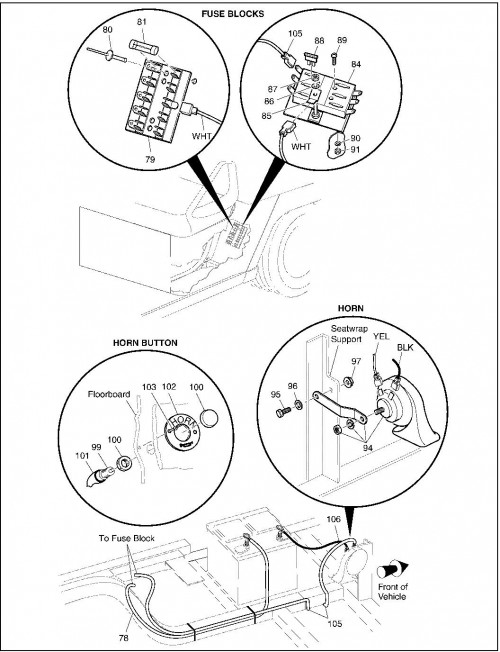

2001 Gas 12_Electrical System_2

2001 Gas 12_Electrical System_3

2001 Gas 12_Electrical System_4

2001 Gas 12_Electrical System_5

2001 Gas 12_Electrical System_6

2001 Gas 12_Electrical System_7

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Ignition pickup assembly26651-G02includes item 21
2Bolt and washer assembly26707-G01M5 x .8 x 10 MM LG1
5Ignition coil assembly26652-G01includes items 6 - 101
6Ignition coil*1
7Spacer*1
8Lock washer*1
9Nut*1
10Screw*1
11Nut13632-G1M6 x 12
146 GA wire25887-G01Black 6", F1 - A21
15Terminal cover25682-G13
18Battery24775-G*12 V1
19Bolt00962-G15/16 - 18 x 1 1/4" LG 2
20Lock washer00993-G015/16" (Silicon bronze)2
21Nut00994-G015/16 - 18 (silicon bronze)2
23Battery hold down72101-G011
24Bolt00438-G65/16 - 18 x 3/4" LG 1
25Lock washer00565-G85/16"1
26Washer00571-G25/16"1
29Battery ground cable28519-G011
3014 GA wire25976-G19Black 6"1
31Bolt00438-G65/16 - 18 x 3/4" LG 2
32Lock nut11027-G15/16 - 182
33Engine ground cable28520-G011
34Flanged bolt26676-G01M6 x 1 x 23 MM LG1
35Bolt00715-G25/16 - 18 x 13/16" LG 1
376 GA wire25972-G58Black 26", F2 - SOL1
39Wire harness74519-G01Control, single cable direction selector 1
40Wire harness70596-G01Control, dual cable direction selector 1
42Wire tie17618-G1AR
44Cover73049-G011
45Washer16469-G11/4"1
46Screw00114-G61/4 - 14 x 3/4" LG 1
49Electrical plate assembly73059-G01includes items 50 - 751
50Bracket73057-G011
51Voltage regulator27739-G011
52Bolt00415-G21/4 - 20 x 1 1/4" LG 1
53Lock nut11027-G21/4 - 201
55Ignitor27746-G011
56Bolt00414-G81/4 - 20 x 1" LG 1
57Bolt00414-G51/4 - 20 x 5/8" LG 1
59Solenoid27153-G011
60Bolt00414-G51/4 - 20 x 5/8" LG 1
61Lock nut11027-G21/4 - 203
63Faston tab12914-G21/4" x 1/4"1
64Lock washer00565-G71/4"1
65Nut00532-G11/4 - 201
67Faston tab73446-G01901
68Faston tab12914-G1 #10 x 1/4"1
69Lock washer00565-G5#102
70Nut00526-G4#10 - 322
7118 GA wire25978-G56Black 5 3/4"1
72In-line fuse holder22585-G31
73Lock washer00565-G85/16"2
74Jam nut00544-G45/16 - 242
756 GA wire25972-G33Black 24", B+ -SOL1
7810 GA wire25974-G22White 34"1
79Fuse black22674-G11200 / 22001
80Rivet01041-G015/32" x 3/8" LG (1200 / 2200)2
8115 AMP fuse18392-G11200 / 22003
84Fuse block35211-G016 position, LX/SE1
85Faston tab12914-G11
86Lock washer00567-G5#101
87Nut00526-G4#10 - 321
88Fuse35212-G0115 AMP1
89Screw00379-G2#10 - 24 x 1 1/4" LG 2
90Washer00559-G5#102
91Lock nut14390-G10#10 - 242
94Horn32860-G11
95Bolt00414-G51/4 -20 x 5/8" LG 1
96Washer00559-G85/16"1
97Lock nut00891-G21/4 - 201
99Horn switch17318-G11
100Horn switch cap and nut17318-G21
101Horn switch boot27068-011
102Horn switch label19233-G11
103Rivet71055-G015/32" x 3/8" grip (stainless steel)2
105Wire harness73214-G01Horn1
10616 GA wire25977-G40Black 17"1
108Light bar bracket74236-G01Passenger side1
109Light bar bracket74236-G02Driver side1
110Screw01038-G11/4 - 14 x 3/4" LG 2
111Bolt00414-G61/4 - 20 x 3/4" LG 2
112Lock nut11027-G21/4 - 202

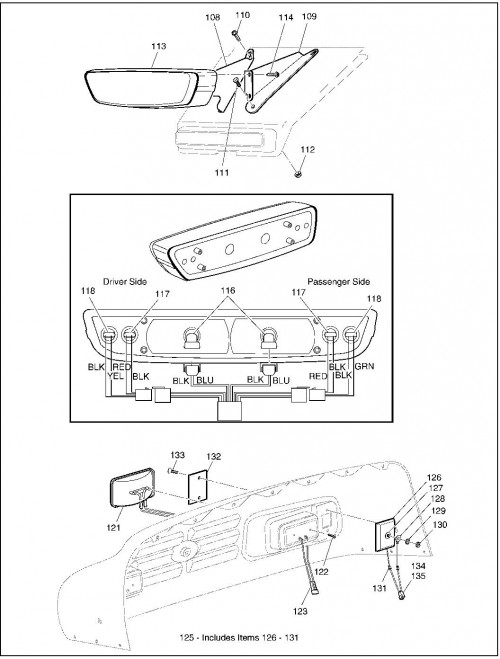

113Headlight and turn signal light bar74001-G011
114Screw00114-G61/4 - 14 x 3/4" LG 4
116Headlight bulb74004-G01AR
117Marker light bulb74005-G01AR
118Turn signal bulb74006-G01AR
121Headlight20209-G3includes item 122, LX/SE2
122Screw00906-G6#10 - 16 x 1" LG 2
123Jumper wire74337-G01headlight2
125Turn signal light20570-G3includes items 126 - 1312
126Turn signal light20574-G31
127Washer00660-G71/4"1
128Wire assembly20606-G11
129Lock washer00567-G71/4"1
130Nut00532-G11/4 - 201
131Push-on male terminal18995-G11
132Lens, amber20574-G51
133Screw00118-G5#6 - 18 x 5/8" LG 2
134Turn signal jumper74056-G01Red/black (Passenger side)1
135Turn signal jumper74056-G02Green/black (Driver side)1

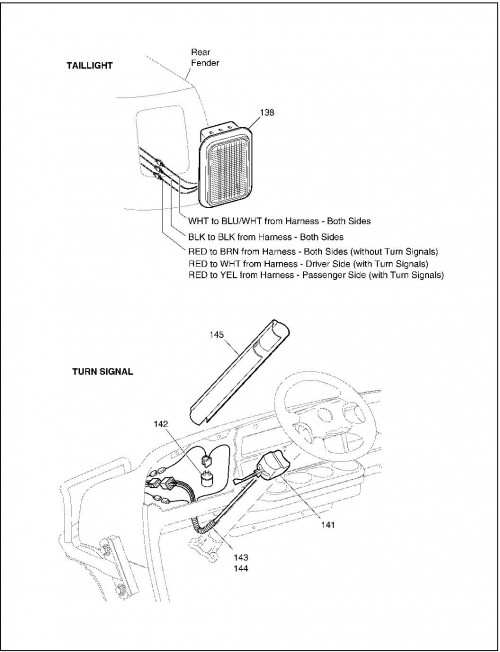

138Taillight assembly32739-G2complete2
141Turn signal17867-G1With mounting hardware, incl. item 1421
142Turn signal flasher21640-G11
143Flex loom32307-G33/8 x 8" LG 1
144Wire tie17618-G12
145Steering column cover20965-G31
148Ignition switch kit17421-G1w/o lights - standard - with hardware1
149Ignition switch17955-G1Without lights, non standard1
150Ignition switch18027-G1Without lights, individually keyed1
151Ignition switch33639-G**With lights1
152Lock washer00568-G63/4"1
153Face nut17137-G13/4 - 201
154Ignition key17063-G1Set1
155Wire harness73041-G01Key switch1
158Plate73030-G01Ignition switch only1
159Decal71181-G02Ignition switch only, without headlights1
160Decal71181-G01Ignition switch only, with headlights 1
163Plate73030-G04Fuel gauge and oil light1
164Decal71127-G01Oil light and fuel gauge w/o headlights1
165Decal71131-G01Oil light and fuel gauge with headlights1
166Fuel gauge21553-G11
167Indicator light23474-G11
168Harness74311-G01Oil light/fuel gauge1
16918 GA wire25978-G122Red 6"1
172Plate73030-G03Low fuel and oil light indicator1
173Decal71125-G01Low fuel and low oil w/o headlights1
174Decal71183-G01Oil and fuel lights with headlights1
175Indicator light23474-G12
176Harness74309-G01Oil light / fuel light1
17718 GA wire25978-G74Red 6"1
179Drive rivet33623-G023/16" x 3/8" LG 2
181Console insert assembly74444-G**with or w/o power outlet, includes items 182 - 1851
182Console insert plate71077-G**1
183Decal35966-G**Console insert plate1
184Power outlet71078-G0112 volt1
185Rivet14601-G105/32" x 7/16" LG 2
186Drive rivet33623-G015/32" x 5/16" LG 3
187Wire harness71081-G01Power outlet1

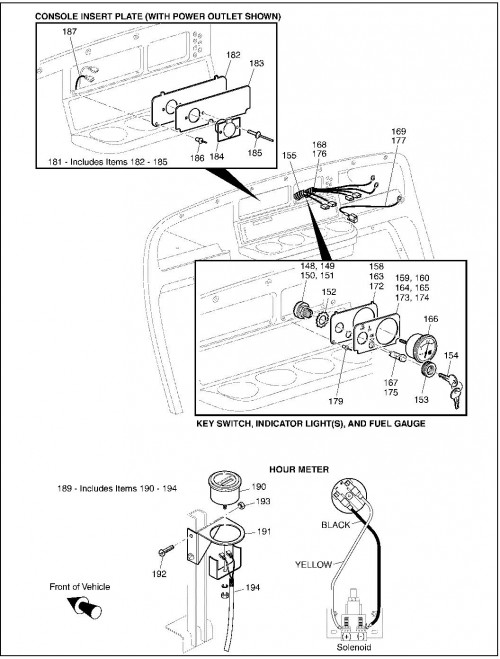

189Hour meter kit75114-G02includes items 190 - 1941
190Hour meter assembly21573-G11
191Hour meter bracket74019-G011
192Screw00150-G4#10 - 24 x 1/2" LG 2
193Lock nut11098-G7#10 - 242
194Wire harness75117-G01Hour meter1
197Light bar with lights and/or strobe75354-G**includes items 198 - 215, 217 and/or 2251
198Strut75352-G01Driver side1
199Strut75352-G02Passenger side1
200Wire harness75346-G01Work light1
201Work light brace75353-G011
202Cover plate75363-G011
203Switch harness75347-G011
204Light switch plate71077-G**1
205Strobe light mount33201-G02Used only with strobe light1
206Hardware kit75365-G01includes items 207 - 2151
207Bolt00685-G75/16 - 18 x 1 3/4" LG 6
208Washer00660-G85/16"12
209Washer15121-G13/8" x 1 1/4"2
210Lock nut11098-G65/16 - 184
211Acorn nut00918-G35/16 - 182
212Drive rivet33623-G015/32" x 5/16" LG 3
213Grommet20367-G12
214Screw16705-G31/4 - 20 x 3/4" LG2
215Lock nut14390-G41/4 - 202
217Work light kit20383-G2includes items 218 - 2231
218Light20209-G2Rectangular2
219Lock washer00566-G31/2"2
220Nut00533-G11/2 - 132
221Light switch17317-G11
222Tab adapter17902-G11
22316 GA wire20053-G1Red 5 3/8"1
225Strobe light kit20385-G2includes items 226 - 2311
226Strobe light20394-G11
227Screw00379-G4#10 - 24 x 1/2" LG 3
228Lock nut11098-G7# 10 - 243
229Light switch17317-G11
230Tab adapter17902-G11
23116 GA wire20053-G1Red 5 3/8"1

Engine and Muffler

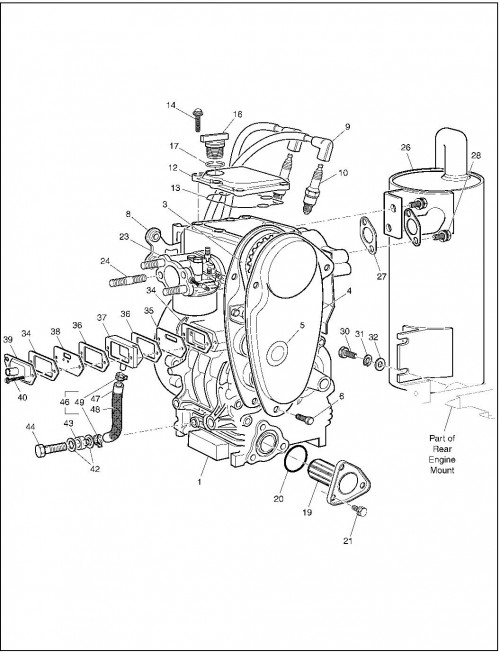

2001 Gas 13_Engine and Muffler

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Engine72650-G02350 cc1
3Timing belt26626-G011
4Timing belt cover26630-G011
5Timing belt cover grommet26631-G011
6Bolt26678-G01M6 x 1 x 12 MM LG3
8Ignition coil bracket26657-G011
9Spark plug wire set26733-G012 with boots1
10Spark plug25523-G4NKG BPR5ES2
12Valve cover26600-G011
13Valve cover gasket26719-G011
14Flanged bolt26676-G01M6 x 1 x 23 MM LG6
16Oil filler cap26601-G011
17Oil filler 'O' ring26720-G011
19Oil filter26591-G011
20Oil filter 'O' ring26710-G011
21Bolt and washer26680-G01M6 X 1 X 12 MM LG3
23CarburetorXXXXX-XXSee carburetor section
24Stud26667-G012
26Muffler72019-G011
27Exhaust gasket25531-G11
28Bolt and washer25532-G1M8 X 1.25 X 18 MM LG4
30Bolt00438-G85/16 - 18 x 1" LG 1
31Lock washer00565-G85/16"1
32Washer00642-G85/16"1
34Breather cover gasket72555-G01Thick2
35Inner breather plate72657-G01Long slot1
36Breather cover gasket72554-G01Thin2
37Breather box72658-G011
38Outer breather plate72676-G01Short slot1
39Breather cover72659-G011
40Flanged bolt72680-G01M6 X 1 X 70 MM LG2
42Aluminum gasket72656-G012
43Banjo union72655-G011
44Banjo bolt72654-G011
46Rubber return hose72653-G01includes items 47 - 491
47Rubber hose72677-G016 MM ID X 12 MM OD X 145 MM LG1
48Mesh protective cover72678-G011
49Hose clamp72679-G012

Engine Mounting

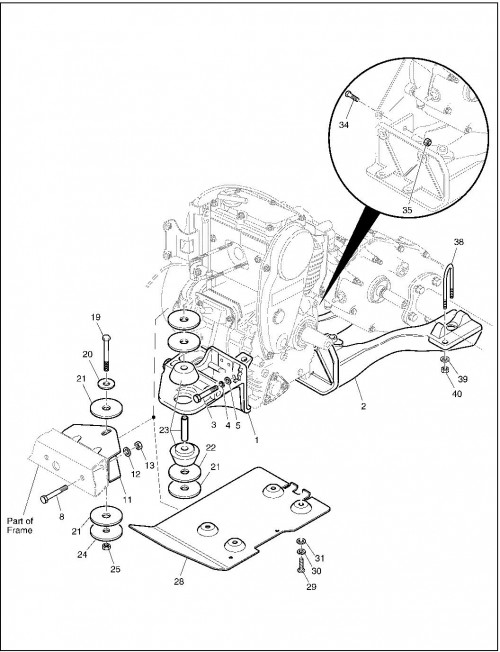

2001 Gas 14_Engine Mounting

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Front engine mount72010-G011
2Rear engine mount72011-G011
3Bolt00463-G47/16 - 14 x 1 1/2" LG 4
4Lock washer00566-G27/16"4
5Washer00922-G37/16"4
8Bolt00428-G63/8 - 16 x 2 3/4" LG 2
11Mount bracket72044-G011
12Washer00643-G13/8"2
13Lock nut11098-G53/8 - 162
19Bolt00430-G43/8 - 16 x 4 1/2" LG 1
20Washer15212-G11 1/4" x 3/8"1
21Plastic washer72050-G012 1/2" x 5/8"4
22Washer72051-G012 1/2" x 5/8"2
23Isolation mount72015-G011
24Washer72051-G022 1/2" x 11/32"1
25Lock nut11098-G53/8 - 161
28Engine guard72719-G011
29Bolt00463-G47/16 - 14 x 1 1/2" LG 4
30Lock washer00566-G27/16"4
31Washer00922-G37/16"4
34Bolt00439-G15/16 - 18 x 1 1/8" LG 1
35Lock nut11098-G65/16 - 181
38U' bolt72035-G017/16 - 142
39Washer00922-G37/16"4
40Lock nut00734-G17/16 - 144

Front Suspension (Early Production for Jan.2001 and later See Front Suspension Steering)

2001 Gas 15_Front Suspension (Early Production)

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Front axle70536-G011
3Spindle assembly70220-G01Driver side, includes items 4 - 121
4Spindle*Driver side1
5Bearing16623-G12
6Grease fitting, straight 10389-G31
7Grease seal25146-G11
8Wheel hub assembly19932-G1includes items 9, 101
9Lug bolt19862-G11/2 - 20 x 1 7/32" LG 4
10Bearing and race assembly50892-G1complete2
11Slotted nut12093-G11 - 141
12Cotter pin00798-G85/32" x 1 3/4" LG 1
14Spindle assembly70221-G01Passenger side, includes items 5-12, 151
15Spindle*Passenger side1
17Spindle cap12091-G22
19Bolt01040-G011/2 - 13 x 5" LG 2
20Washer00571-G51/2"4
21King pin tube70328-G012
22Thrust washer16982-G17/8"2
23Lock nut14390-G61/2 - 132
26Shock absorber70324-G012
27Shock absorber washer10435-G18
28Rubber bushing10194-G18
29Nut00532-G63/8 - 244
31Leaf spring70049-G012
32Spring plate70540-G022
33Bolt00463-G47/16 - 14 x 1 1/2" LG 6
34Lock nut00734-G17/16 - 1412
35Bolt00463-G67/16 - 14 x 1 3/4" LG 6
36Spring plate70163-G022
38Lug nut14723-G11/2 - 208

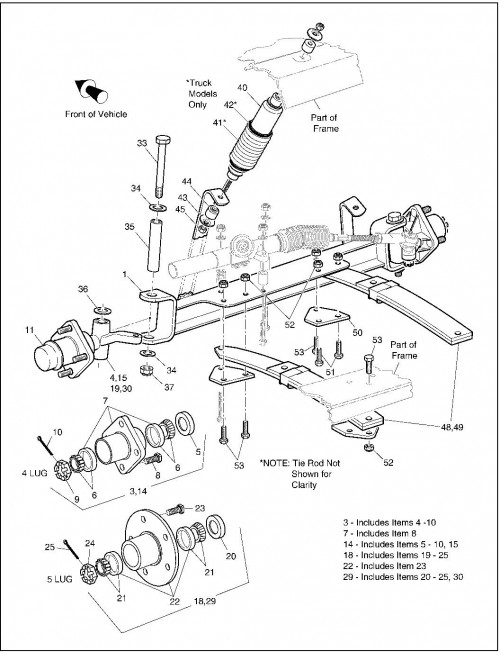

Front Suspension Steering (Jan.2001 and Later)

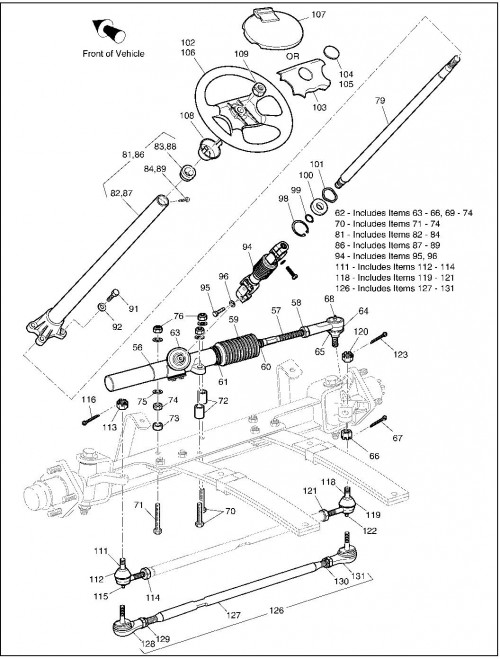

2001 Gas 16_Front Suspension Steering (Later Production)

2001 Gas 16_Front Suspension Steering (Later Production)_2

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Front axle70963-G011
3Spindle and hub assembly70942-G014 lug, Passenger side, includes items 4 - 101
4Spindle assembly70942-G02Passenger side1
5Grease seal25146-G11
6Roller beraing and race assembly50892-G12
7Wheel hub assembly with races70895-G014 lug, includes item 81
8Lug bolt19862-G11/2 - 20 x 1 7/32" LG 4
9Slotted nut12093-G11-141
10Cotter pin00798-G85/32" x 1 3/4" LG 1
11Spindle cap12091-G22
14Spindle and hub assembly70673-G014 lug, Driver side, includes items 5-10, 151
15Spindle assembly70673-G02Driver side1
18Spindle and hub assembly70943-G015 lug, Passenger side, includes items 19 - 251
19Spindle assembly70942-G02Passenger side1
20Gresae seal12092-G11
21Bearing and race assembly50892-G12
22Wheel hub assembly with races70772-G015 lug, Includes item 231
23Lug bolt30143-G11/2 - 20 x 1 7/32" LG5
24Slotted nut12093-G11- 141
25Cotter pin00798-G85/32" x 1 3/4" LG1
29Spindle and hub assembly70797-G015 lug, Driver side, includes items 20-25, 301
30Spindle assembly70673-G02Driver side1
33Bolt00407-G61/2 - 13 x 6" LG 2
34Washer00560-G31/2"4
35King pin tube70745-G012
36Thrust washer70754-G01Stainless steel2
37Lock nut14390-G61/2 - 132
40Shock absorber70928-G012
41Shock absorber boot70509-G012
42Wire tie31539-G14
43Shock absorber washer10435-G18
44Rubber bushing10194-G18
45Nut00532-G63/8 - 244
48Leaf spring70597-G02See part number on spring2
49Leaf spring70664-G02Heavy duty, see part number on spring 2
50Spring plate70163-G024
51Bolt00463-G47/16 - 14 x 1 1/2" LG 2
52Lock nut00734-G17/16 - 149
53Bolt00463-G67/16 - 14 x 1 3/4" LG 9
56Rack and pinion unit70602-G01complete, includes items 57-60, 63-681
57Rack extension70694-G011
58Jam nut*1/2 - 201
59Rack boot70675-G011
60Wire tie17618-G11
61Wire tie12416-G21
63Pinion seal70638-G011
64Rack ball joint70695-G01includes items 65-681
65Rubber boot50641-G11
66Slotted nut50209-G27/16 - 201
67Cotter pin10387-G23/32" x 1" LG 1
68Gresae fitting, straight 10389-G31
70Bolt00464-G67/16 - 14 x 2 3/4" LG 2
71Bolt01068-G017/16 - 14 x 3 1/2" LG 1
72Spacer70667-G022
73Spacer70667-G03Short1
74Nut00532-G77/16 - 141
75Washer00560-G27/16"4
76Lock nut00734-G17/16 - 143
79Steering shaft70607-G011
81Steering column kit70758-G03includes items 82 - 841
82Steering column70610-G011
83Steering column bushing28569-G011
84Screw01022-G01#6 -20 x 5/16" LG 1
86Steering column kit70759-G04Horn, includes items 87 - 891
87Steering column70610-G021
88Steering column bushing28569-G011
89Screw01022-G01#6 - 20 x 5/16" LG 1
91Bolt01006-G013/8 - 16 x 1 1/4" LG with patchlock 4
92Lock washer00879-G13/8"4
94Intermediate shaft70580-G01Includes items 95, 961
95Bolt01055-G01M8 x 1 1/4" LG2
96Lock washer00565-G85/16"2
98Retaining ring70751-G01Internal1
99Retaining ring70888-G01External1
100Ball bearing15112-G11
101Wave washer70887-G011
102Steering wheel71146-G011
103Steering wheel cover71147-G011
104Decal71047-G01E-Z-GO1
105Decal74405-G01Cushman1
106Steering wheel71948-G011
107Clipboard71950-G011
108Hub cover71949-G011
109Lock nut14390-G25/8 - 181
111Tie rod end27205-G01Left hand thread, includes items 112- 1141
112Rubber boot50641-G11
113Slotted nut50209-G27/16 - 201
114Jam nut18434-G39/16 - 18 (Left hand thread)1
115Grease fitting, straight 10389-G31
116Cotter pin10387-G23/32" x 1" LG 1
118Tie rod end27205-G02Right hand thread, includes items 119 - 1211
119Rubber boot50641-G11
120Slotted nut50209-G27/16 - 201
121Jam nut18434-G49/16 - 18 (Right hand thread)1
122Grease fitting, straight 10389-G31
123Cotter pin10387-G23/32" x 1" LG 1
126Tie rod assembly70876-G02includes items 127 - 1311
127Threaded rod70897-G0224" LG1
128Tie rod end70902-G01Left hand threads1
129Jam nut01069-G01M12 X 1.25-05 (Left hand threads)1
130Tie rod end70902-G02Right hand threads1
131Jam nut01069-G02M12 x 1.25-05 (Right hand threads)1
133Lock nut00734-G17/16 - 142

Fuel System

2001 Gas 17_Fuel System

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Fuel tank72092-G01For vehicles without gauge1
2Fuel tank cap72282-G011
3Fuel level sender adapter72229-G011
4Screw72230-G01#6 - 32 x 1/2" LG 2
5Fuel level sender20048-G2Elec. Fuel gauge, includes items 6,71
6Gasket*1
7Screw72232-G01#10 - 32 x 3/4" LG 5
9Fuel tank72092-G02For electric fuel gauge1
10Bolt00438-G15/16 - 18 x 1 1/8" LG 2
11Washer00559-G85/16"4
13Lock nut11098-G65/16 - 183
15Fuel tank cap with gauge14099-G2
17Fuel pick up tube18287-G21
18Fuel filter72084-G011
19Tubing25346-G114" LG (Bulk)2
20Clamp18292-G15
21Fuel pump72021-G011
22Screw00114-G61/4 - 14 x 3/4" LG 2
24Tubing25346-G626" LG (Bulk)AR
25Hose clamp11391-G43
26Pulse tubing27184-G0126" LG (Bulk)AR
28Wire tie17618-G13
29Vinyl trim32617-G214" LG (Bulk)AR
30Label26459-G01Unleaded gasoline only1

Rear Axle – Single Cable Shifter

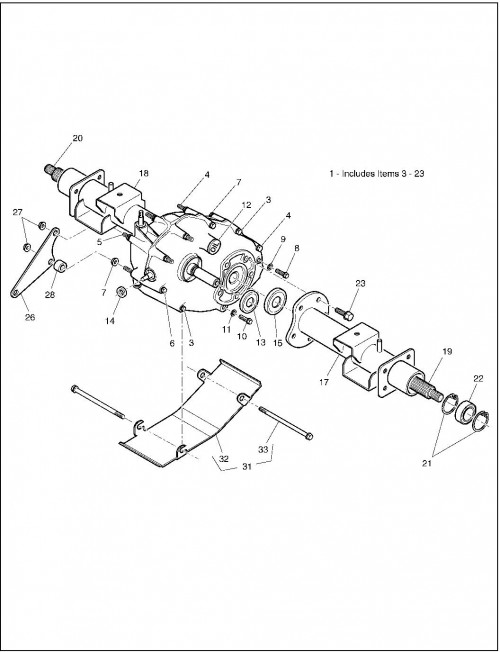

2001 Gas 18_Rear Axle - Single Cable Shifter

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Rear axle74520-G0113.32:1, includes items 3 - 231
3Flanged bolt26823-G01M8 x 1.25 x 100 MM LG5
4Flanged bolt26824-G01M8 x 1.25 x 110 MM LG2
5Bolt*M8 x 1.25 x 146 MM LG2
6Flanged bolt72052-G01M8 X 1.25 X 130 MM LG1
7Flange nut72269-G01M8 X 1.25 MM12
8Oil check plug26768-G011
9Gasket26769-G018 MM1
10Oil drain plug26770-G011
11Gasket26771-G0114 MM1
12Oil filler plug26772-G011
13Input shaft seal26761-G011
14Shifter shaft seal26762-G011
15Axle shaft seal72259-G012
17Axle tube72249-G01Driver side1
18Axle tube72248-G01Passenger side1
19Axle shaft72056-G01Driver side1
20Axle shaft72057-G01Passenger side1
21Retaining ring26814-G014
22Ball bearing26811-G012
23Flanged bolt72260-G01M10 x 1.5 x 23 MM LG10
26Axle bracket72017-G011
27Lock nut26830-G01M8 x 1.25 MM2
28Spacer75048-G011/2"1
31Differential scuff guard kit72347-G01includes items 32 - 331
32Differential skid plate72349-G011
33Flanged bot26824-G01M8 X 1.25 X 110 MM LG2

Rear Axle – Dual Cable Shifter

2001 Gas 19_Rear Axle - Dual Cable Shifter

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Rear axle72246-G0113.32:1, includes items 3-271
3Flanged bolt26823-G01M8 x 1.25 x 100 MM LG7
4Flanged bolt26824-G01M8 X 1.25 X 110 MM LG1
5Flanged bolt72053-G01M8 X 1.25 X 120 MM LG1
6Flanged bolt72052-G01M8 X 1.25 X 130 MM LG1
7Lock washer26826-G018 MM14
8Nut26827-G01M8 X 1.25 MM14
9Oil check plug26768-G011
10Gasket26769-G018 MM1
11Oil drain plug26770-G011
12Gasket26771-G0114 MM1
13Oil filler plug26772-G011
14Input shaft seal26761-G011
15Shifter shaft seal26762-G011
16Axle shaft seal26766-G012
18Axle tube72249-G01Driver side1
19Axle tube72248-G01Passenger side1
20Axle shaft72056-G01Driver side1
21Axle shaft72057-G01Passenger side1
22Retaining ring26814-G014
23Ball bearing26811-G012
25Flanged bolt72260-G01M10 X 1.5 X 23 MM LG10
27Shifter cable bracket26815-G011
29Axle bracket72017-G011
30Spacer75048-G011/2"1
32Differential scuff guard kit72347-G01includes items 33 - 341
33Differential skid plate72349-G011
34Flanged bolt26824-G01M8 x 1.25 x 110 MM LG2

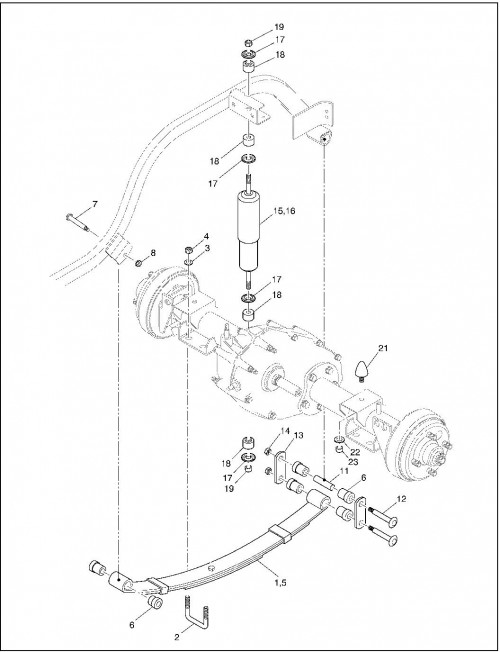

Rear Suspension

2001 Gas 20_Rear Suspension

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Leaf spring set70506-G011
2U' bolt72618-G023/8 - 164
3Washer00560-G13/8"8
4Lock nut11098-G53/8 - 168
5Leaf spring set74345-G01Refresher2
6Flanged bushing70291-G0112
7Shoulder bolt14158-G13/8 - 16 x 3 1/4" LG 2
8Lock nut12262-G13/8 - 162
11Spacer70289-G024
12Bolt00429-G43/8 - 16x 3 1/2" LG 4
13Shackle plate70290-G014
14Lock nut11098-G53/8 - 161
15Shock absorber70790-G01Refresher2
16Shock absorber70324-G012
17Washer10435-G1Shock absorber8
18Rubber bushing10194-G18
19Nut00532-G63/8 - 244
21Rubber bumper70492-G012
22Lock washer00968-G0110 MM2
23Nut00974-G01M10 x 1.52

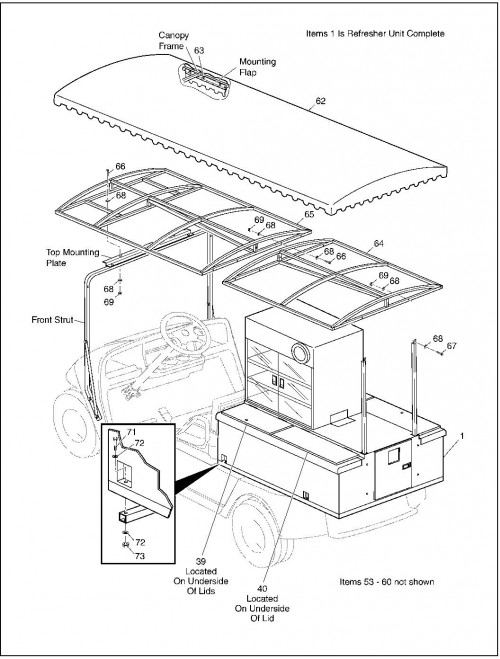

Refresher Unit

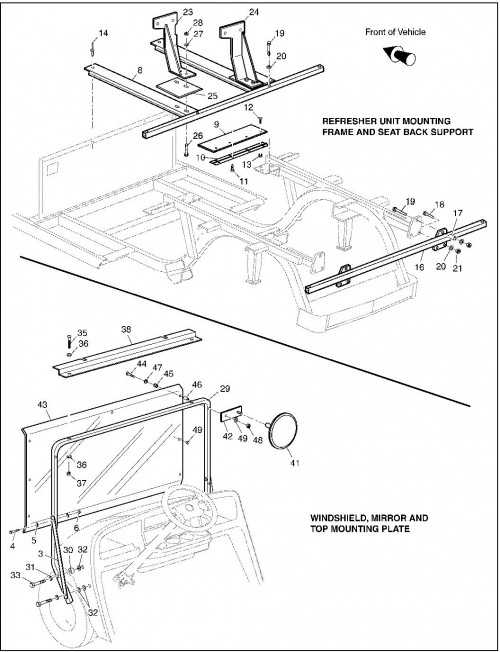

2001 Gas 21_Refresher Unit

2001 Gas 21_Refresher Unit_2

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Refresher unit74434-G01Complete, includes items 3-491
3Brace35790-G012
4Bolt00440-G25/16 - 18 x 2 1/4" LG 4
5Lock washer00905-G85/16" (Black)4
6Lock nut11098-G65/16 - 182
8Refresher unit mounting frame74421-G01Front1
9Engine access door74392-G011
10Access door hinge33121-G011
11Screw00106-G61/2 - 24 x 3/4" LG 4
12Bolt00414-G51/4 - 20 x 1/2" LG 4
13Lock nut00891-G21/4 - 204
14Rivet10570-G105/32" (Stainless steel)2
16Refresher unit mounting frame74394-G01Rear1
17Spacer74389-G012
18Bolt00438-G85/16 - 18 x 1" LG 4
19Bolt00439-G85/16 - 18 x 2" LG 4
20Washer00559-G85/16"8
21Lock nut11098-G65/16 - 186
23Seat back support74387-G01Driver side1
24Seat back support74387-G02Passenger side1
25Side cover74433-G012
26Bolt00438-G85/16 - 18 x 1" LG 4
27Washer00559-G85/16"4
28Lock nut11098-G65/16 - 184
29Front strut75045-G041
30Spacer75048-G012
31Lock washer00905-G85/16" (Black)4
32Washer00879-G13/8" x 1"6
33Bolt01035-G025/16 - 18 x 2 1/2" LG 4
35Bolt16705-G51/4 - 20 x 1 1/2" LG 2
36Washer00559-G71/4"4
37Lock nut00891-G21/4 - 202
38Top mounting plate74191-G011
39Decal36002-G01Warning3
40Decal35991-G01Warning1
41Mirror74202-G016"2
42Mirror mounting bracket74203-G012
43Windshield75021-G031
44Bolt16705-G61/4 - 20 x 1 3/4" LG 4
45Rubber grommet72147-G014
46Spacer23726-G74
47Washer00660-G71/4"8
48Lock nut00891-G21/4 - 204
49Bumper75124-G012
53Sign board74346-G012
54Condiment tray75793-G011
55Bottle caddy75794-G011
56Cash drawer75795-G011
57Mini bottle carrier75796-G011
58Humidor75797-G011
59Credit card machine mount75798-G011
60Food washer75891-G011
62CanopyEZRAM100641
63Self tapping screwH109210MM X 1/2" LG 40
64Canopy frameEZRAM10060Rear1
65Canopy frameEZRAM10061Front1
66BoltH10751/4 - 20 x 2"7
67BoltH10771/4 - 20 x 1 1/4" LG 2
68WasherH10791/4"18
69Lock nutH10781/4 - 209
71BoltH10835/16 - 18 x 1 1/4" LG 4
72WasherH10195/16"8
73Lock nutH10175/16 -184
75Cold storage doorEZRAM10033front1
76Cold storage doorEZRAM10037Rear1
77Consumable ice doorEZRAM100411
78Canopy uprightEZRAM100221
79Hose mounting bracketEZRAM100691
80Compression hingeH40071
81Trash door hingeEZRAM100751
82Trash binB60011
83Trash door latchH40081
84Trash door compartmentEZRAM100451
85Door seal gasketM60031
86LockH2006Cold storage door1
88Hose mounting bracketEZRAM100692
89Spigot valveH50122
90Drain hoseH500036" LG 1
91Hose adapterH50073/4" x 1/2"2
92Combination elbowH50063
93Combination teeH50051
94Hose clampH10701
96Touch up paint repair kitB100001
97Door accessory moduleEZRAM100010Left1
98Door accessory moduleEZRAM100012Right1
99Locking latchH40091
100Cup dispenserB90011
101Cup dispensor cover ringB90021
102Cup dispensor cover springB90031
103AirpotB60113.75 liter (Stainless steel)1
104Airpot rack assemblyEZRAM1000201
105Door hingeH600Stainless steel1
106Cushioning adhesive tapeM10021

Seating

2001 Gas 22_Seating

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Seat bottom assembly71644-G**includes items 2, 31
2Vinyl seat bottom cover71602-G**1
3Vinyl trim71012-G01Seat bottom1
5Seat hinge71610-G012
6Screw00720-G08#12 - 14 x 1" LG 6
8Hip restraint71701-G01Passenger side1
9Hip restraint71702-G01Driver side1
10Bolt71204-G011/4 - 20 x 7/8" LG 8
12Seat back assembly27546-G**includes items 13, 141
13Vinyl seat back cover18144-G**1
14Plastic seat back cover18868-G3Black1
16Seat back support bracket71662-G012
17Bolt71204-G011/4 - 20 x 7/8" LG 8
19Washer00559-G71/4"4
20Lock washer00565-G71/4"4
21Screw16705-G11/4 - 20 x 1" LG 4
22Seal71762-G06Refresher1
23Seal71762-G021
24Screw00114-G61/4 - 14 x 3/4" LG 2
26Bumper17074-G12
28Seat shield71783-G011
29Screw16705-G31/4 - 20 x 3/4" LG 2
30Washer00559-G71/4"2
31Lock washer00565-G71/4"2
32Acorn nut15158-G11/4 - 202
33Label74093-G01Warning1
34Rubber bumper13728-G12
35Washer00559-G5#102
36Self threading screw00106-G6#12 - 24 x 3/4" LG 2
38Plate / label71211-G01800 LB, includes item 391
39Label71517-G03800 LB1
40Rivet14601-G13/16" x 13/16" LG (Aluminum)2
42Screw16705-G11/4 - 20 x 1" LG (Refresher )4

Starter / Generator

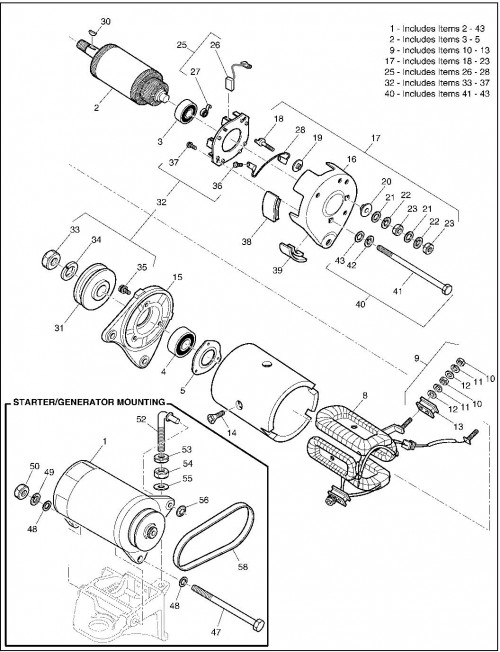

2001 Gas 23_Starter Generator

Sl. No.Part descriptionPart numberNotesQuantityPurchase
1Starter / generator27065-G01includes items 2 - 431
2Armature26870-G01includes items 3-51
3Rear ball bearing26871-G011
4Front ball bearing26872-G011
5Bearing holder26873-G011
8Field coil26875-G011
9Insulating brush assembly ('F')26876-G01includes items 10 - 132
10Nut*2
11Lock washer*2
12Washer*2
13Insulator*1
14Pole core setscrew26877-G014
15Front cover26878-G011
16Rear cover27879-G011
17Terminal assembly26880-G01A', includes items 18 - 232
18Terminal*2
19Insulator*2
20Insulator*2
21Washer*4
22Lock washer*4
23Nut*4
25Brush holder assembly26881-G01includes items 26 - 281
26Brush26658-G014
27Brush spring26882-G014
28Brush connector26883-G012
30Key26884-G011
31Pulley26885-G011
32Brush and pulley hardware kit26886-G01includes items 33 - 371
33Nut*1
34Lock washer*1
35Screw*3
36Screw*4
37Screw*2
38Brush 1 cover26887-G013
39Brush 2 cover26888-G012
40Housing hardware kit26889-G01includes items 41 - 432
41Bolt*2
42Lock washer*2
43Washer*2
47Bolt00938-G41/2 - 13 x 8" LG 1
48Washer00560-G31/2"2
49Lock washer00566-G31/2"1
50Nut00533-G11/2 - 131
52Starter / generator adjuster28617-G011
53Jam nut00544-G53/8 - 161
54Nut00532-G53/8 - 161
55Washer00560-G13/8"1
56Push nut12064-G45/16"1
58Starter / generator belt26414-G011

Steering (Early Production for Jan.2001 and later See Front Suspension Steering)

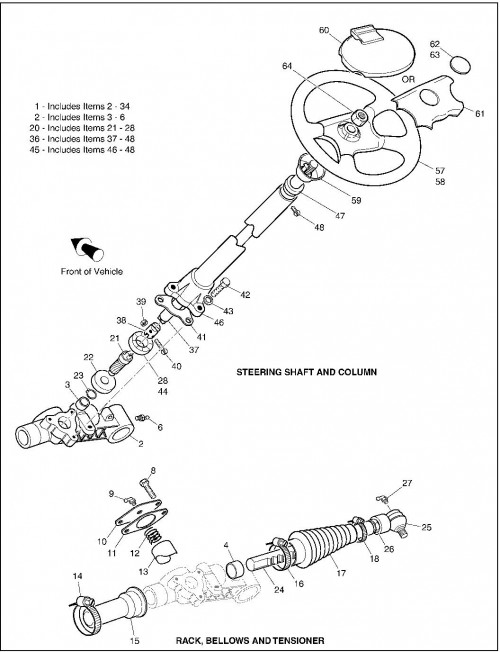

2001 Gas 24_Steering ( Early Production)

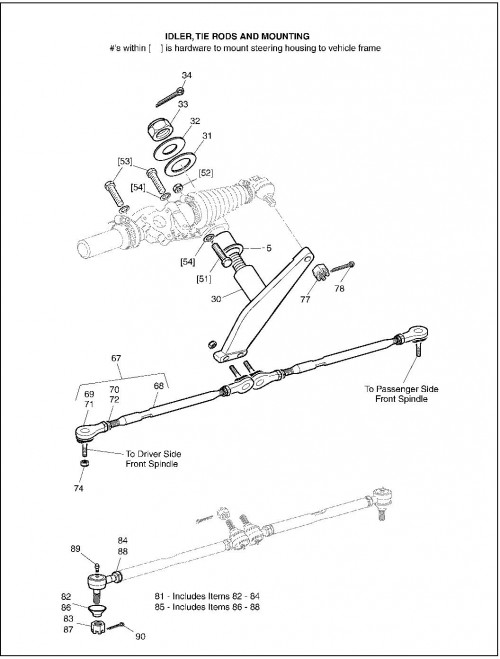

2001 Gas 24_Steering ( Early Production)_2

Sl NoPart descriptionPart numberNotesQuantityPurchase
1Steering box assembly70723-G02complete, includes items 2 - 341
2Steering housing75364-G01includes items 3 - 61
3Sleeve bearing*1
4Sleeve bearing*1
5Flanged bearing*1
6Grease fitting, straight10389-G31
8Bolt00426-G63/8 - 16 X 3/4" LG2
9Grease fitting18456-G190°1
10Rack guide cover70177-G011
11Gasket70225-G011
12Compression spring70178-G011
13Rack guide70179-G011
14Hose clamp11391-G11 1/4"1
15Rack cover70041-G011
16Hose clamp11391-G11 1/4"1
17Bellows70183-G011
18Hose clamp11391-G53/4"1
20Steering gear kit70724-G01includes items 21 - 281
21Gear pinion70717-G011
22Ball bearing15112-G11
23External retaining ring70190-G011
24Steering rack70718-G011
25Rack ball end70192-G011
26Nut00532-G87/16 - 201
27Grease fitting18456-G190°1
28Retainer70466-G011
30Idler70184-G011
31Thrust washer70216-G011 1/2"1
32Thrust washer70195-G017/8"1
33Lock nut00734-G67/8 - 91
34Cotter pin00798-G85/32" X 1 3/4" LG1
36Steering shaft/column kit70360-G01includes items 37 - 481
37Steering shaft14322-G61
38Coupling70558-G011
39Lock nut00550-G11/4 - 202
40Screw70227-G011/4 - 20 X 7/8" LG2
41Gasket70223-G011
42Bolt01034-G013/8-16 X 1 1/2" lg with patchlock3
43Lock washer00878-G13/8"3
44Retainer70466-G011
45Steering column kit28633-G01includes items 46 - 481
46Steering column*1
47Steering column bushing28569-G011
48Screw01022-G01#6 - 20 X 5/16" LG1
51Bolt00470-G47/16 - 20 X 2 1/2" LG1
52Lock nut00734-G37/16 - 201
53Bolt01033-G017/16-14x1 1/4" LG with patchlock2
54Lock washer00566-G27/16"3
57Steering wheel71948-G011
58Steering wheel71146-G01LX/SE1
59Hub cover71949-G011
60Clipboard71950-G011
61Steering wheel cover71147-G011
62Decal71047-G01E-Z-GO1
63Decal74405-G01Cushman1
64Lock nut14390-G25/8-181
67Tie rod assembly70904-G02includes items 68 - 722
68Threaded rod70855-G0224" LG1
69Tie rod end70902-G01Left hand threads1
70Jam nut01069-G01M12 X 1.25-05, Left hand threads1
71Tie rod end70902-G02Right hand threads1
72Jam nut01069-G02M12 X 125-05, Right hand threads1
74Lock nut00734-G17/16-144
77Slotted nut50209-G27/16 - 201
78Cotter pin10387-G23/32" X 1" LG1
81Tie rod end27205-G01left hand thread, includes items 82 - 841
82Rubber boot50641-G11
83Slotted nut50209-G27/16 - 201
84Jam nut18434-G39/16 -18, Left hand thread1
85Tie rod end27205-G02right hand thread, includes items 86 - 881
86Rubber boot50641-G11
87Slotted nut50209-G27/16 - 201
88Jam nut18434-G49/16 -18, right hand thread1
89Grease fitting10389-G3Straight2
90Cotter pin10387-G23/32" X 1" LG4

Truck Bed – Manual Lift

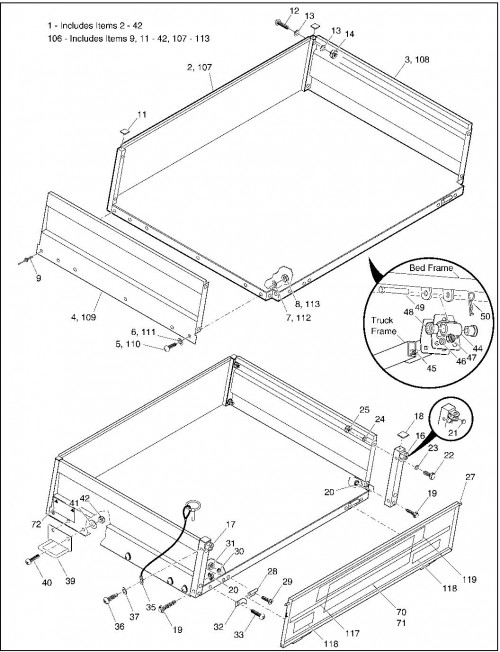

2001 Gas 25_Truck Bed - Manual Lift

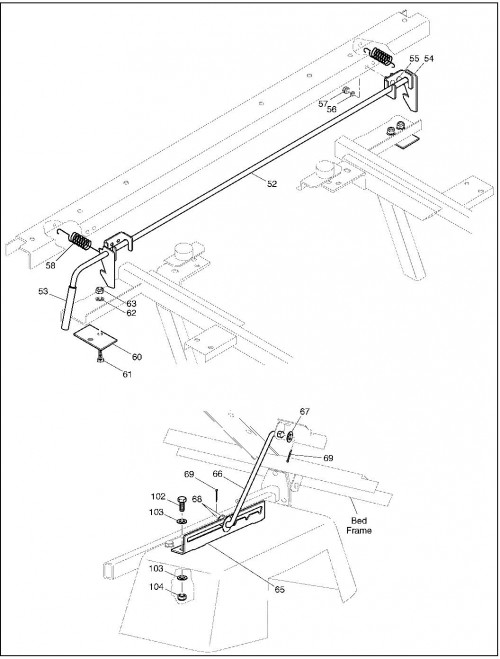

2001 Gas 25_Truck Bed - Manual Lift_2

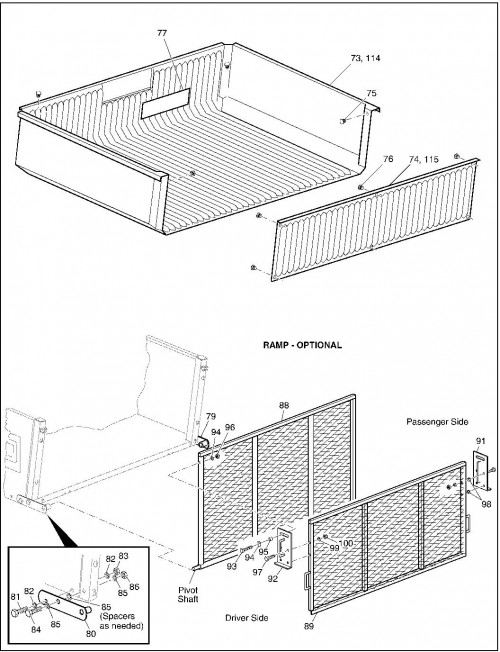

2001 Gas 25_Truck Bed - Manual Lift_3

Sl NoPart descriptionPart numberNotesQuantityPurchase
1Truck bed assembly71711-G0340", includes items 2 - 421
2Bed frame71719-G0140"1
3Side panel71714-G0140", passenger side1
4Side panel71714-G0240", driver side1
5Screw16705-G31/4 - 20 X 3/4" LG8
6Bonded washer00915-G11/4"8
7Washer00559-G71/4"8
8Lock nut14390-G41/4 - 208
9Rivet14601-G83/8" X 11/16" LG, Aluminum2
11End cap 1"71717-G012
12Screw16705-G61/4 - 20 X 1 3/4" LG4
13Bonded washer00915-G11/4"8
14Lock nut14390-G41/4 - 204
16Post71837-G01Passenger side1
17Post71837-G02Driver side1
18Tube cap71718-G011 1/2" square2
19Lock screw13437-G83/8 - 204
20Lock nut11027-G53/8 - 164
21Bumper71838-G012
22Bolt16705-G31/4 - 20 X 3/4" LG4
23Washer00915-G1 1/4"4
24Washer00559-G7 1/4"4
25Lock nut14390-G41/4 - 204
27Tailgate71732-G011
28Hinge27666-G012
29Bolt01002-G081/4 - 20 X 1" LG4
30Washer00559-G7 1/4"4
31Lock nut14390-G41/4 - 204
32Tailgate keeper71748-G011
33Screw16705-G31/4 - 20 X 3/4" LG1
35Tailgate cable71083-G012
36Self-tapping screw00106-G6#12 - 24 X 3/4" LG2
37Washer00915-G1 1/4"2
39Lift handle71794-G011
40Screw00976-G085/16-18x1" LG2
41Washer00559-G8 5/16"2
42Lock nut11098-G65/16 -182
44Bed pivot70396-G012
45Carriage bolt00764-G2 5/16 X 1" LG6
46Washer00559-G85/16"6
47Lock nut11098-G65/16 -186
48Rubber bushing70291-G014
49Clevis pin21682-G1 1/2" X 2 7/8" LG2
50Cotter pin21683-G1 15/32" X 2 11/16"2
52Bed latch71831-G011
53Handle grip71704-G011
54Latch bracket71827-G012
55Carriage bolt01014-G03 1/4 - 20 X 3/4" LG4
56Washer00559-G7 1/4"4
57Lock nut14390-G41/4-204
58Extension spring71707-G022
60Catch bracket71766-G012
61Bolt00414-G61/4 - 20 X 3/4" LG4
62Washer, 1/4"00559-G74
63Lock nut, 1/4-2014390-G44
65Prop bracket71673-G011
66Prop rod71657-G011
67Washer00560-G31/2"1
68Washer15121-G11 1/4" X 3/8"2
69Cotter pin10387-G33/32 X 3/4" LG2
70Decal71901-G01E-Z-GO1
71Decal74411-G01Cushman1
72Label71771-G01Tilt warning1
73Bed liner74234-G0140"1
74Tailgate liner74235-G011
75Rivet18436-G11/4" X 1/2" LG4
76Rivet14601-G103/16" X 3/8" LG6
77Safety decal71517-G031
79Ramp support28331-G01Passenger side1
80Ramp support28331-G02Driver side1
81Bolt00438-G85/16 - 18x1" LG2
82Washer00559-G85/16"4
83Lock nut11098-G65/16 -182
84Bolt00428-G63/8-16x2 3/4" LG2
85Washer00562-G13/8"6
86Lock nut11098-G53/8 - 162
88Upper ramp20264-G11
89Lower ramp20257-G21
91Pivot20252-G1Passenger side1
92Pivot20252-G2Driver side1
93Bolt00427-G83/8 -16 X 2" LG2
94Washer00562-G13/8"4
95Pivot spacer20275-G12
96Lock nut11098-G53/8 - 162
97Bolt00439-G65/16-18x1 3/4" LG4
98Washer00569-G25/16"4
99Washer00559-G85/16"4
100Lock nut11098-G65/16 -184
102BoltXXXXX-XX1/4 - 20 X 7/8" LG, see body section
103WasherXXXXX-XX1/4", see body section
104Lock nutXXXXX-XX1/4-20, see body section
106Truck bed assembly 48"71711-G04Manual dump, includes items 9, 11- 42, 107 - 1131
107Bed frame71719-G0248"1
108Side panel71742-G0148", Passenger side1
109Side panel71742-G0248", Driver side1
110Screw16705-G31/4 - 20 X 3/4" LG10
111Bonded washer00915-G11/4"10
112Washer00559-G71/4"10
113Lock nut14390-G41/4 - 2010
114Bed liner74033-G0248"1
115Tailgate liner74036-G0148"1
117Decal, stripe71789-G011
118Decal71790-G014 cycle 11 H.P OHC /1110 Hauler1
119Decal71791-G01Jacobsen1

Truck Bed – Electric Lift

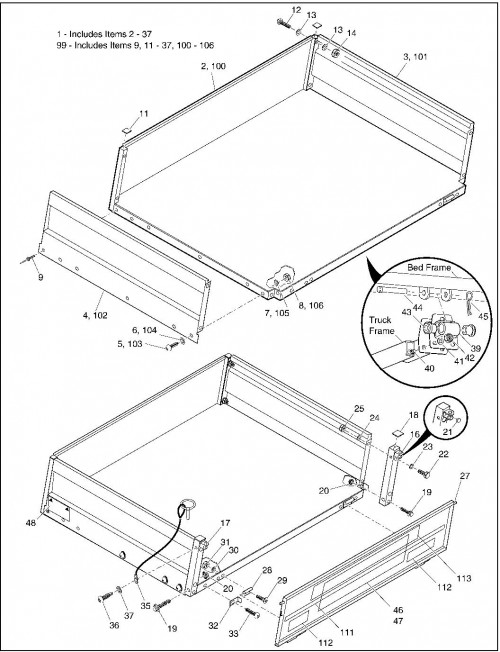

2001 Gas 26_Truck Bed - Electric Lift_2

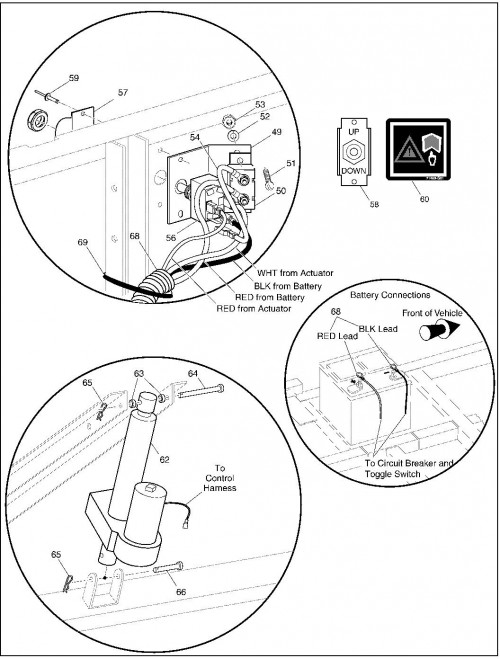

2001 Gas 26_Truck Bed - Electric Lift_2_2

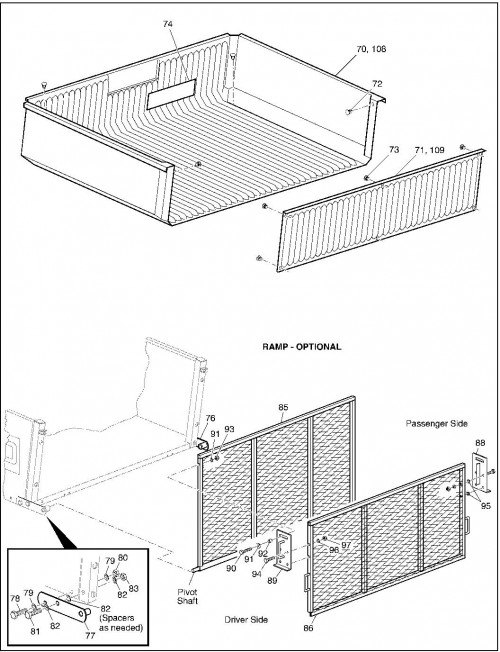

2001 Gas 26_Truck Bed - Electric Lift_2_3

Sl NoPart descriptionPart numberNotesQuantityPurchase
1Truck bed assembly 40"71711-G01includes items 2-371
2Bed frame71719-G0140"1
3Side panel71714-G0140" passenger side1
4Side panel71714-G0240" driver side1
5Screw16705-G31/4 - 20 X 3/4" LG10
6Bonded washer00915-G11/4"10
7Washer00559-G71/4"10
8Lock nut14390-G41/4 - 2010
9Rivet14601-G83/8" X 11/16" LG, Aluminum2
11End cap71717-G011"2
12Screw16705-G61/4 - 20 X 1 3/4" LG4
13Washer00915-G11/4"8
14Lock nut14390-G41/4 - 204
16Post71837-G01Passenger side1
17Post71837-G02Driver side1
18End cap71718-G01 1 1/2"2
19Lock screw13437-G83/8 - 16 X 2" LG4
20Lock nut11027-G53/8 - 164
21Bumper71838-G012
22Screw16705-G31/4 - 20 X 3/4" LG4
23Bonded washer00915-G11/4"4
24Washer00559-G71/4"4
25Lock nut14390-G41/4 - 204
27Tailgate71732-G011
28Hinge27666-G012
29Screw01002-G081/4 - 20 X 1" LG4
30Washer00559-G71/4"4
31Lock nut14390-G41/4 - 204
32Tailgate keeper71748-G011
33Screw16705-G31/4 - 20 X 3/4" LG1
35Tailgate cable71083-G012
36Self-threading screw00106-G6#12 - 24 X 3/4" LG2
37Washer00915-G11/4"2
39Bed pivot70396-G012
40Carriage bolt00764-G15/16-18x3/4" LG6
41Washer00559-G8 5/16"6
42Lock nut11098-G65/16 -186
43Flanged bushing70291-G014
44Clevis pin21682-G11/2" X 2 7/8" LG2
45Cotter pin21683-G115/32" X 2 11/16" LG2
46Decal71901-G01E-Z-GO1
47Decal74411-G01cushman1
48Label71771-G01tilt warning1
49Circuit breaker mounting bracket74165-G011
50Circuit breaker21320-G330 amp, 12v1
51Screw00150-G4#10 - 24 X 1/2" LG2
52Lock washer00565-G5#102
53Nut00526-G3#10-242
5414 GA wire25976-G14red 5"1
56Toggle switch27680-G011
57Toggle guard27447-G01includes item 581
58Label27446-G011
59Rivet10570-G91/8" X 11/32" LG2
60Safety decal71489-G011
62Electric actuator27612-G021
63Spacer27613-G012
64Clevis pin14443-G101/2" X 3" LG1
65Cotter pin21683-G12 11/16" LG2
66Clevis pin14443-G111/2" X 1 7/8" LG1
68Wire harness74163-G011
69Wire tie17618-G18
70Bed liner74234-G0140"1
71Tailgate liner74235-G011
72Rivet18436-G11/4" X 1/2" LG4
73Rivet14601-G103/16" X 3/8" LG6
74Safety decal71517-G031
76Ramp support28331-G01Passenger side1
77Ramp support28331-G02Driver side1
78Bolt00438-G85/16 - 18x1" LG2
79Washer00559-G8 5/16"4
80Lock nut11098-G65/16 -182
81Bolt00428-G6 3/8-16 X 2 3/4" LG2
82Washer00562-G1 3/8"6
83Lock nut11098-G53/8 - 162
85Upper ramp20264-G11
86Lower ramp20257-G21
88Pivot20252-G1Passenger side1
89Pivot20252-G2Driver side1
90Bolt00427-G83/8 -16 X 2" LG2
91Washer00562-G13/8"4
92Pivot spacer20275-G12
93Lock nut11098-G53/8 - 162
94Bolt00439-G65/16-18x1 3/4" LG4
95Washer00569-G2 5/16"4
96Washer00559-G8 5/16"4
97Lock nut11098-G65/16 -184
99Truck bed assembly71711-G0248", electric dump, includes items 9, 11- 37, 100 - 1061
100Bed frame71719-G0248"1
101Side panel71742-G0148", Passenger side1
102Side panel71742-G0248", Driver side1
103Screw16705-G31/4 - 20 X 3/4" LG12
104Bonded washer00915-G1 1/4"12
105Washer00559-G7 1/4"12
106Lock nut14390-G41/4 - 2012
108Bed liner74033-G0248"1
109Tailgate liner74036-G0148"1
111Decal, stripe71789-G011
112Decal71790-G014 Cycle 11 H.P. OHC /1110 Hauler1
113Decal71791-G01Jacobsen1

Truck Bed – Flat & Cargo

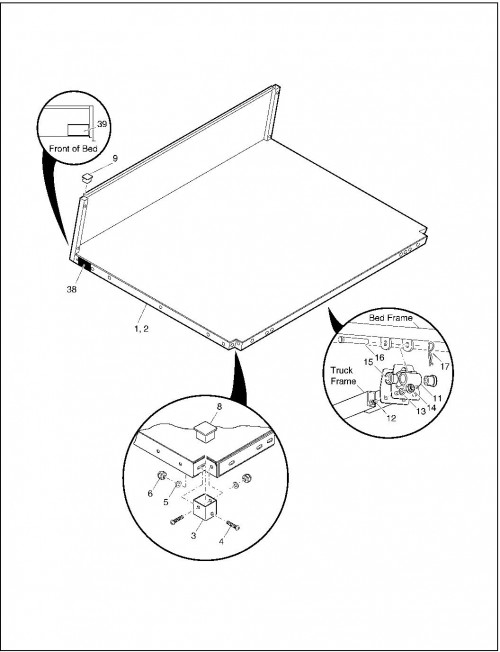

2001 Gas 27_Truck Bed - Flat & Cargo_3

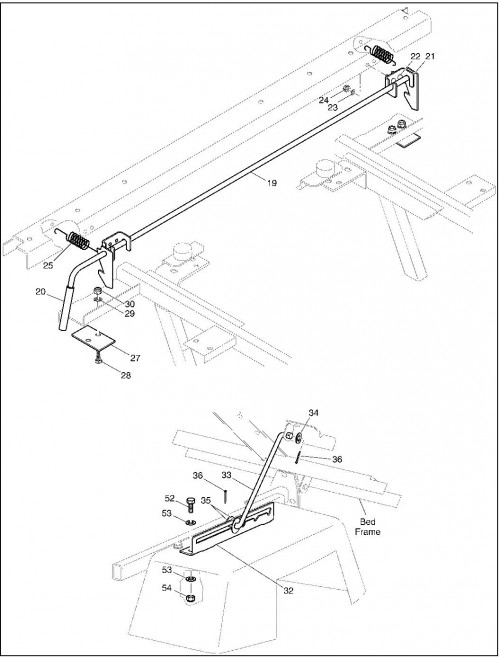

2001 Gas 27_Truck Bed - Flat & Cargo_3_2

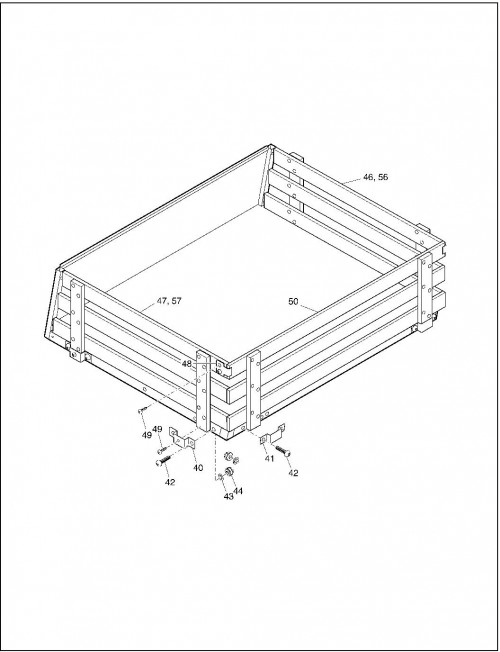

2001 Gas 27_Truck Bed - Flat & Cargo_3_3

Sl NoPart descriptionPart numberNotesQuantityPurchase
1Bed frame71719-G0140"1
2Bed frame71719-G0248"1
3Corner tube71772-G012
4Screw00762-G95/16-18 X 2 1/2" LG4
5Washer00559-G8 5/16"4
6Nut00550-G35/16-184
8End cap71718-G01 1 1/2"2
9End cap71717-G01 1"2
11Bed pivot70396-G012
12Carriage bolt00764-G2 5/16 - 18 X 1" LG6
13Washer00559-G8 5/16"6
14Lock nut11098-G65/16 -186
15Flanged bushing70291-G014
16Clevis pin21682-G1 1/2" X 3" LG2
17Cotter pin21683-G115/32" X 2 11/16" LG2
19Bed latch71831-G011
20Handle grip71704-G011
21Latch bracket71827-G012
22Carriage bolt01014-G03 1/4 - 20 X 3/4" LG4
23Washer00559-G7 1/4"4
24Lock nut14390-G41/4-204
25Extension spring71707-G022
27Catch bracket71766-G012
28Bolt00414-G6 1/4 - 20 X 3/4" LG4
29Washer00559-G7 1/4"4
30Lock nut14390-G41/4-204
32Prop bracket71673-G011
33Prop rod71657-G011
34Washer00560-G3 1/2"1
35Washer15121-G1 1 1/4" X 3/8"2
36Cotter pin10387-G33/32 X 3/4" LG2
38Label71777-G01Warning1
39Label71200-G01Load warning1
40Side rail support74157-G014
41Back rail support74161-G012
42Screw16705-G11/4 - 20 X 1" LG12
43Washer00559-G71/4"12
44Nut14390-G41/4-2012
46Side cargo rack74167-G0140", Passenger side1
47Side cargo rack74167-G0240", Driver side1
48Tailgate retainer bracket74079-G012
49Screw00666-G6#10-12x3/4" LG8
50Rear cargo rack74162-G031
52BoltXXXXX-XX1/4 - 20 X 7/8" LG, See body section
53WasherXXXXX-XX1/4", See body section
54Lock nutXXXXX-XX1/4-20, See body section
56Side cargo rack74168-G0148" Passenger side1
57Side cargo rack74168-G0248" Driver side1

Weather Protection

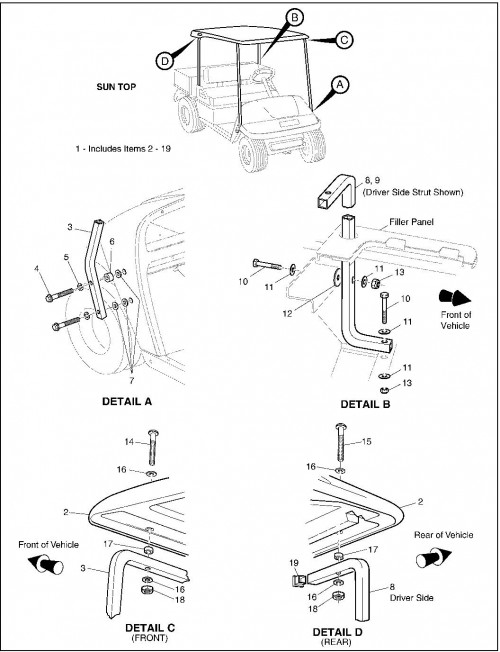

2001 Gas 28_Weather Protection

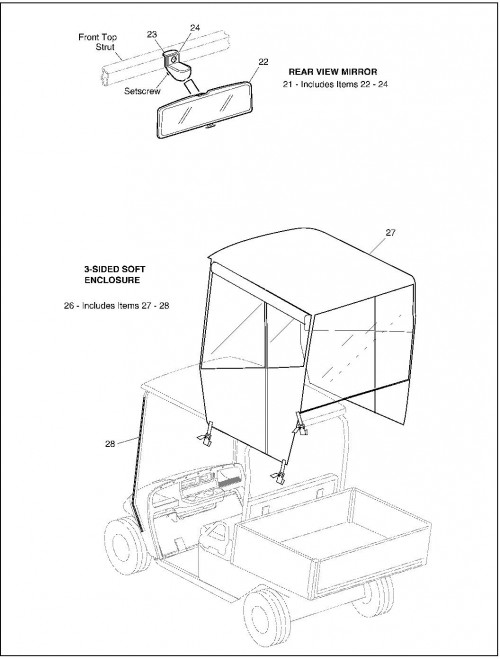

2001 Gas 28_Weather Protection_2

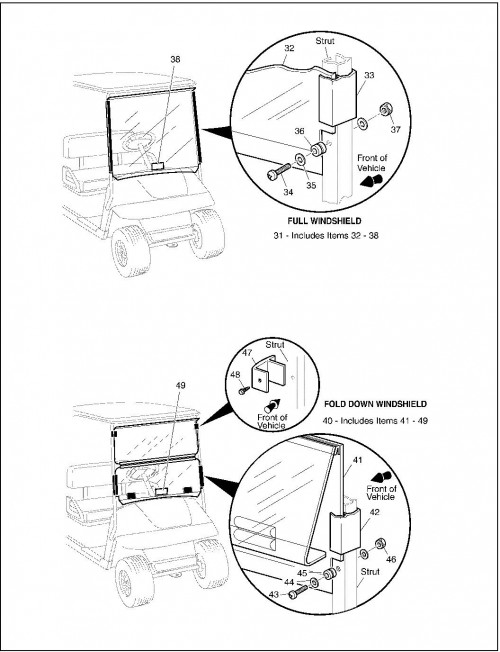

2001 Gas 28_Weather Protection_3

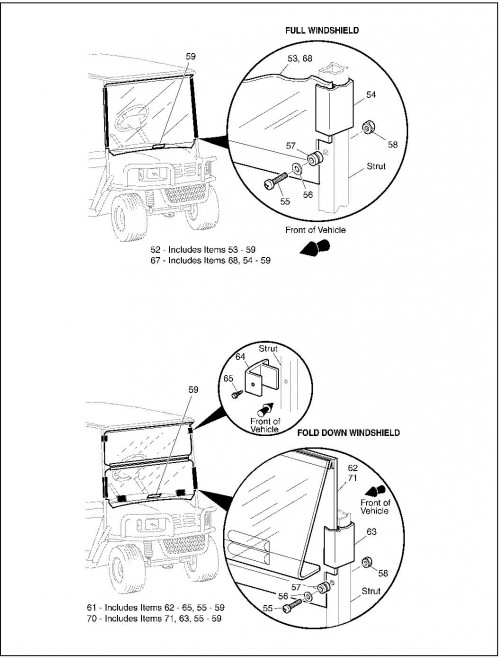

2001 Gas 28_Weather Protection_4

Sl NoPart descriptionPart numberNotesQuantityPurchase
1Sun top kit75350-G02includes items 2-191
2Sun top27069-G071
3Front strut75045-G011
4Bolt01035-G015/16-18 X 2 1/4" LG4
5Lock washer00905-G8 5/16"4
6Spacer75048-G01 1/2"2
7Washer00570-G2 5/16"6
8Rear strut75343-G01Passenger side1
9Rear strut75343-G02Driver side1
10Bolt00439-G65/16-18 X 1 3/4" LG4
11Washer00571-G2 5/16"8
12Washer15121-G1 3/8"2
13Lock nut11098-G65/16 -184
14Screw00753-G51/4 - 20 X 2" LG, Stainless steel2
15Screw00753-G61/4 - 20 X 2 1/4" LG, Stainless steel2
16Washer00559-G7 1/4"8
17Plastic spacer75051-G014
18Lock nut00891-G21/4 - 204
19End cap19853-G11"2
21Rear view mirror kit19528-G2includes items 22 - 241
22Rear view mirror19496-G11
23Support bracket19502-G21
24Screw19527-G1#8 - 32 X 5/8" LG, Stainless steel1
263-sided soft enclosure kit75367-G0*includes items 27 - 281
27Enclosure*1
28Velcro*AR
31Windshield kit75524-G01Full, 1200 / 2200, includes items 32 - 381
32Windshield*Full1
33SashEGWHC1226" LG2
34ScrewEGWHS121/4 - 20 X 1 3/4" LG, Stainless steel2
35WasherEGWHW121/4", Stainless steel4
36Rubber grommetEGWHG132
37Lock nutEGWHN121/4 - 20 Stainless steel2
38LabelEGWHL-14Safety1
40Windshield kit75525-G01Fold down, 1200 / 2200, includes items 41 - 491
41Windshield*Fold down1
42SashEGWHC1012" LG2
43ScrewEGWHS121/4 - 20 X 1 3/4" LG, Stainless steel2
44WasherEGWHW121/4", Stainless steel4
45Rubber grommetEGWHG132
46Lock nutEGWHN121/4 - 20, Stainless steel2
47Top grip137-0103/4" X 2"2
48Grip fastener136-0082
49LabelEGWHL-14Safety1
52Windshield kit71966-G01Full, LX / SE, includes items 53 - 59, requires sun top kit1
53Windshield*Full, Lexan1
54SashEGWHC1226" LG2
55ScrewEGWHS121/4 - 20 X 1 3/4" LG, Stainless steel2
56WasherEGWHW121/4", Stainless steel4
57Rubber grommetEGWHG132
58Lock nutEGWHN121/4 - 20, Stainless steel2
59Safety labelEGWHL141
61Windshield kit71966-G02Fold down, LX / SE includes items 62 - 65, 55 - 59, requires sun top kit1
62Windshield*Fold down, Lexan1
63SashEGWHC1012" LG2
64Top grip137-0103/4" X 2"2
65Grip fastener136-0082
67Windshield kit71966-G03Full, LX / SE, includes items 68, 54 - 59, requires sun top kit1
68Windshield*Full, Acrylic1
70Windshield kit71966-G04Fold Down, LX / SE, includes items 71, 63, 55 - 59, requires sun top kit1
71Windshield*Fold down, Acrylic1

Wheels & Tires

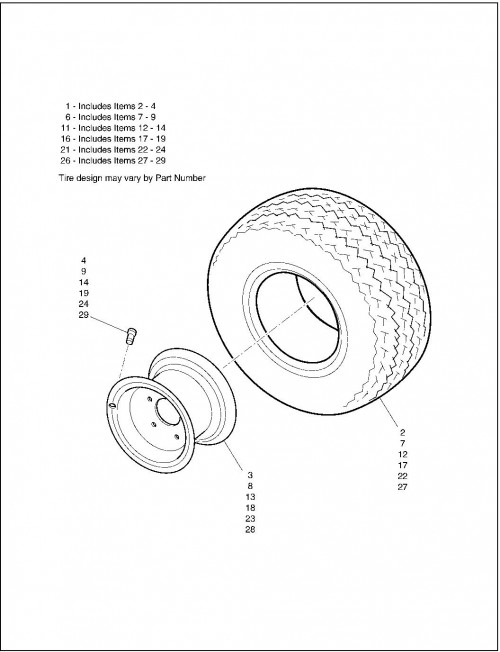

2001 Gas 29_Wheels & Tires

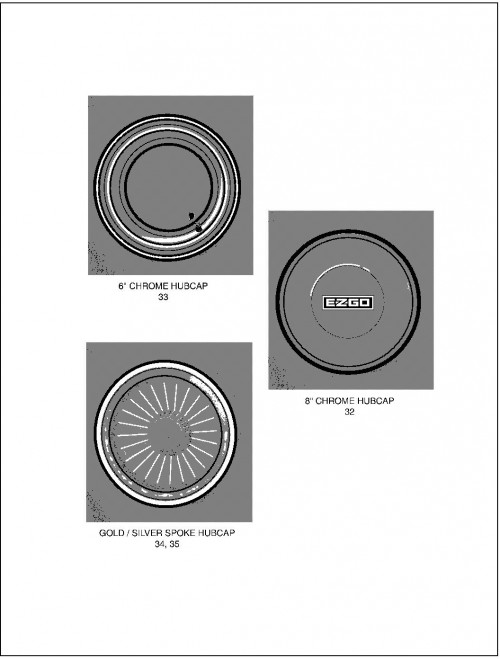

2001 Gas 29_Wheels & Tires_2

Sl NoPart descriptionPart numberNotesQuantityPurchase
1Wheel and tire assembly27772-G03Turf saver, includes items 2 - 4A/R
2Carlisle tire27772-G07Turf saver 18 X 8.5 - 8, 4 ply rated1
3Wheel rim15169-G14 Lug1
4Valve stem11657-G11
6Wheel and tire assembly27772-G09Links 1, includes items 7 - 9A/R
7Carlisle tire27772-G10Links 1 18 X 8.5 - 8, 4 PLY rated 1
8Wheel rim15169-G14 Lug1
9Valve stem11657-G11
11Wheel and tire assembly27772-G01Links, includes items 12-14A/R
12Carlisle tire27772-G05Links 18 X 8.5 - 8, 4 PLY rated1
13Wheel rim15169-G14 Lug1
14Valve stem11657-G11
16Wheel and tire assembly27775-G01USA Trail, includes items 17-19A/R
17Carlisle tire27775-G02USA Trail 18.0 X 8.50 - 8, Load range C1
18Wheel rim15169-G14 Lug1
19Valve stem11657-G11
21Wheel and tire assembly27784-G01USA Trail, incl items 22 - 24A/R
22Carlisle tire27784-G03USA Trail 5.70 - 8, Load range C1
23Wheel rim20732-G14 Lug1
24Valve stem11657-G11
26Wheel and tire assembly28374-G01Turf saver incl items 27 - 29A/R
27Carlisle tire21526-G2Turf saver 9.50 X 8, 6 PLY rated1
28Wheel rim20732-G14 Lug1
29Valve stem11657-G11
328" chrome hubcap14913-G*OptionalA/R
336" chrome hubcap16042-G*OptionalA/R
34Gold spoke hubcap19241-G*OptionalA/R
35Silver spoke hubcap19241-G*OptionalA/R

Specialty Products

Sl NoPart descriptionPart numberNotesQuantityPurchase
1High resistance spark plug wire set26733-G02
2Clutch puller19779-G12 Prong
3Clutch puller19779-G23 Prong - 4 cycle
4Flywheel puller27111-G01
5Cam pulley tool27851-G01
6Current indicator16489-G2
7Digital multi-meter27481-G01
8Crimping tool27765-G01
9Slide hammer15947-G1Axle/Hub removal
10Slide hammer18753-G1Axle removal only
11Valve seat cutter kit72516-G01
12Flex-hone cylinder hone72517-G01240 Grit
13Flex-hone honing oil72518-G011 Quart950 Ml
14Flex-hone cleaning brush72519-G01
15Piston ring installer72521-G01
16Valve grinder72522-G01Cup type
17Grinding compound72523-G01280/320 Grit
18Compression tester72524-G01
19Feeler gauge72525-G01
20Tachometer72526-G01
214 cycle engine oil25730-G035 Gallon19 Liter
224 cycle engine oil25730-G0412 Quart case
234 cycle engine oil25730-G061 Quart bottle950 Ml
246 ounce brush on paint - hunter green28432-G02
256 ounce brush on paint - industrial yellow28432-G03
266 ounce brush on paint - white28432-G05
2712 ounce aerosol - hunter green28140-G09
2812 ounce aerosol - industrial yellow28140-G14
2912 ounce spray - white28140-G03
30Formula 40 vinyl-coat®-white28166-G01
31Plexus® cleaner, 7 ounce28433-G01For windshields210 Ml
32Plexus® cleaner, 13 ounce28433-G02For windshields380 Ml
33Battery protector75500-G0114 Ounce spray410 Ml
34Carburetor & choke cleaner75501-G0115 Ounce spray440 Ml
35White lithium grease75502-G0114 Ounce spray410 Ml
36Penetrant/lubricant75503-G0115 Ounce spray440 Ml
37Multi-purpose cleaner & degreaser75504-G0114 Ounce spray410 Ml
38Multi-purpose hand cleaner75505-G0132 Ounce liquid950 Ml
39Battery cleaner75506-G0132 Ounce with trigger sprayer950 Ml
40Bio-degradeable cleaner75507-G0132 Ounce with trigger sprayer950 Ml
41Multi-purpose value pack75508-G01
Battery protector4 Ounce spray120 Ml
Penetrant/lubricant4 Ounce spray120 Ml
White lithium grease4 Ounce spray120 Ml
Carburetor & choke cleaner4 Ounce spray120 Ml

Accessories

Sl NoPart descriptionPart numberNotesQuantityPurchase
1Ashtray kit75109-G02See Body
2Ball hitch kit74270-G0*See Body
3Cab75853-G0*Ball Cage, See Cab
4Cab door set75856-GO*See Cab
5Cab door set75855-G01Vinyl, See Cab
6Cab75854-GO*See Cab
7Cab switch panel74250-G01See Cab
8Clevis hitch kit74270-G0*See Body
9Chrome hub cap 8"14913-G*See Wheels And Tires
10Chrome hub cap 6"16042-G*See Wheels And Tires
11Defroster/cooling fan74248-G01See Cab
12Electric dump kit74164-G02See Truck Bed
13Glove box door75459-G0*See Body
14Hour meter kit75114-G02See Electrical System
15Inside mirror27924-G01See Weather Protection
16Ramp kit28334-G01See Truck Bed
17Rear view mirror kit9528-G2See Weather Protection
18Soft enclosure75367-G0*See Weather Protection
19Strobe light74245-G01See Cab
20Sun top kit75350-G0*See Weather Protection
21Turn signal kit75107-G02See Electrical System
22Wheel covers19241-G*Gold Spoke, See Wheels And Tires
23Wheel covers19241-G*Silver Spoke, See Wheels And Tires
24Windshield75524-G01Full 1200 / 2200, See Weather Protection
25Windshield75525-G01Fold Down 1200 / 2200, See Weather Protection
26Windshields71966-G0*1200 LX / 2200 SE, See Weather Protection
27Windshield wiper74244-G01See Cab
28Work lights74247-G01See Cab
29Work light bar with lights75354-G01See Electrical System
30Work light bar with strobe75354-G02See Electrical System
31Work light bar with lights and strobe75354-G03See Electrical System
