TXT 5E

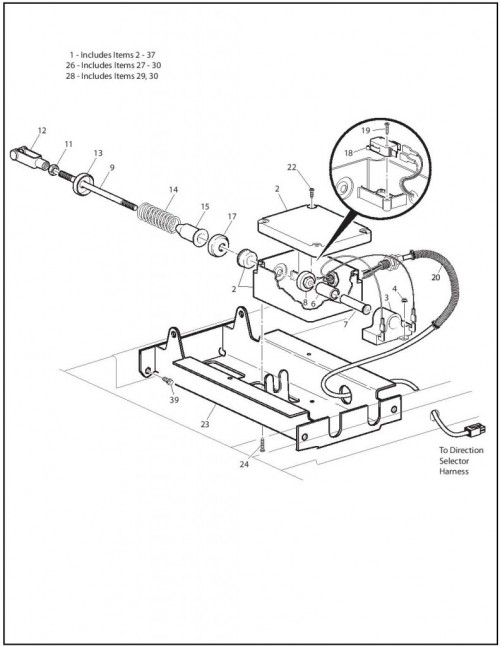

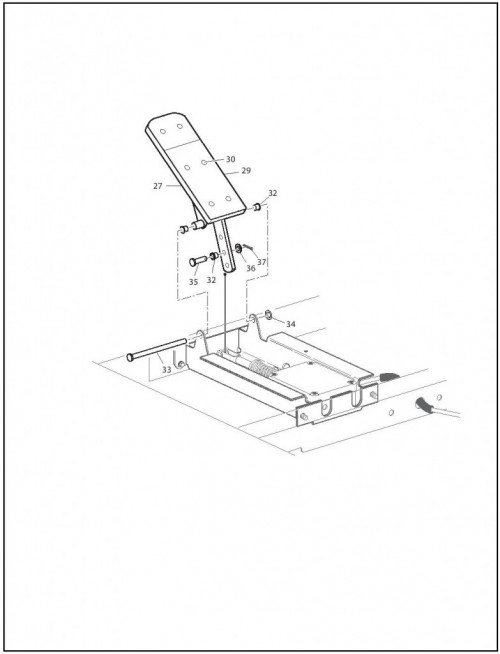

Accelerator
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Pedal Box Assembly, PDS Model Only | 73333-G07 | Includes items 2 - 37 | 1 | |
| 2 | Pedal Box And Cover | 25853-G01 | Seal and bearing | 1 | |
| 3 | Inductive Throttle Sensor | 25854-G01 | 1 | ||
| 4 | Self Threading Nut | 00983-G01 | 3/16" | 2 | |
| 6 | Plunger Sleeve | 25857-G01 | 1 | ||
| 7 | Plunger | 28443-G01 | 1 | ||
| 8 | Plunger Cam | 28444-G01 | 1 | ||
| 9 | Accelerator Rod | 73332-G01 | 1 | ||
| 11 | Lock Nut | 00532-G4 | 5/16 - 24 | 1 | |
| 12 | Yoke | 10385-G4 | Adjustable | 1 | |
| 13 | Spring Retainer | 17677-G2 | 3/8" | 1 | |
| 14 | Compression Spring | 73046-G01 | 1 | ||
| 15 | Accelerator Rod Bushing | 17979-G1 | 1 | ||
| 17 | Spring Retainer | 17677-G1 | 1/2" | 1 | |
| 18 | Micro Switch | 25861-G02 | PDS Model only | 1 | |
| 19 | Screw | 01050-G01 | #4 - 20 x 5/8" LG | 2 | |
| 20 | Wiring Harness | 25879-G06 | Pedal Box Assembly, PDS Model Only | 1 | |
| 22 | Screw | 00684-G6 | #8 - 32 x 3/4" LG | 2 | |
| 23 | Accelerator Pedal Bracket | 70116-G02 | 1 | ||
| 24 | Screw | 01051-G01 | #8 - 16 x 1/2" LG | 4 | |
| 26 | Accelerator Pedal Assembly | 25799-G03 | Includes items 27 - 30 | 1 | |
| 27 | Accelerator Pedal | 25799-G03 | 1 | ||
| 28 | Accelerator Pedal Pad Kit | 27844-G01 | includes items 29, 30 | 1 | |
| 29 | Accelerator Pedal Pad | 27514-G01 | 1 | ||
| 30 | Oval Rivet | 15766-G1 | 3/16" x 7/16" LG | 6 | |
| 32 | Bushing | 17838-G1 | 3 | ||
| 33 | Pedal Pivot Pin | 74432-G01 | 1 | ||
| 34 | Pushnut | 12064-G6 | 9/32" I.D. | 1 | |
| 35 | Clevis Pin | 10386-G3 | 5/16" x 13/16" LG | 1 | |
| 36 | Teflon Washer | 17255-G1 | 5/16" | 1 | |
| 37 | Cotter Pin | 10387-G3 | 3/32" x 3/4" LG | 1 | |
| 39 | Bolt | 00715-G2 | 5/16 - 18 x 13/16" LG | 4 |

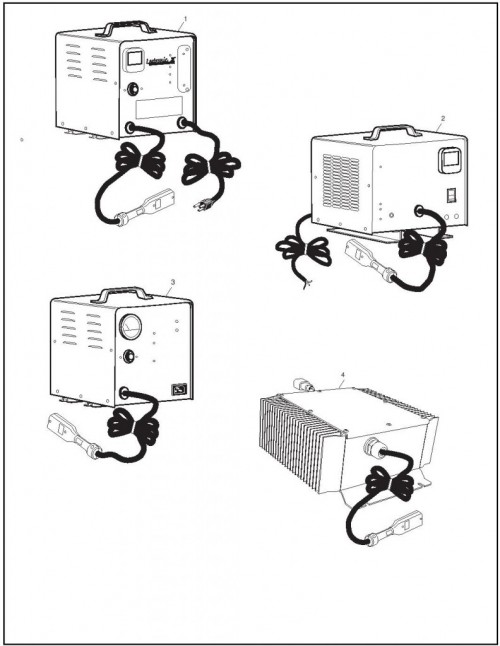

Battery Charger
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | 48V Lester Battery Charger | 28435-G03 | 1 | ||
| 2 | 48V Lester Battery Charger with Switchable Input | 28435-G01 | 1 | ||
| 3 | 48V Lester Battery Charger CE Approved | 28435-G05 | 1 | ||
| 4 | 48V Delta-Q Battery Charger With 10' DC Cord | 600341-G03 | includes items 5-7 | 1 | |
| 5 | 48V Delta-Q Charger | 600340-G02 | 1 | ||
| 6 | 48V DC Cable Assembly | 600463-G02 | 1 | ||
| 7 | AC Power Cord | 600462-G01 | Not shown | 1 |

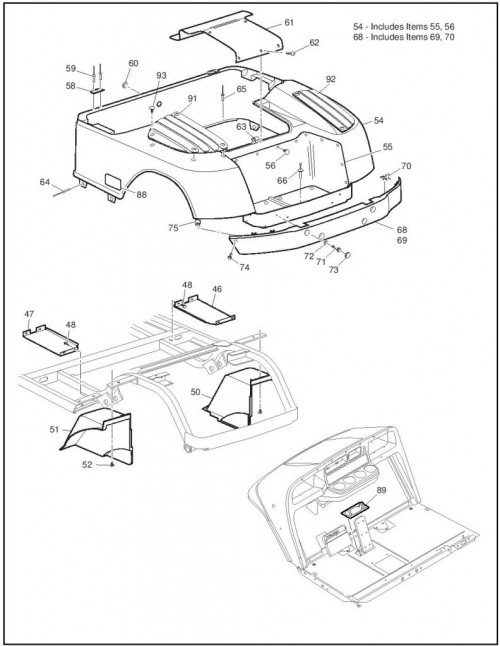

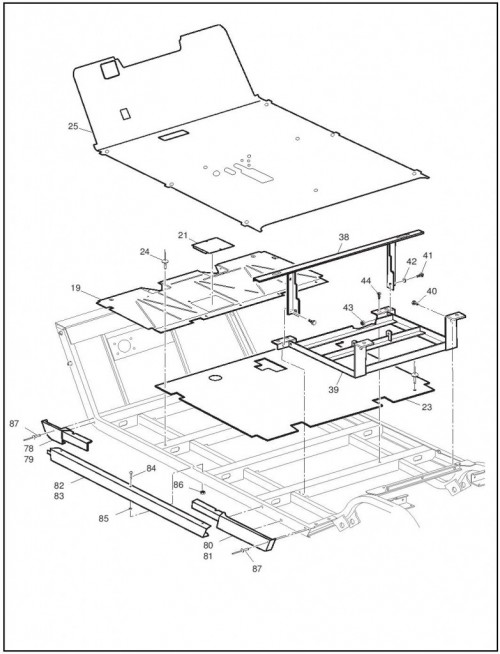

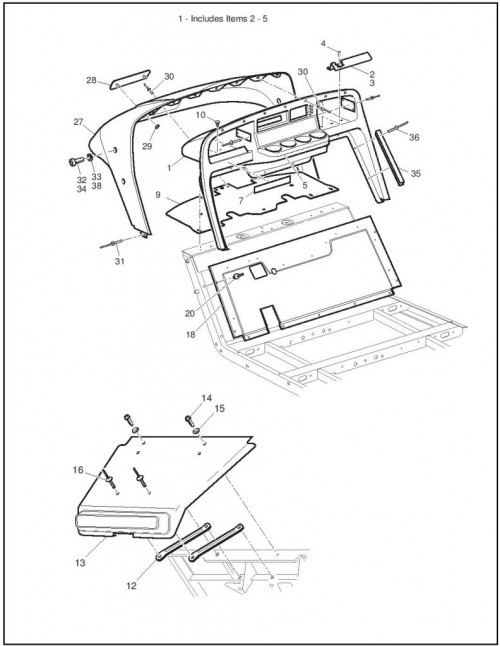

Body
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Instrument Panel Assembly | 71151-G01 | includes items 2 - 5 | 1 | |
| 2 | Deflector | 71153-G01 | Passenger Side | 1 | |
| 3 | Deflector | 71154-G01 | Driver Side | 1 | |
| 4 | Screw | 00614-G5 | #8 - 18 x 5/8" LG | 6 | |
| 5 | Instrument Panel Insert | 71158-G01 | 4 Cup Holder | 1 | |
| 7 | Label | 74443-G01 | Anti - Rollback | 1 | |
| 9 | Splash Panel | 71413-G01 | 1 | ||
| 10 | Ratchet Fastener | 16816-G2 | 1/4" x 3/4" LG | 5 | |
| 12 | Front Shield Brace | 70725-G01 | 2 | ||
| 13 | Front Shield | 27166-G04 | 1 | ||
| 14 | Bolt | 01038-G01 | 1/4 - 20 x 11/16" LG | 2 | |
| 15 | Washer | 16469-G1 | 1/4" | 2 | |
| 16 | Rivet, KTR | 01057-G01 | 1/4" 3/4" LG | 2 | |
| 18 | Upper Floorpan | 70662-G01 | 1 | ||
| 19 | Lower Floorpan | 70451-G01 | 1 | ||
| 20 | Rivet, KTR | 14601-G11 | 3/16" x 9/16" LG (Aluminum) | 16 | |
| 21 | Access Cover | 70452-G01 | 1 | ||
| 23 | Rear Floorpan | 70823-G01 | 1 | ||
| 24 | Rivet | 10570-G10 | 5/32" x 9/16" LG (Stainless Steel) | 5 | |
| 25 | Floormat | 70668-G0* | 1 | ||
| 27 | Cowl | 71051-G** | 1 | ||
| 28 | E-Z-Go Nameplate | 71037-G02 | Gold | 1 | |
| 29 | Pushnut | 71597-G01 | 3/16" | 2 | |
| 30 | Rivet | 71055-G01 | 3/16" x 1" LG | 9 | |
| 31 | Rivet | 10570-G11 | 3/16" x 3/4" LG (Stainless Steel) | 2 | |
| 32 | Bolt | 71056-G01 | 5/16 - 18 x 5/8" LG (Without Sun Top) | 4 | |
| 33 | Washer | 00570-G2 | 5/16 (Without Sun Top) | 4 | |
| 34 | Bolt | 00438-G6 | 5/16 - 18 x 5/8" LG (Without Sun Top) | 2 | |
| 35 | Vinyl Trim | 71115-G01 | 2 | ||
| 36 | Rivet | 71055-G01 | 3/16" x 1" LG | 10 | |
| 37 | Washer | 00571-G2 | 5/16 (Without Sun Top) | 2 | |
| 38 | Seat Frame | 70441-G01 | 1 | ||
| 39 | Battery Rack | 70046-G02 | 1 | ||
| 40 | Bolt | 00715-G2 | 5/16 - 18 x 13/16" LG | 4 | |
| 41 | Bolt | 00438-G6 | 5/16 - 18 x 3/4" LG | 2 | |
| 42 | Washer | 00559-G8 | 5/16" | 2 | |
| 43 | Lock Nut | 11098-G6 | 5/16 - 18 | 2 | |
| 44 | Screw | 70200-G01 | 3/8 - 16 x 3/4" LG | 2 | |
| 46 | Splash Pan | 70385-G01 | Passenger Side | 1 | |
| 47 | Splash Pan | 70385-G02 | Driver Side | 1 | |
| 48 | Bolt | 00715-G2 | 5/16 - 18 x 13/16" LG | 8 | |
| 50 | Fender Liner | 71812-G01 | Passenger Side | 1 | |
| 51 | Fender Liner | 71812-G02 | Driver Side | 1 | |
| 52 | Ratchet Fastener | 16816-G2 | 1/4" x 3/4" LG | 8 | |
| 54 | Rear Body Assembly | 71912-G** | W/out Taillights, Includes items 55, 56 | 1 | |
| 55 | Bagwell Liner | 71318-G01 | 1 | ||
| 56 | Ratchet Fastener | 16816-G1 | 1/4" x 9/16" Lg | 20 | |
| 58 | Hinge Plate | 71609-G01 | 2 | ||
| 59 | Rivet | 10570-G11 | 3/16" x 3/4" LG, Stainless steel | 4 | |
| 60 | Plug | 71316-G01 | 1 | ||
| 61 | Access panel | 71320-G01 | 1 | ||
| 62 | Screw | 01107-G01 | #8 x 5/8" LG | 5 | |
| 63 | J' Clip | 71364-G02 | 1 | ||
| 64 | Rivet | 10570-G12 | 1/4" x 9/16" LG (Aluminum) | 4 | |
| 65 | Rivet | 10570-G10 | 5/32" x 9/16" LG (stainless Steel) | 6 | |
| 66 | Plastic Drive Rivet | 18436-G1 | 1/4" x 9/16" LG | 2 | |
| 68 | Rear Bumper Assembly | 71451-G02 | includes items 69 & 70 | 1 | |
| 69 | Rear Bumper | 71451-G01 | 1 | ||
| 70 | Stay | 71457-G01 | 4 | ||
| 71 | Bolt | 71398-G01 | 1/7 - 20 x 1 1/4" LG | 4 | |
| 72 | Washer | 00571-G2 | 5/16" | 4 | |
| 73 | Bumper Plug | 71455-G01 | 4 | ||
| 74 | Bolt | 71102-G03 | 1/4 - 20 xx 11/16" LG | 2 | |
| 75 | J-Type Nut Retainer | 71554-G01 | 1/4 - 20 | 2 | |
| 78 | Rocker Panel | 71642-G01 | Front, Driver Side | 1 | |
| 79 | Rocker Panel | 71642-G02 | Front, Passenger Side | 1 | |
| 80 | Rocker Panel | 71643-G01 | Rear, Driver Side | 1 | |
| 81 | Rocker Panel | 71643-G02 | Rear, Passenger Side | 1 | |
| 82 | Sill Plate | 71641-G01 | Passenger Side | 1 | |
| 83 | Sill Plate | 71641-G02 | Driver Side | 1 | |
| 84 | Screw | 16705-G1 | 1/4 - 20 x 1" LG (Stainless Steel) | 6 | |
| 85 | Spacer | 23726-G4 | 5/16" | 6 | |
| 86 | Lock Nut | 00891-G2 | 1/4 - 20 | 6 | |
| 87 | Rivet | 15058-G6 | 3/16" x 15/16" LG (Aluminum) | 4 | |
| 88 | Label | 600815 | 2 | ||
| 89 | Pedal Pivot Cover | 70135-G01 | 1 | ||
| 91 | Fender Scuffguard | 75126-G01 | Driver Side | 1 | |
| 92 | Fender Scuffguard | 75126-G02 | Passenger Side | 1 | |
| 93 | Ratchet Fastener | 16816-G2 | 1/4" x 3/4" LG | 8 |

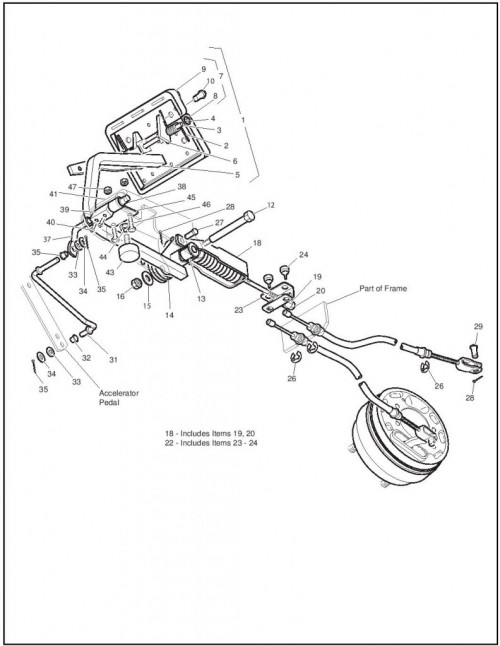

Brakes – Mechanical
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Brake Pedal Assembly | 70612-G02 | Without Brake Lights | 1 | |
| 2 | Torsion Spring | 70681-G01 | 2 | ||
| 3 | Pivot Pin | 70682-G01 | 1 | ||
| 4 | Pushnut | 01071-G01 | 5/16" | 2 | |
| 5 | Brake Pedal | * | 1 | ||
| 6 | Park Brake Pedal | 70611-G02 | 1 | ||
| 7 | Brake/Park Brake Pedal Pad Kit | 70274-G02 | 1 | ||
| 8 | Service Brake pad | * | 1 | ||
| 9 | Park Brake Pedal Pad | * | 1 | ||
| 10 | Oval Rivet | 15766-G1 | 3/16" x 7/16" LG | 9 | |
| 12 | Shoulder Bolt | 70582-G01 | 3/8 - 16 x 4" LG (Stainless Steel) | 1 | |
| 13 | Flanged Bushing | 70581-G01 | 2 | ||
| 14 | Torsion Spring | 70676-G01 | 1 | ||
| 15 | Washer | 00643-G1 | 3/8" | 1 | |
| 16 | Lock Nut | 11098-G5 | 3/8 - 16 | 1 | |
| 18 | Compensator Assembly | 70272-G04 | includes items 19, 20 | 1 | |
| 19 | Spherical Nut | 00963-G01 | 5/16 - 24 | 1 | |
| 20 | Lock Nut | 11098-G9 | 5/16 - 24 | 1 | |
| 22 | Equalizer and Brake Cable Assembly | 70969-G06 | includes items 23-24 | 1 | |
| 23 | Equalizer Bracket | 28082-G01 | 1 | ||
| 24 | Brake Compensator Bumper | 28083-G01 | 2 | ||
| 26 | Retaining Ring | 01111-G01 | 13/32" (Stainless Steel) | 4 | |
| 27 | Clevis Pin | 10386-G3 | 5/16" x 13/16" LG | 1 | |
| 28 | Cotter Pin | 10387-G3 | 3/32" x 3/4" LG | 3 | |
| 29 | Clevis Pin | 14443-G2 | 5/16" x 5/8" LG | 2 | |
| 31 | Kick-Off Link | 70601-G01 | 1 | ||
| 32 | Nylon Bushing | 17838-G1 | 2 | ||
| 33 | Teflon Washer | 20835-G1 | 3/8" | 2 | |
| 34 | Washer | 00559-G8 | 5/16" | 2 | |
| 35 | Cotter Pin | 10387-G3 | 3/32" x 3/4" LG | 2 | |
| 37 | Kick-off Cam Pivot | 70098-G01 | 1 | ||
| 38 | Flanged Bearing | 10097-G6 | 2 | ||
| 39 | Kick-off Cam | 70587-G01 | 1 | ||
| 40 | Setscrew | 71215-G01 | 1/4 - 20 x 1/2" LG | 2 | |
| 41 | Spacer | 14134-G4 | 1 | ||
| 43 | Adjustable Bumper | 70113-G01 | 1 | ||
| 44 | Lock Nut | 11027-G1 | 5/16 - 18 | 1 | |
| 45 | Catch Bracket | 70080-G02 | 1 | ||
| 46 | Bolt | 00414-G6 | 1/4 - 20 x 3/4" LG | 2 | |
| 47 | Lock Nut | 14390-G4 | 1/4 - 20 (Stainless Steel) | 2 | |

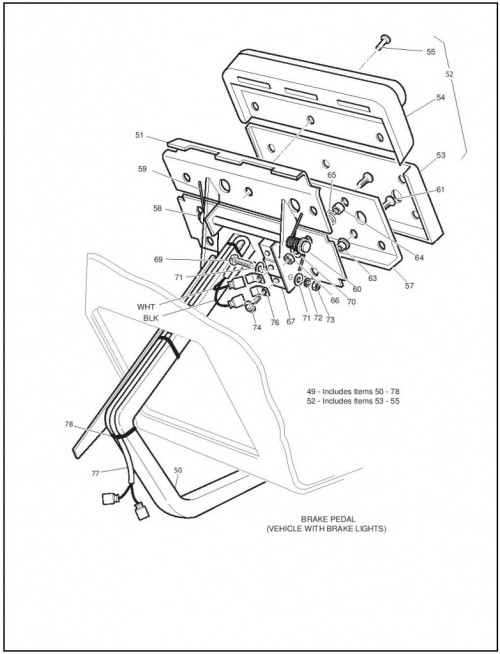

| 49 | Brake Pedal Assembly | 74874-G01 | With Brake Lights, includes items 50 - 78 | 1 | |
| 50 | Brake Pedal | * | 1 | ||
| 51 | Park Brake Pedal | 74724-G01 | 1 | ||
| 52 | Brake/Park Brake Pedal Pad Kit | 70274-G01 | includes items 53 - 55 | 1 | |
| 53 | Service Brake pad | * | 1 | ||
| 54 | Park Brake Pad | * | 1 | ||
| 55 | Oval Rivet | 15766-G1 | 3/16" x 7/16" LG | 9 | |
| 57 | Brake Pedal Plate | 70258-G03 | 1 | ||
| 58 | Pivot Pin | 70682-G01 | 1 | ||
| 59 | Torsion Spring | 70681-G01 | 2 | ||
| 60 | Pushnut | 01071-G01 | 5/16" | 1 | |
| 61 | Screw | 00737-G8 | #10 - 24 x 7/8" LG | 4 | |
| 63 | Rubber Nut | 00739-G1 | #10 - 24 | 2 | |
| 64 | Brake Pedal Standoff | 74535-G01 | 2 | ||
| 65 | Conical Spring | 27137-G01 | 2 | ||
| 66 | Lock Nut | 14390-G10 | #10 - 24 | 2 | |
| 67 | Micro Switch | 10606-G8 | 1 | ||
| 69 | Bolt | 00957-G1 | #6 - 32 x 1 1/4" LG | 2 | |
| 70 | Washer | 00559-G5 | #10 | 2 | |
| 71 | Washer | 00559-G3 | #6 | 4 | |
| 72 | Lock Washer | 00565-G3 | #6 | 2 | |
| 73 | Nut | 00525-G5 | #6 - 32 | 2 | |
| 74 | Screw And Lock Washer | 13514-G1 | #6 | 2 | |
| 76 | Faston Tab | 14628-G1 | 2 | ||
| 77 | Wire harness | 24605-G1 | Brake Light | 1 | |
| 78 | Wire Tie | 17618-G1 | 3 | ||

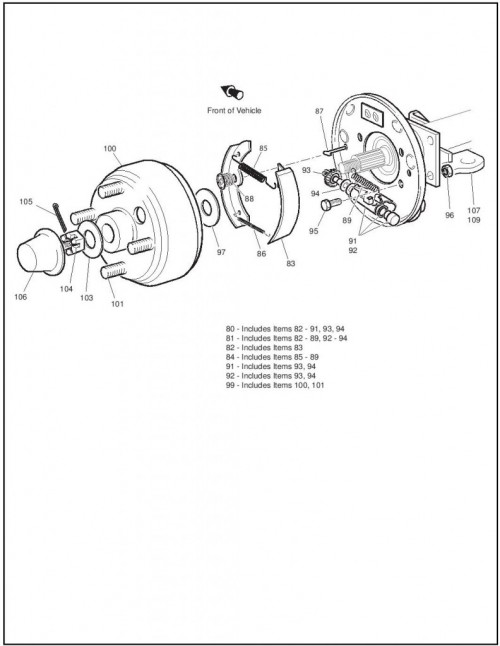

| 80 | Brake Assembly | 70998-G01 | Driver side, includes items 82 - 91, 93, 94 | 1 | |
| 81 | Brake Assembly | 70998-G02 | Passenger side, includes items 82 - 89, 92 - 94 | 1 | |
| 82 | Brake Shoe Kit | 70794-G01 | includes item 83 | 2 | |
| 83 | Brake Shoe | * | 2 | ||
| 84 | Brake Spring Kit | 27944-G01 | includes items 85 - 89 | 2 | |
| 85 | Upper Spring | * | 1 | ||
| 86 | Lower Spring | * | 1 | ||
| 87 | Pin | * | 2 | ||
| 88 | Cup And Spring | * | 2 | ||
| 89 | Adjuster Spring | * | 1 | ||
| 91 | Brake Adjuster Kit | 72582-G01 | Driver Side, includes items 93, 94 | 1 | |
| 92 | Brake Adjuster Kit | 72582-G02 | Passenger Side, Includes items 93, 94 | 1 | |
| 93 | Adjuster | * | 1 | ||
| 94 | Teflon Washer | * | 2 | ||
| 95 | Bolt | 17083-G2 | 5/16 - 24 - 1" LG | 8 | |
| 96 | Lock Nut | 15126-G1 | 5/16 - 24 | 8 | |
| 97 | Inner Brake Drum Washer | 21809-G1 | 1 5/16" OD X 1" ID X 1/32" | 2 | |
| 99 | Brake Drum Assembly | 21807-G1 | includes items 100 - 101 | 2 | |
| 100 | Brake Drum | * | 1 | ||
| 101 | Lug Bolt | 19862-G1 | 1/2 - 20 x 1 3/16"LG | 4 | |
| 103 | Outer Brake Drum Washer | 21830-G1 | 2 | ||
| 104 | Slotted Nut | 00518-G8 | 3/4 - 16 | 2 | |
| 105 | Cotter Pin | 10387-G1 | 1/8" x 1 1/2" LG | 2 | |
| 106 | Spindle Cap | 74175-G01 | 2 | ||
| 107 | Brake Cable Bracket | 72036-G03 | Passenger Side | 1 | |
| 108 | Brake Cable Bracket | 72036-G04 | Driver Side | 1 |

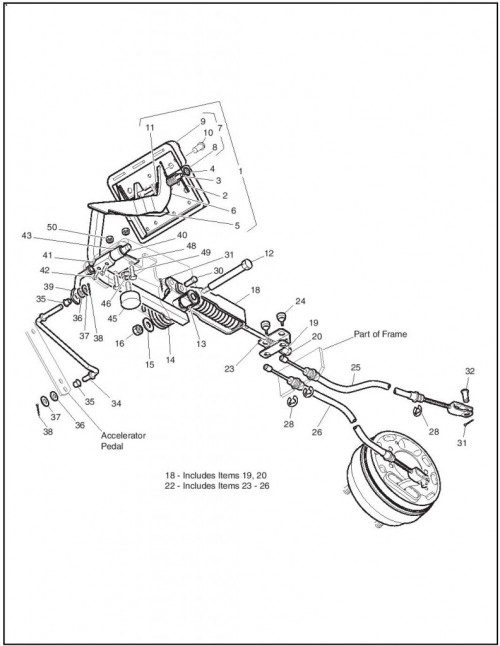

Brakes – Front Disc
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Brake Pedal Assembly | 70612-G01 | Without Brake Lights, includes items 2 - 11 | 1 | |
| 2 | Torison Spring | 70681-G01 | 2 | ||
| 3 | Pivot Pin | 70682-G01 | 1 | ||
| 4 | Pushnut | 01071-G01 | 5/16" | 1 | |
| 5 | Brake Pedal | * | 1 | ||
| 6 | Park Brake Pedal | 74724-G01 | 1 | ||
| 7 | Brake/park Brake Pedal pad Kit | 70274-G01 | includes items 8 - 10 | 1 | |
| 8 | Service Brake Pad | * | 1 | ||
| 9 | Park Brake Pedal pad | * | 1 | ||
| 10 | Oval Rivet | 16409-G1 | 3/16" x 15/32" LG | 9 | |
| 11 | Washer, Teflon | 20835-G1 | 3/8" | 2 | |
| 12 | Shoulder Bolt | 70582-G01 | 3/8 - 16 x 4" LG | 1 | |
| 13 | Flanged Bushing | 70581-G01 | 2 | ||
| 14 | Torison Spring | 70676-G01 | 1 | ||
| 15 | Washer | 00643-G1 | 3/8" | 1 | |
| 16 | Lock Nut | 11098-G5 | 3/8 - 16 | 1 | |
| 18 | Compensator Assembly | 70272-G04 | includes items 19, 20 | 1 | |
| 19 | Spherical Nut | 00963-G01 | 5/16 - 24 | 1 | |
| 20 | Lock Nut | 11098-G9 | 5/16 - 24 | 1 | |
| 22 | Equalizer and Brake Cable Assembly | 70969-G05 | includes items 23 - 26 | 1 | |
| 23 | Equalizer Bracket | 28082-G01 | 1 | ||
| 24 | Brake Compensator Bumper | 28083-G01 | 2 | ||
| 25 | Brake Cable | * | Driver Side | 1 | |
| 26 | Brake Cable | * | Passenger Side | 1 | |
| 28 | Retaining Ring | 01111-G01 | S.S. | 4 | |
| 30 | Clevis Pin | 10386-G3 | 5/16" x 2" LG | 1 | |
| 31 | Cotter Pin | 10387-G3 | 3/32" x 3/4" LG | 3 | |
| 32 | Clevis Pin | 14443-G2 | 5/16" x 3/4" LG | 2 | |
| 34 | Kick-Off Link | 70601-G01 | 1 | ||
| 35 | Nylon Bushing | 17838-G1 | 2 | ||
| 36 | Teflon Washer | 20835-G1 | 3/8" | 2 | |
| 37 | Washer | 00559-G8 | 5/16" | 2 | |
| 38 | Cotter Pin | 10387-G3 | 3/32" x 3/4" LG | 2 | |
| 39 | Kick-Off Cam Pivot | 70098-G01 | 1 | ||
| 40 | Flanged Bearing | 10097-G6 | 2 | ||
| 41 | Kick-Off Cam | 70587-G01 | 1 | ||
| 42 | Setscrew | 71215-G01 | 1/4 - 20 x 1/2" LG | 2 | |
| 43 | Spacer | 14134-G4 | 1 | ||
| 45 | Adjuster Bumper | 70113-G01 | 1 | ||
| 46 | Lock Nut, 5/16 - 18 | 11027-G1 | 1 | ||
| 48 | Catch Bracket | 70080-G01 | 1 | ||
| 49 | Bolt | 00414-G6 | 1/4 - 20 x 3/4" LG | 2 | |
| 50 | Lock Nut | 14390-G4 | 1/4 - 20 | 2 | |
| 53 | Brake Pedal Assembly | 74874-G01 | With Brake Lights, includes items 54 - 80 | 1 | |
| 54 | Brake Pedal | * | 1 | ||
| 55 | Park Brake Pedal | 74724-G01 | 1 | ||
| 56 | Brake/Park Brake Pedal pad Kit | 70274-G01 | includes items 57 - 59 | 1 | |
| 57 | Service Brake Pad | * | 1 | ||
| 58 | Park Brake pad | * | 1 | ||
| 59 | Oval Rivet | 16409-G1 | 3/16" x 15/32"LG | 9 | |
| 61 | Brake Pedal Plate | 70258-G03 | 1 | ||
| 62 | Pivot Pin | 70682-G01 | 1 | ||
| 63 | Torsion Spring | 70681-G01 | 2 | ||
| 64 | Pushnut | 01071-G01 | 5/16" | 1 | |
| 65 | Screw | 00737-G8 | #10 - 24 x 1" LG | 4 | |
| 66 | Rubber Nut | 00739-G1 | #10 - 24 | 2 | |
| 67 | Brake Pedal Standoff | 74535-G01 | 2 | ||
| 68 | Conical Spring | 27137-G01 | 2 | ||
| 69 | Lock Nut | 14390-G10 | #10 - 24 | 2 | |
| 70 | Micro Switch | 10606-G8 | 1 | ||
| 71 | Screw | 00957-G1 | #6 - 32 x 1 1/4" LG | 2 | |
| 72 | Washer | 00559-G5 | #10 | 2 | |
| 73 | Washer | 00559-G3 | #6 | 4 | |
| 74 | Lock Washer | 00565-G3 | #6 | 2 | |
| 75 | Nut | 00525-G5 | #6 - 32 | 2 | |
| 76 | Screw And Lock Washer | 13514-G1 | #6 | 2 | |
| 77 | Washer, Teflon | 20835-G1 | 3/8" | 2 | |
| 78 | Faston Tab | 14628-G1 | 2 | ||
| 79 | Wire Harness | 24605-G1 | Brake Light | 1 | |
| 80 | Wire Tie | 17618-G1 | 3 | ||
| 82 | Spring Plate | 74731-G02 | Passenger Side | 1 | |
| 83 | Spring Plate | 74731-G01 | Driver Side | 1 | |
| 84 | Four Link Rod | 74730-G01 | 2 | ||
| 85 | Lock Nut | 01084-G01 | M10-1.25 | 4 | |
| 86 | Brake Line | 74736-G01 | 1 | ||
| 87 | Screw | 01038-G01 | 1/4 - 20 x 4444" LG | 1 | |
| 88 | Wire Retainer | 74875-G01 | 2 | ||
| 90 | Spindle, Caliper And Disc Hub Assembly | 602281 | Driver Side, Includes items 91, 93 - 103 | 1 | |
| 91 | Disc Brake Spindle | 602176 | Driver side | 1 | |
| 92 | Caliper | 74733-G02 | Driver Side | 1 | |
| 93 | Slotted Nut | 12093-G1 | 1 | ||
| 94 | Drive Flange Stud | 74864-G01 | 4 | ||
| 95 | Roller Bearing | 11750-G2 | 2 | ||
| 96 | Bearing Race | 51141-G1 | 2 | ||
| 97 | Disc Brake Hub | 74995-G01 | 1 | ||
| 98 | Flanged Bearing | 70648-G01 | 1 | ||
| 99 | Washer | 00566-G1 | 3/8" | 2 | |
| 100 | Bolt | 00426-G6 | 3/8 - 16 x 1 | 2 | |
| 101 | bearing | 70749-G01 | 1 | ||
| 102 | Cotter Pin | 00798-G8 | 1 | ||
| 103 | Grease Seal | 25146-G1 | 1 | ||
| 105 | Spindle, Caliper And Disc Hub Assembly | 602288 | passenger Side, includes items 93 - 103, 107 | 1 | |
| 106 | Disc Brake Spindle | 602158G | passenger Side | 1 | |
| 107 | Caliper | 74733-G01 | Passenger Side | 1 | |
| 108 | Disc Brake Service Hub | 74948-G01 | includes items 94 - 97, 103 | 1 | |
| 109 | Kingpin Tube | 70745-G01 | 2 | ||
| 110 | Thrust Washer | 70754-G01 | 2 | ||
| 111 | Washer | 00560-G3 | 1/2" | 4 | |
| 112 | Locknut | 14390-G6 | 1/2 - 13 | 2 | |
| 113 | Capscrew | 00407-G6 | 1/2 - 13 x 6" LG | 2 | |
| 115 | Front Disc Brake Brake Actuator Assembly | 74702-G02 | includes items 116 - 134 | 1 | |
| 116 | Cotter Pin | 10387-G3 | 3/32 x 3/4" LG | 1 | |
| 117 | Nylon Bushing | 17838-G1 | 1 | ||
| 118 | Clevis Pin | 10386-G3 | 5/16 x 1" LG | 1 | |
| 119 | Upper Actuator Pivot | 74753-G01 | 1 | ||
| 120 | Acetal Bushing | 70581-G02 | 4 | ||
| 121 | Shoulder Bolt | 74711-G01 | 1 | ||
| 122 | Washer | 00560-G3 | 1/2" | 1 | |
| 123 | Bolt | 00439-G4 | 1/2 - 13 x 6" LG | 2 | |
| 124 | Flanded Lock Nut | 11098-G6 | 5/16 - 18 | 2 | |
| 125 | jam Nut | 00544-G4 | 1 | ||
| 126 | Master Cylinder | 604804 | 1 | ||
| 127 | Brake Actuator Assembly Housing | 74703-G01 | 1 | ||
| 128 | Locknut | 11098-G5 | 3/8 - 16 | 1 | |
| 129 | Washer | 00679-G1 | 3/8" Stainless | 1 | |
| 130 | Lower Actuator Pivot | 74707-G01 | 1 | ||
| 131 | Clevis Yoke | 10385-G4 | 1 | ||
| 132 | Brake, Actuator Assembly Cover | 605778 | 1 | ||
| 133 | Screw | 01038-G01 | 1/4 - 20 Swageform | 3 | |
| 134 | Master Cylinder Spacer | 604565 | 1 | ||
| 135 | Bolt | 00414-G8 | 1/4 - 20 x 1 1/4" LG | 4 | |
| 136 | Locknut | 00891-G2 | 1/4 - 20 | 4 | |
| 138 | Cotter Pin | 10387-G3 | 3/32 x 3/4 | 2 | |
| 139 | Washer, Nylon | 20835-G1 | 1 | ||
| 140 | Nylon Bushing | 17838-G1 | 2 | ||
| 141 | Actuator Linkage | 74865-G01 | 1 | ||
| 142 | Washer | 00771-G5 | 3/8" | 1 | |
| 143 | Disc Brake Pad And Pin Kit | 74917-G01 | Services One Corner, includes items 144 - 145 | 1 | |
| 144 | Brake Pads | * | 2 | ||
| 145 | Brake Pad Retainer Pins | * | 2 |

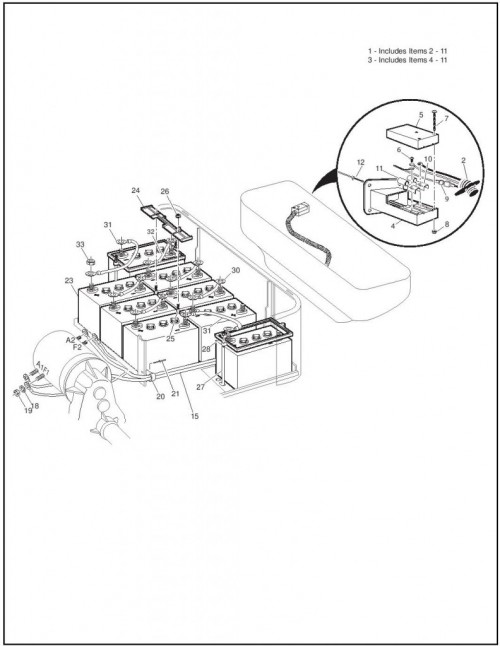

Electrical System
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Charger Harness / Receptacle | 73311-G02 | includes items 2 - 11 | 1 | |
| 2 | Charger Harness | 602822 | 1 | ||
| 3 | Charger Harness Receptacle | 73051-G30 | includes items 4 - 11 | 1 | |
| 4 | Receptacle Bottom | 73051-G22 | 1 | ||
| 5 | Receptacle Cover | 73051-G21 | 1 | ||
| 6 | Screw | 73051-G08 | #10 - 32 x 1/2" LG | 2 | |
| 7 | Screw | 73051-G09 | #6- 32 x 1 3/4" LG | 3 | |
| 8 | Lock Nut | 73051-G10 | #6 - 32 | 3 | |
| 9 | Wire, Red Jumper | 25978-G25 | 18GA | 1 | |
| 10 | Female Contact | 73051-G23 | 1 | ||
| 11 | Female Contact, Insulated | 73051-G24 | 1 | ||
| 12 | Rivet | 71055-G01 | 3/16" X 1" LG | 4 | |
| 15 | Power Harness | 73349-G01 | 1 | ||
| 18 | Lock Washer | 00993-G01 | 5/16" | 4 | |
| 19 | Nut | 28418-G01 | 5/16 - 18 | 4 | |
| 20 | Clamp | 27327-G02 | 1 | ||
| 21 | Rivet | 10570-G11 | 3/16" x 3/4" LG (Stainless Steel) | 1 | |
| 23 | 6 Volt Battery | 8 | |||
| 24 | Battery Retainer | 70045-G01 | 1 | ||
| 25 | Hold Down Bolt | 01101-G01 | 2 | ||
| 26 | Lock Nut | 11027-G1 | 5/16 - 18 | 6 | |
| 27 | Hold Down Bolt | 70366-G01 | 4 | ||
| 28 | Battery Retainer | 70387-G01 | 2 | ||
| 30 | 4GA wire | 25971-G18 | BLK 6" | 4 | |
| 31 | 4 GA Wire | 25971-G13 | BLK 10 1/2" | 2 | |
| 32 | 4 GA Wire | 25971-G16 | BLK 19" | 1 | |
| 33 | Nut | 00702-G2 | 5/16 - 18 | 16 | |

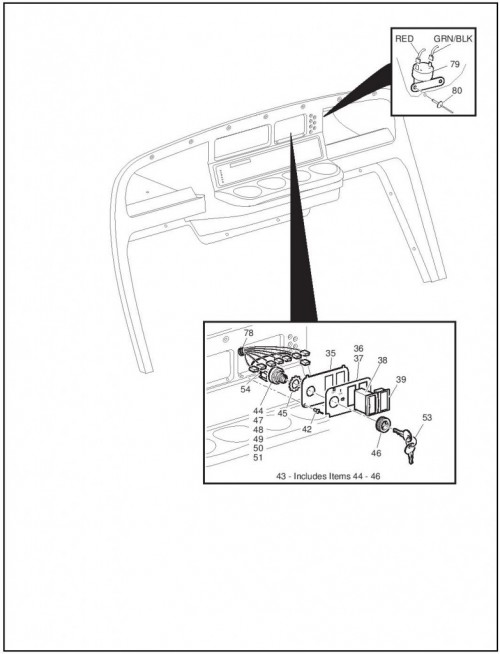

| 35 | Console Insert Plate | 73030-G02 | 1 | ||
| 36 | Label, Direction Selector and State of Charge Meter | 74320-G01 | 1 | ||
| 37 | Label, Lights, Direction Selectora & State of Charge Meter | 74322-G01 | 1 | ||
| 38 | Direction Selector Switch | 74323-G01 | 1 | ||
| 39 | State of Charge Meter | 33636-G05 | Vertical | 1 | |
| 42 | Rivet | 33623-G02 | 3/16" 3/8" LG | 2 | |
| 43 | Ignition Switch Kit | 17421-G1 | includes items 44 - 46 | 1 | |
| 44 | Ignition Switch | 18602-G1 | Without lights, standard key | 1 | |
| 45 | Lock Washer | 00568-G6 | 3/4" | 1 | |
| 46 | Face Nut | 17137-G1 | 1 | ||
| 47 | Ignition Switch | 17955-G1 | Without Lights, Non-Standard Key | 1 | |
| 48 | Ignition Switch | 18027-G1 | Without Lights, Individually Keyed | 1 | |
| 49 | Ignition Switch | 33639-G01 | With Lights, Standard Key | 1 | |
| 50 | Ignition Switch | 33639-G02 | With Lights, Non-Standard Key | 1 | |
| 51 | Ignition Switch | 33639-G03 | With Lights, Individually Keyed | 1 | |
| 53 | Wire Tie | 17618-G1 | 1 | ||
| 54 | 18 GA Wire | 25978-G18 | Red 6" | 1 | |

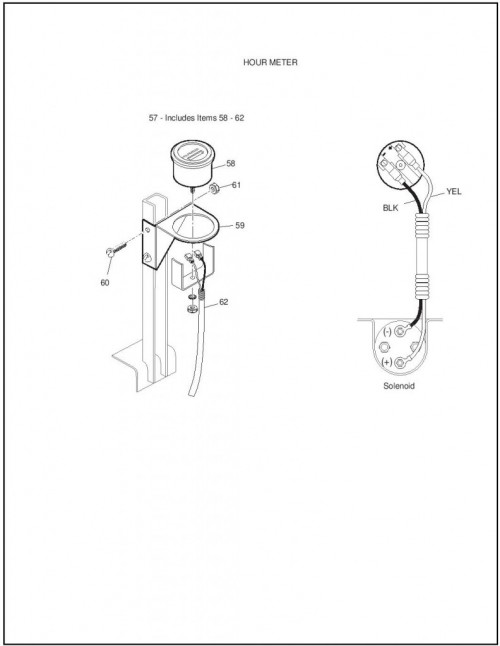

| 57 | Hour Meter Kit | 75113-G06 | includes items 58 - 62 | 1 | |
| 58 | Hour Meter Assembly | 21573-G1 | 1 | ||
| 59 | Hour Meter Bracket | 74019-G02 | 1 | ||
| 60 | Screw | 00379-G4 | #10 -24 x 1/2" LG | 2 | |
| 61 | Lock Nut | 14390-G10 | #10 - 24 | 2 | |
| 62 | Wire Harness | 75117-G04 | Hour Meter | 1 | |

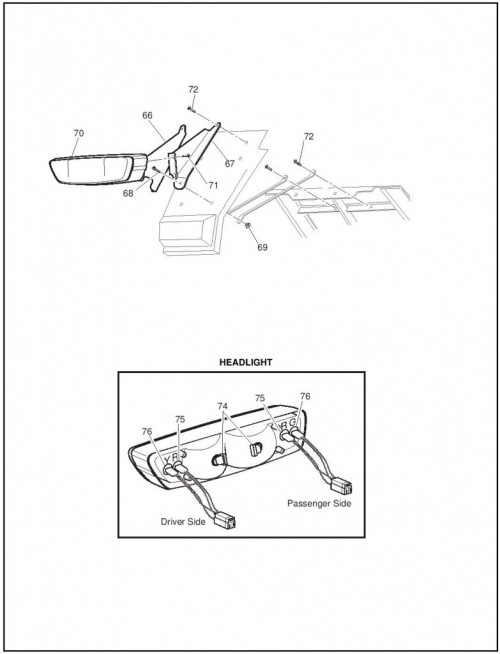

| 66 | Headlight Mount Bracket | 74236-G03 | Passenger Side | 1 | |
| 67 | Headlight Mount Bracket | 74236-G04 | Driver Side | 1 | |
| 68 | Bolt | 00414-G6 | 1/4 - 20 x 3/4" LG | 2 | |
| 69 | Lock Nut | 11027-G2 | 1/4 - 20 | 2 | |
| 70 | Headlight And Turn Signal Light bar | 74001-G01 | 1 | ||
| 71 | Screw | 00114-G6 | 1/4 -20 x 3/4" LG | 4 | |
| 72 | Bolt | 01038-G01 | 1/4 - 20 x 11/16" LG | 4 | |
| 74 | Headlight Bulb | 74004-G01 | 2 | ||
| 75 | Marker Light Bulb | 74005-G01 | 2 | ||
| 76 | Turn Signal Bulb | 74006-G01 | 2 | ||
| 78 | Harness | 73334-G01 | control | 1 | |
| 79 | Buzzer | 73290-G02 | 1 | ||
| 80 | Rivet | 01041-G01 | 5/32" | 2 |

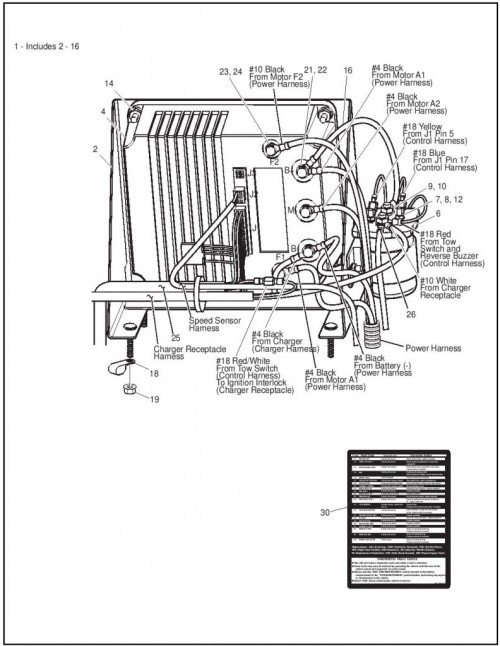

Electrical Speed Control – PDS
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Electronic Speed Control Assembly | 73348-G04 | includes items 2 - 16 | 1 | |
| 2 | Controller Mount | 73351-G00 | 1 | ||
| 4 | Electronic Speed Controller | 73098-G04 | 1 | ||
| 6 | 48 Volt Solenoid | 73231-G01 | includes items 7 - 10 | 1 | |
| 7 | Lock Washer | * | #10 | 2 | |
| 8 | Nut | * | #10 - 32 | 2 | |
| 9 | Lock Washer | * | 5/16" | 2 | |
| 10 | Jam Nut | * | 5/16 - 24 | 2 | |
| 12 | Faston Tab | 73446-G01 | 4 | ||
| 14 | Lock Nut | 11027-G2 | 1/4 - 20 | 6 | |
| 16 | 4 GA Wire | 25971-G17 | BLK 9" | 1 | |
| 18 | Double Tube Clamp | 73053-G01 | 1 | ||
| 19 | Lock Nut | 11027-G2 | 1/4 - 20 | 4 | |
| 21 | Bolt | 73296-G01 | 8 MM X 16MM LG | 3 | |
| 22 | Lock Washer | 00993-G01 | 5/16" | 3 | |
| 23 | Bolt | 73346-G01 | 6MM X 1 X 12MM LG | 2 | |
| 24 | Lock Washer | 00993-G02 | 1/4" | 2 | |
| 25 | Control Harness | 73334-G01 | 1 | ||
| 26 | 4 GA Wire | 25971-G06 | BLK 59 1/2", Sol - Battery + | 1 | |
| 29 | Rivet | 71055-G01 | 5/32" x 3/4" LG | 2 | |
| 30 | Diagnostic Label | 73398-G01 | Fault Code | 1 |

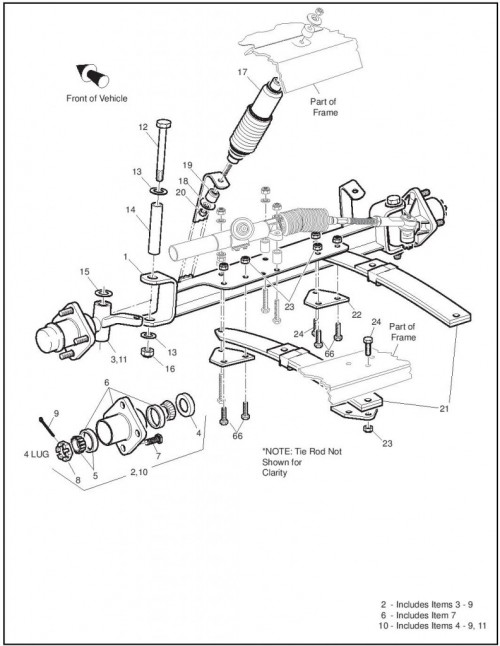

Front Suspension Steering
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Front Axle | 602513 | 1 | ||
| 2 | Spindle Hub Assembly, 4 Lug | 70942-G03 | Passenger Side, includes items 3-9 | 1 | |
| 3 | Spindle Assembly | 70940-G02 | 1 | ||
| 4 | Grease Seal | 25146-G1 | 1 | ||
| 5 | Roller Bearing And Race Assembly | 50892-G1 | 2 | ||
| 6 | Wheel Hub Assembly with Races, 4 Lug | 70895-G01 | includes item 7 | 1 | |
| 7 | Lug Bolt | 19862-G1 | 1/2 - 20 x 1 3/16" LG | 4 | |
| 8 | Castellated Nut | 12093-G1 | Jan-14 | 1 | |
| 9 | Cotter Pin | 00798-G8 | 5/32" x 1 3/4" LG | 1 | |
| 10 | Spindle and Hub Assembly, 4 Lug | 70673-G03 | Driver Side, Includes items 4-9, 11 | 1 | |
| 11 | Spindle Assembly | 70742-G02 | Driver Side | 1 | |
| 12 | Bolt | 00407-G6 | 1/2 - 13 x 6" LG | 2 | |
| 13 | Washer | 00560-G3 | 1/2" | 4 | |
| 14 | King Pin Tube | 70745-G01 | 2 | ||
| 15 | Thrust Washer | 70754-G01 | 1" (Stainless Steel) | 2 | |
| 16 | Lock Nut | 14390-G6 | 1/2 - 13 | 2 | |
| 17 | Shock Absorber | 76419-G01 | 2 | ||
| 18 | Shock Absorber Washer | 10435-G1 | 8 | ||
| 19 | Rubber Busing | 10194-G1 | 8 | ||
| 20 | Nut | 00532-G6 | 3/8 - 24 | 4 | |
| 21 | Leaf Spring | 70664-G03 | Heavy Duty | 2 | |
| 22 | Spring Plate | 70163-G03 | 4 | ||
| 23 | Lock Nut | 00734-G1 | 7/16 - 14 | 11 | |
| 24 | Bolt | 00463-G6 | 7/16 - 14 x 1 3/4" LG | 7 | |
| 25 | Rack and Pinion Unit | 70964-G01 | Complete, Includes items 26 - 37 | 1 | |
| 26 | Steering Box Installation Tag | * | 1 | ||
| 27 | Rack Extension | 70694-G01 | 1 | ||
| 28 | Jam Nut | * | 1/2 - 20 | 1 | |
| 29 | Rack Boot | 70961-G01 | 1 | ||
| 30 | Wire Tie | 12416-G2 | 1 | ||
| 31 | Clamp | 11391-G8 | 1 13/16 - 2 3/8" | 1 | |
| 32 | Pinion Seal | 70638-G01 | 1 | ||
| 33 | Rack Ball Joint | 70695-G01 | includes items 34 - 37 | 1 | |
| 34 | Rubber Boot | 50641-G1 | 1 | ||
| 35 | Castellated Nut | 50209-G2 | 7/16 - 20 | 1 | |
| 36 | Cotter Pin | 10387-G2 | 3/32" x 1" LG | 1 | |
| 37 | Grease Fitting, Straight | 10389-G3 | 1 | ||
| 38 | Bolt | 00464-G6 | 7/16 - 14 x 2 3/4" LG | 2 | |
| 39 | Bolt | 01068-G01 | 7/16 - 14 x 3 1/2" LG | 1 | |
| 40 | Spacer | 70667-G02 | 2 | ||
| 41 | Spacer | 70667-G03 | Short | 1 | |
| 42 | Nut | 00532-G7 | 7/16 - 14 | 1 | |
| 43 | Flat Washer | 00560-G2 | 7/16" | 7 | |
| 44 | Lock Nut | 00734-G1 | 7/16 -14 | 3 | |
| 45 | Steering Shaft | 70607-G01 | 1 | ||
| 46 | Steering Column Kit | 70758-G05 | includes items 47, 48 & 69 | 1 | |
| 47 | Steering Column | 70610-G03 | 1 | ||
| 48 | Steering Column Bushing | 28569-G01 | 1 | ||
| 49 | Intermediate Shaft | 70580-G01 | includes items 50, 51 | 1 | |
| 50 | Bolt | 01055-G01 | M8 x 1.25 - 05 | 2 | |
| 51 | Lock Washer | 00565-G8 | 5/16" | 2 | |
| 52 | Retaining Ring | 70751-G01 | Internal | 1 | |
| 53 | Retaining Ring | 70888-G01 | External | 1 | |
| 54 | Ball Bearing | 15112-G1 | 1 | ||
| 55 | Wave Washer | 70887-G01 | 1 | ||
| 56 | Steering Wheel | 602978 | 1 | ||
| 57 | Clipboard | 71950-G01 | 1 | ||
| 58 | Lock Nut | 14390-G2 | 5/8 - 18 | 1 | |
| 59 | Tie Rod Assembly | 70876-G02 | includes items 60 - 64 | 1 | |
| 60 | Threaded Rod | 70897-G02 | 24" LG | 1 | |
| 61 | Tie Rod End | 70902-G01 | Left hand threads | 1 | |
| 62 | Jam Nut | 01069-G01 | M12 x 1.25 - 05 (Left Hand Threads) | 1 | |
| 63 | Tie Rod End | 70902-G02 | Right Hand Thread | 1 | |
| 64 | Jam Nut | 01069-G02 | M12 x 1.25 - 05 (RIght Hand Threads) | 1 | |
| 65 | Lock Nut | 00734-G1 | 7/16 - 14 | 2 | |
| 66 | Bolt | 00463-G4 | 7/16 - 14 x 1 1/2" LG | 4 | |
| 67 | Bolt | 01006-G01 | 3/8 - 16 x 1 1/4" LG | 4 | |
| 68 | Lock Washer | 00879 -G1 | 3/8" | 4 | |
| 69 | Screw | 01022-G01 | #6 - 20 x 5/16" LG | 1 |

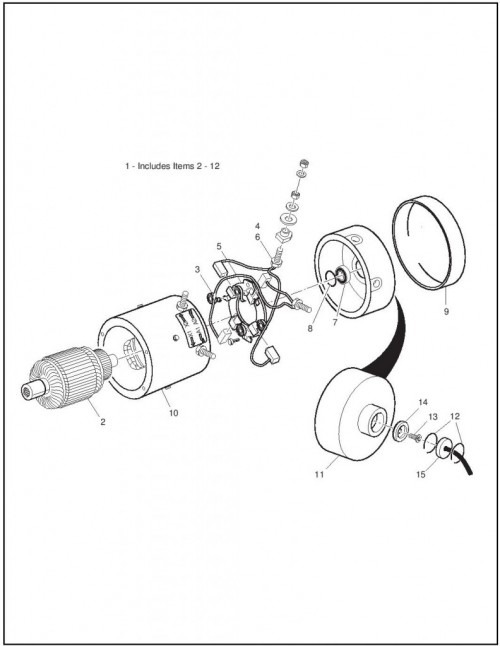

Motor
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Motor | 73291-G04 | Separately Excited, Pds, Includes items 2-12 | 1 | |
| 2 | Armature | 73120-G36 | 1 | ||
| 3 | Brush Spring | 73120-G38 | 4 | ||
| 4 | Brush | 73120-G39 | 4 | ||
| 5 | Brush Box | 73120-G40 | 1 | ||
| 6 | Brush Replacement Kit | 73120-G41 | Includes Hardware | 2 | |
| 7 | Bearing | 73120-G07 | 1 | ||
| 8 | Snap Ring | 73120-G06 | 1 | ||
| 9 | Headband | 73120-G43 | 1 | ||
| 10 | Frame and Field Coil | 73120-G37 | Includes hardware | 1 | |
| 11 | Cover Commutator End | 73120-G42 | 1 | ||
| 12 | Retaining Ring | 73277-G01 | 1 | ||
| 13 | Screw | 01037-G02 | #10 - 32 x 1/2" LG | 1 | |
| 14 | Magnet | 73328-G01 | 1 | ||
| 15 | Speed Sensor | 73327-G02 | 1 |

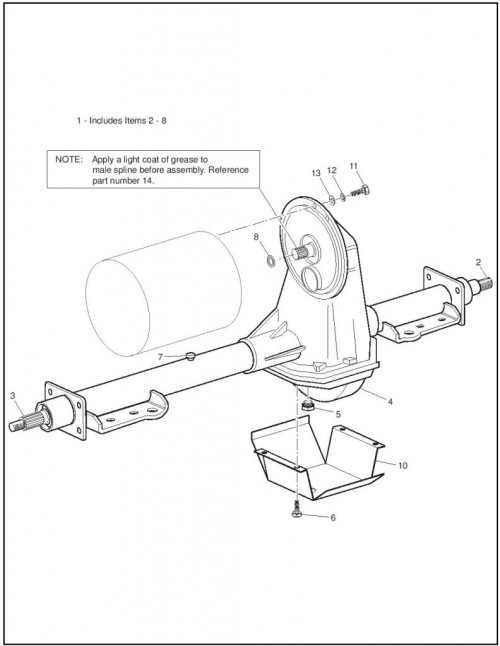

Rear Axle
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Rear Axle Assembly | 74612-G01 | 14.76:1 (Includes items 2 - 8) | 1 | |
| 2 | Axle Shaft | 20377-G12 | Passenger Side | 1 | |
| 3 | Axle Shaft | 20377-G11 | Driver Side | 1 | |
| 4 | Differential Cover | * | 1 | ||
| 5 | Fill Plug With 'O' Ring | 28610-G01 | 1 | ||
| 6 | Bolt | 15558-G1 | 5/16 - 18 x 3/4" LG | 10 | |
| 7 | Vent | 73050-G01 | 1 | ||
| 8 | O-Ring Input Shaft | 73356-P01 | 1 | ||
| 10 | Scuff Guard | 72764-G02 | 1 | ||
| 11 | Bolt | 00797-G2 | 1/4 - 20 x 1 1/4" LG | 3 | |
| 12 | Lock Washer | 00565-G7 | 1/4" (Stainless Steel) | 3 | |
| 13 | Washer | 00559-G7 | 1/4" (Stainless Steel) | 3 | |
| 14 | Grease | 27023-G01 | AR |

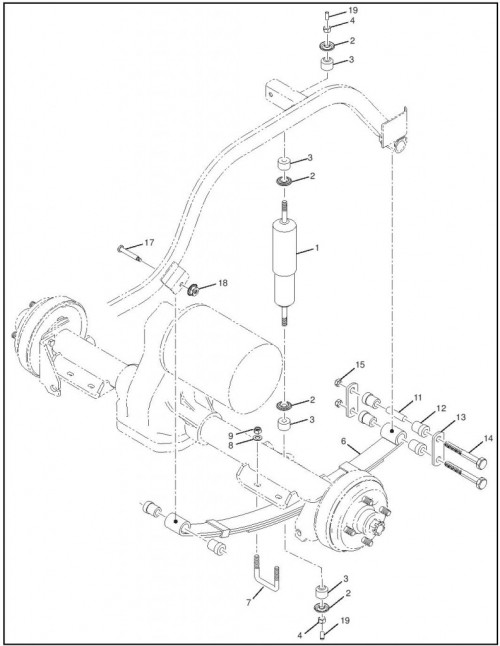

Rear Suspension
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Shock Absorber | 76418-G01 | 2 | ||
| 2 | Shock Absorber Washer | 10435-G1 | 8 | ||
| 3 | Rubber Shock Absorber Bushing | 10194-G1 | 8 | ||
| 4 | Nut | 00532-G6 | 3/8 - 24 | 4 | |
| 6 | Leaf Spring | 74207-G03 | Heavy Duty | 2 | |
| 7 | "U" Bolt | 72618-G01 | 3/8 - 16 x 2" x 2 1/2" LG | 4 | |
| 8 | Washer | 00560-G1 | 3/8" | 8 | |
| 9 | Lock Nut | 11098-G5 | 3/8 - 16 | 8 | |
| 11 | Spacer | 70289-G02 | 4 | ||
| 12 | Rubber Bushing | 70291-G01 | 12 | ||
| 13 | Shackle Plate | 70290-G02 | 4 | ||
| 14 | Bolt | 00665-G9 | 3/8 - 16 x 3 1/2" LG (Stainless Steel) | 4 | |
| 15 | Lock Nut | 11098-G5 | 3/8 - 16 | 4 | |
| 17 | Shoulder Bolt | 14158-G1 | 3/8 - 16 x 3 1/4" LG | 2 | |
| 18 | Lock Nut | 12262-G1 | 3/8 - 16 | 2 | |
| 19 | Vinyl Cap | 10044-G01 | 4 |

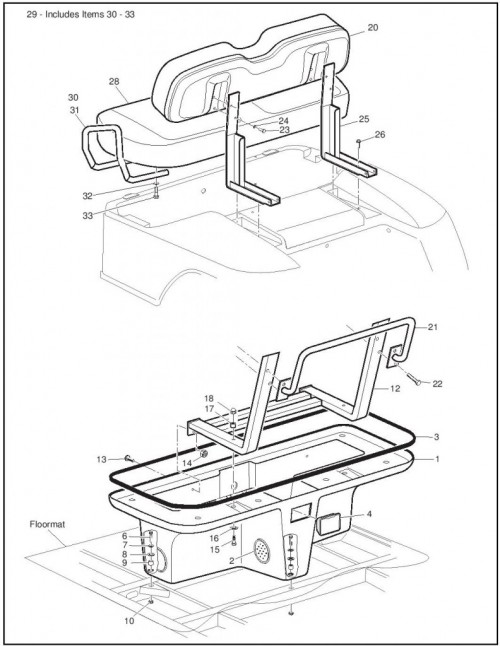

Seating
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Seat Pod | 70836-G00* | 1 | ||
| 2 | Vent Plug | 71599-G01 | 4 | ||
| 3 | Trim, Black | 32805-G6 | 1 | ||
| 4 | Ashtray | 27731-G01 | 1 | ||
| 6 | Bolt | 00439-G8 | 5/16 - 18 x 2" LG | 3 | |
| 7 | Washer | 00675-G1 | 1 1/4' x 3/8" | 3 | |
| 8 | Rubber Washer | 71883-G01 | 5/8" | 3 | |
| 9 | Spacer | 23726-G9 | 3/4" | 3 | |
| 10 | Lock Nut | 11098-G6 | 5/16 - 18 | 3 | |
| 12 | Seat Back Support | 71868 -G01 | 1 | ||
| 13 | Screw | 00976-G06 | 5/16 18 x 3/4" LG | 2 | |
| 14 | Lock Nut | 11098-G6 | 5/16 - 18 | 2 | |
| 15 | Bolt | 00427-G8 | 3/8 - 16 x 2" LG | 2 | |
| 16 | Washer | 00675-G1 | 1 1/4" x 3/8" | 2 | |
| 17 | Spacer | 23726-G4 | 5/16" | 2 | |
| 18 | Acorn Nut | 15717-G5 | 3/8 - 16 | 2 | |
| 20 | Seat Back Assembly | 71751-G** | 1 | ||
| 21 | Hand Grip | 71632-G01 | 1 | ||
| 22 | Bolt | 71204-G02 | 1/4 - 20 x 2" LG | 4 | |
| 23 | Bolt | 00414-G8 | 1/4 - 20 x 1" LG | 4 | |
| 24 | Lock Washer | 00565-G7 | 1/4" | 4 | |
| 25 | Seat Back Support | 74137-G01 | 2 | ||
| 26 | Bolt | 01006-G02 | 3/8 - 16 x 1 1/4" LG | 4 | |
| 28 | Seat Bottom | 71651-G** | 1 | ||
| 29 | Hand Hold Kit | 71646-G01 | includes items 30 - 33 | 1 | |
| 30 | Hip Restraint, Rear Seat | 71876-G02 | Driver Side | 1 | |
| 31 | Hip Restraint, Rear Seat | 71876-G01 | Passenger Side | 1 | |
| 32 | Washer | 00559-G7 | 1/4" | 8 | |
| 33 | Bolt | 00415-G2 | 1/4 - 20 x 1 1/4" LG | 8 |

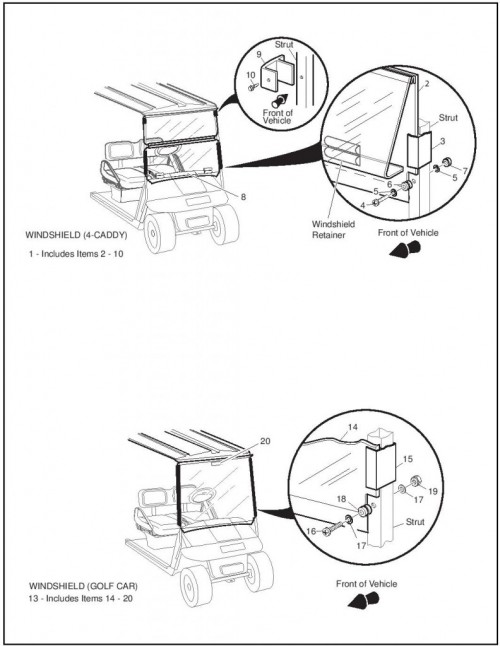

Weather Protection
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Windshield Kit, Split, Clear, 4-Caddy | 75525G02 | includes items 2 10 | ||
| 2 | Windshield Kit, Split, Clear, 4-Caddy | E4WSX03 | 4-Caddy | ||
| 3 | Sash | EGWHC10 | 12" | ||
| 4 | Screw | EGWHS12 | 1/4 - 20 x 1 3/4" LG, (Stainless Steel) | ||
| 5 | Washer | EGWHW12 | 1/4" (Stainless Steel) | ||
| 6 | Rubber Grommet | EGWHG13 | |||
| 7 | Lock Nut | EGWHN12 | 1/4 - 20 (Stainless Steel) | ||
| 8 | Safety Label | EGWHL14 | |||
| 9 | Top Grid | 137-011 | 1" x 2" | ||
| 10 | Top Grid Fastener | 136-008 | |||
| 13 | Windshield Kit, Flat - Clip On Clear | 75524G01 | includes items 14 - 20 | ||
| 14 | Windshield | EGWFX03 | Golf Car | ||
| 15 | Sash | EGWHC12 | 26" LG | ||
| 16 | Screw | EGWHS12 | 1/4 - 20 x 1 3/4" LG (Stainless Steel) | ||
| 17 | Washer | EGWHW12 | 1/4" (Stainless Steel) | ||
| 18 | Rubber Grommet | EGWHG13 | |||
| 19 | Lock Nut | EGWHN12 | 1/4 - 20 (Stainless Steel) | ||
| 20 | Safety Label | EGWHL14 | |||

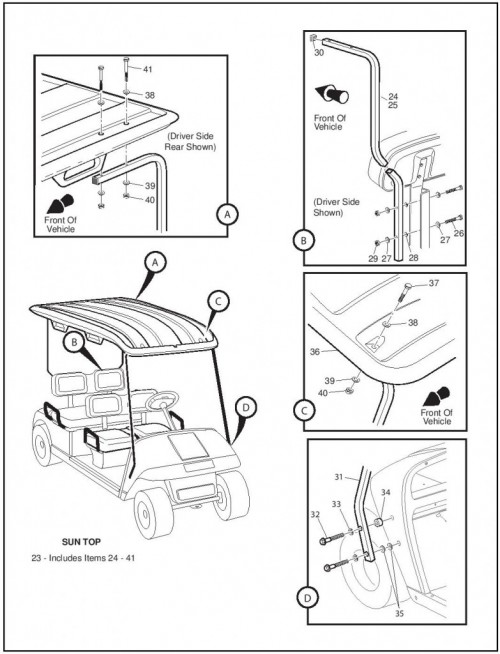

| 23 | Sun Top Kit | 75485-G01 | includes items 24 - 41 | ||
| 24 | Rear Support | 75487-G02 | Driver side | ||
| 25 | Rear Support | 75487-G01 | Passenger side | ||
| 26 | Bolt | 00665-G5 | 3/8 - 16 x 1 3/4" LG (Stainless Steel) | ||
| 27 | Washer | 00679-G1 | 3/8" (Stainless Steel) | ||
| 28 | Nylon Washer | 00771-G5 | 3/8" | ||
| 29 | Lock Nut | 00891-G5 | 3/8 - 16 | ||
| 30 | End Cap | 19853-G1 | 1" | ||
| 31 | Front Support | 75488-G01 | |||
| 32 | Bolt | 00440-G02 | 5/16 - 18 x 2 1/4" LG | ||
| 33 | Lock Washer | 00905-G8 | 5/16" | ||
| 34 | Spacer | 75048-G01 | 1/2" | ||
| 35 | Lock Washer | 00879-G1 | 3/8" | ||
| 36 | Sun Top | 74374-G01 | |||
| 37 | Bolt | 00685-G10 | 5/16 - 18 x 2 3/4" LG (Stainless Steel) | ||
| 38 | Washer | 00907-G2 | 5/16" (Stainless Steel) | ||
| 39 | Washer | 00660-G8 | 5/16" (Stainless Steel) | ||
| 40 | Lock Nut | 11098-G6 | 5/16 - 18 (Stainless Steel) | ||
| 41 | BOlt | 00685-G11 | 5/16 - 18 x 3 1/4" LG (Stainless Steel) |

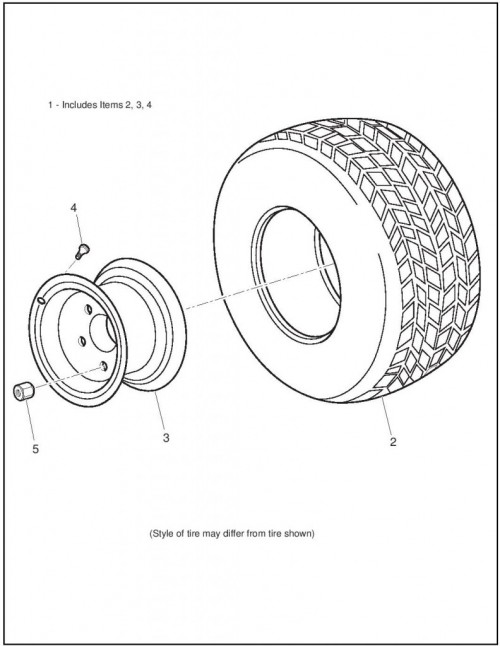

Wheels and tires
| Sl.No | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Tire and Wheel Assembly | 28757-G01 | includes items 2, 3, 4 | AR | |
| 2 | Tire | 28764-G01 | 18 x 8.50 - 8 Links | 1 | |
| 3 | Wheel Rim | 28759-G01 | 1 | ||
| 4 | Valve Stem | 11657-G2 | 1 | ||
| 5 | Lug Nut | 14723-G1 | 1/2 - 20 | AR |
Specialty Products
| s | Part Description | Part number | Notes | Quantity | Purchase |
|---|---|---|---|---|---|
| 1 | Battery Maintenance Kit | 25587-G01 | |||
| 2 | Battery Set Discharger | 28251-G01 | 36 Volt, 75 Amp | ||
| 3 | Digital Multi-Meter | 27481-G01 | |||
| 4 | E-Z-Go Restorer Fiberglass & Plastic | 606313 | |||
| 5 | E-Z-Go W/Shield And Plastic Protector | 606314 | |||
| 6 | Pen 3 Ounce - Hunter Green | 28432-G02 | 89 Ml | ||
| 7 | Pen 3 Ounce - Champagne Beige | 28432-G01 | 89 Ml | ||
| 8 | Pen 3 Ounce - White | 28432-G05 | 89 Ml | ||
| 9 | Pen 3 Ounce - Industrial Yellow | 28432-G03 | 89 Ml | ||
| 10 | Pen 3 Ounce - Orange | 28432-G04 | 89 Ml | ||
| 11 | Pen 3 Ounce - Steel Blue Pearl | 28432-G** | 89 Ml | ||
| 12 | Pen 3 Ounce - Camouflage Paint | 75831-G01 | Three Pens | 89 Ml | |
| 13 | Aerosol 12 Ounce - Hunter Green | 28140-G09 | 360 Ml | ||
| 14 | Aerosol 12 Ounce - Champagne Beige | 28140-G15 | 360 Ml | ||
| 15 | Aerosol 12 Ounce - Industrial Yellow | 28140-G14 | 360 Ml | ||
| 16 | Aerosol 12 Ounce - Steel Blue Pearl | 28140-G** | 360 Ml | ||
| 17 | Formula 40 Vinyl-Coat® - White | 28166-G01 | |||
| 18 | Plexus® Cleaner, 7 Ounce | 28433-G01 | For Windshields | 210 Ml | |
| 19 | Plexus® Cleaner, 13 Ounce | 28433-G02 | For Windshields | 380 Ml | |
| 20 | Battery Protector, 14 Ounce Spray | 75500-G01 | 410 Ml | ||
| 21 | White Lithium Grease, 14 Ounce Spray | 75502-G01 | 410 Ml | ||
| 22 | Penetrant/Lubricant, 15 Ounce Spray | 75503-G01 | 440 Ml | ||
| 23 | Multi-Purpose Cleaner & Degreaser, 14 Ounce Spray | 75504-G01 | 410 Ml | ||
| 24 | Multi-Purpose Hand Cleaner, 32 Ounce Liquid | 75505-G01 | 950 Ml | ||
| 25 | Battery Cleaner, 32 Ounce With Trigger Sprayer | 75506-G01 | 950 Ml | ||
| 26 | E-Z-Go All Surface Cleaner | 606311 | |||
| 27 | E-Z-Go Battery Terminal Protector | 606312 | |||
| 28 | Tubeless Tire Repair Kit | 606009 | |||
| 29 | Tire Plugger Refill Pack | 606831 | 50/Box | ||
| 30 | Bio-Degradeable Cleaner, 32 Ounce With Trigger Sprayer | 75507-G01 | 950 Ml | ||
| 31 | Multi-Purpose Value Pack | 75508-G01 | |||
| 32 | Battery Protector, 4 Ounce Spray | 120 Ml | |||
| 33 | Penetrant/Lubricant, 4 Ounce Spray | 120 Ml | |||
| 34 | White Lithium Grease, 4 Ounce Spray | 120 Ml | |||
| 35 | Carburetor & Choke Cleaner, 4 Ounce Spray | 120 Ml |
